The Hager 125A Surge Protection Kit Type I/II protects installations against transient overvoltages from lightning and switching operations. With a 125 A rated current, it suits main incomers in residential and commercial panels. Its combined Type I/II design delivers comprehensive, coordinated protection, enhancing equipment longevity and service continuity while saving space and easing installation.

EAN-Nr.

5015652606475

Packaging

1 piece

Distribution Accessories

Surge Protection Kit Type I/II Combined SPD 125A JK101SPD

Name: JK101SPD
Brand: Hager
SKU: JK101SPD
Price: 732.82 GBP

Price

£732.82

/ piece *

Technical characteristics
Environmental value
Documentations
More products

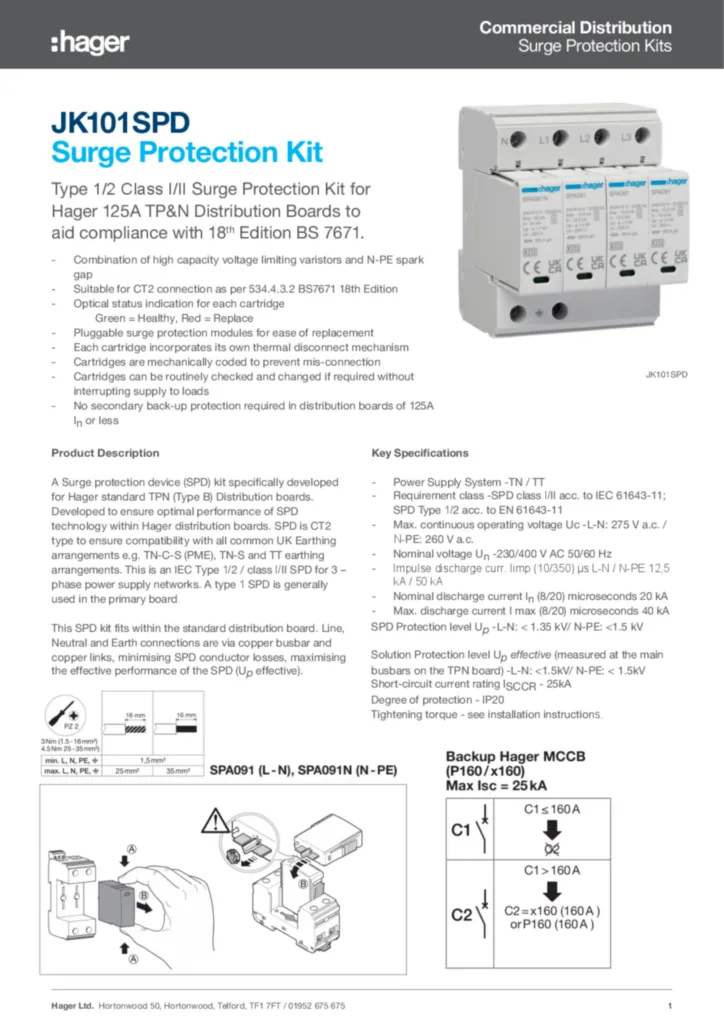

Download the sheet

Technical characteristics

Max. discharge (Imax) L-N(PEN)/ N-PE

50 kA
Max. overcurrent protection device, parallel connection (fuse)

160 A
Lightning impulse current Iimp (10/350 µs) IEC 61643 L-N(PEN)/ N-PE

12.5 kA, 50 kA

Network type

TN, TN-S

Type of connection

Screw connection

With remote signalling contact

No

Number of modules

4

Voltage protection level Up according to IEC 61643-1

1.2 kV
Continuous operating voltage Uc according to IEC 61643-1

335 V
Rated operational voltage Ue

240 - 415 V
Voltage level Up L-N/PEN IEC 61643-11

1.2 kV

Type of pole

3P+N

Operating temperature

-40 - 80 °C

Height

80 mm
Width

110 mm
Depth

145 mm

With indicator lamp

Yes

Requirement class IEC 61643

T1, T2

Cross-section of input and output with screws, for flexible conductors

1.5 - 25 mm²
Cross-section of input and output with screws, for massive conductors

1.5 - 35 mm²

Frequency

50 - 60 Hz

Ingress Protection (IP) class

IP20

With integrated protection fuse

No

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
