630A 8 Way 125A Outgoers Plain JF608B
EAN-Nr.
5015652274582
Packaging
1 piece
Price
£1,943.18
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Small equipped distribution board 4 products available -
Distributor assembly with main switch 4 products available -
Gland plate for enclosure 1 products available -
Door/operating panel 2 products available -
Blanking plate for enclosure 1 products available -
See more 5 other products available
Complete your system
-
JAB402B
Enclosed Switch Disconnector TPSN 20A
£233.29 / piece* -
JAB403B
Enclosed Switch Disconnector TPSN 32A
£280.80 / piece* -
JAB406B
Enclosed Switch Disconnector TPSN 63A
£435.82 / piece* -
JAC412B
Enclosed Switch Disconnector TPSN 125A
£766.46 / piece*
-
JF844BSW
400A 4 Pole Isolator Incomer Kit
£1,848.05 / piece* -
JF863BM
630A 3 Pole MCCB Incomer Kit
£2,367.75 / piece* -
JF864BM
630A 4 Pole MCCB Incomer Kit
£2,632.12 / piece* -
JF864BSW
630A 4 Pole Isolator Incomer Kit
£1,995.89 / piece*
-
JFPLATE
Spare Endplate for JF boards
£67.62 / piece*
-
JF805DK
Small Spreader Box Door Kit
£410.62 / piece* -
JF806DK
Large Extension Box Door Kit
£429.95 / piece*
-
JF003BP
3 Pole Blanking Plate 250A Frame
£23.31 / piece*
-
JF12504SM6/8 Way Side Extension Encl DIN 96 x 4
£848.29 / piece* -
JF801ESmall DIN Rail Box Plain
£333.45 / piece* -
JF803E
large DIN Rail Box Plain
£406.44 / piece*
-
JN001BPSingle Pole Blank 125A Frame
£12.83 / piece*
-
JK222PKJK1/JK2 Door Lock Kit
£24.66 / piece*
Technical characteristics
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current630 A
Equipment
-
With lockYes
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
Dimensions
-
Height1,250.00 mm
-
Width900 mm
-
Depth220 mm
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class III
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP30
-
Locking typeBarrel lock, Key lock
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Installation manual
UK_HAGER_INS_ZD0741
Installation manual en-GB 2023-01-25
PDF3,15 MB -
BIM Revit objects
Panelboard Invicta 3 (630A-800A Inc 125A Out)$ -Revit Family 2020 hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,08 MB
Panelboard Invicta 3 (630A-800A Inc 125A Out)$ -Revit Family 2020 no hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,07 MB
Range : Panelboards. Switchboard IP30. English - Hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,09 MB
Range : Panelboards. Switchboard IP30. English - Non hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,07 MB -

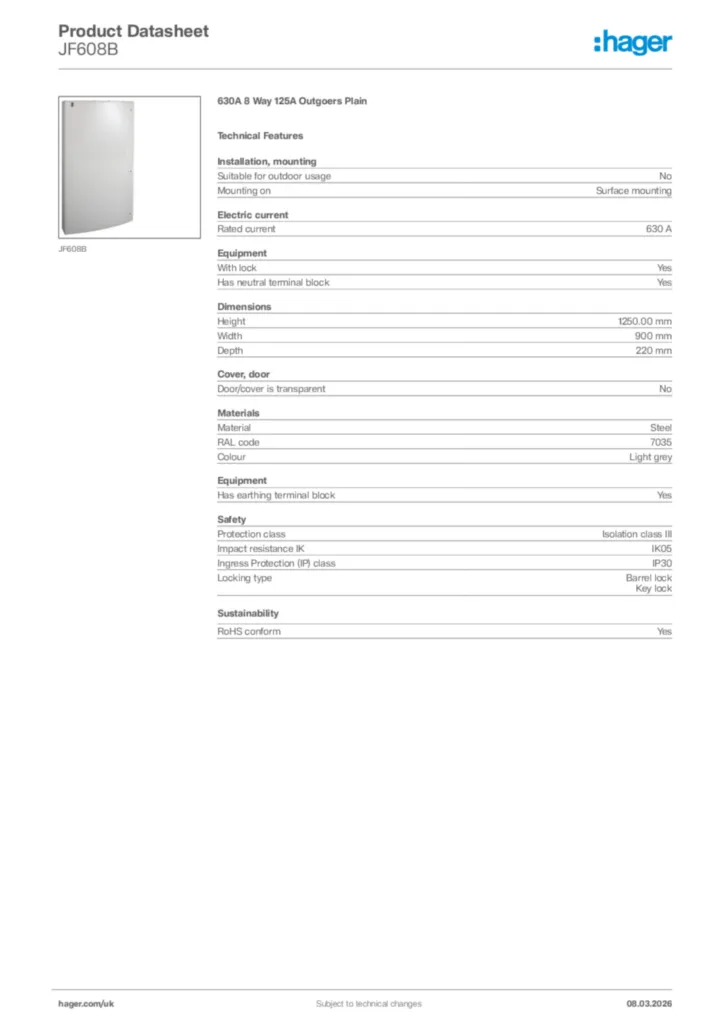

Product data sheet
UK_INVICTA_630A_800A_Panelboard.pdf
Product data sheet en-GB 2018-08-20
PDF183,92 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-11-10
PDF174,21 kB
Declaration
Declaration of conformity International 2022-07-06
PDF145,02 kB
Declaration
Declaration of conformity International 2021-07-14
PDF141,22 kB
