Moulded Case Circuit Breaker h3+ P250 Energy 3P3D 160A 70kA FTC HET160NR
EAN-Nr.
3250613141752
Packaging
1 piece
Price
£1,748.91
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliaries data cable adaptor 1 products available -
Shunt release 5 products available -
Under voltage coil 8 products available -
Locking interlocking functions 5 products available -
Auxiliaries interlocking cable 2 products available -
See more 46 other products available
Complete your system
-
HTC160H
NSP cable adaptor length 1,20 m
£68.62 / piece*
-
HXA001H
Shunt trip 24V DC (x160-P160-x250-P250-x630-P630)
£142.56 / piece* -
HXA002HShunt trip 48V DC (x160-P160-x250-P250-x630-P630)
£136.93 / piece* -
HXA003HShunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
£247.02 / piece* -
HXA004HShunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
£244.69 / piece* -
HXA005HShunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
£185.68 / piece*
-
HXA011H
Undervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
£140.31 / piece* -
HXA013HUndervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
£151.55 / piece* -
HXA014HUndervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
£171.96 / piece* -
HXA015HUndervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA051HUVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA053HUVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA054HUVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA055HUVR delayed 380-450V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece*
-
HXA039H
Padlock (x160-P160-x250-P250-x630)
£20.60 / piece* -
HXB070HInterlock mechanical cable 1.0m (P160-x250-h250-h400-h630-h800-h1000)
£96.56 / piece* -
HXB071HInterlock mechanical cable 1.5m (P160-x250-h250-h400-h630-h800-h1000)
£101.51 / piece* -
HXT066HMechanical interlocking front cover P250
£61.77 / piece* -
HXT165HDirect interlocking kit P250 3P
£54.90 / piece*
-
HXS120HAX/AL Energy Counter
£284.78 / piece* -
HXS121HAX/AL Auxiliary contact Energy 250VAC 125VDC
£274.48 / piece* -
HXS122HAX/AL Energy - low level 125VAC 30VDC
£274.48 / piece*
-
HXT030HDirect rotary handle for P250
£96.07 / piece*
-
HXT031HRotary handle on door P250
£173.33 / piece*
-
HXT032HDirect rotary handle P250 with interlocking
£137.24 / piece*
-
HXT040HMotor Operator P250 24VDC with Auto-Reset
£1,166.53 / piece* -
HXT040HKMotor Operator P250 24VDC with Auto-Reset + key
£1,283.18 / piece* -
HXT041HMotor Operator P250 100-110VAC/DC with Auto-Reset
£1,142.52 / piece* -
HXT041HKMotor Operator P250 100-110VAC/DC with Auto-Reset + key
£1,245.45 / piece* -
HXT042HMotor Operator P250 230-240VAC with Auto-Reset
£1,142.52 / piece* -
HXT042HKMotor Operator P250 230-240VAC with Auto-Reset + key
£1,245.45 / piece* -
HXT043HMotor Operator P250 24VDC without Auto-Reset
£1,152.80 / piece* -
HXT043HKMotor Operator P250 24VDC without Auto-Reset + key
£1,269.46 / piece* -
HXT044HMotor Operator P250 230-240VAC without Auto-Reset
£1,142.52 / piece* -
HXT044HKMotor Operator P250 230-240VAC without Auto-Reset + key
£1,245.45 / piece* -
HXT045HMotor Operator P250 200-220VAC/DC with Auto-Reset
£1,152.80 / piece* -
HXT045HKMotor Operator P250 200-220VAC/DC with Auto-Reset +key
£1,245.45 / piece* -
HXT046HMotor Operator P250 100-110VAC/DC without Auto-Reset
£1,152.80 / piece* -
HXT046HKMotor Operator P250 100-110VAC/DC without Auto-Reset + key
£1,245.45 / piece* -
HXT047HMotor Operator P250 200-220VAC/DC without Auto-Reset
£1,152.80 / piece* -
HXT047HKMotor Operator P250 200-220VAC/DC without Auto-Reset +key
£1,245.45 / piece* -
HXT048HMotor Operator P250 48VDC with Auto-Reset
£1,152.80 / piece* -
HXT048HKMotor Operator P250 48VDC with Auto-Reset +key
£1,269.46 / piece* -
HXT049HMotor Operator P250 48VDC without Auto-Reset
£1,152.80 / piece* -
HXT049HKMotor Operator P250 48VDC without Auto-Reset +key
£1,269.46 / piece*
-
HYA035HConnecting kit 3P/4P
£32.36 / piece*
-
HYB011HSpreader (x/P250-P250) 3P
£72.06 / piece* -
HYB031HRear connection (x/P250-P250) - 3P
£81.62 / piece* -
HYT001HCage terminal P250 cage version Cu/Al 3P 1x 10-150mm²
£51.47 / piece* -
HYT005HCage terminal P250 cage version Al 3P 1x 50-185mm²
£174.98 / piece* -
HYT007HCage terminal P250 cage version Cu/Al 3P 2x 35-120mm²
£212.72 / piece* -
HYT065HCage terminal P250 cage version Cu/Al 3P 6x 6-35mm²
£308.79 / piece* -
HYT328HL connection terminal Plug-in (P250-h250) 1P
£48.04 / piece*
-
HYS256HSafety trip (P160-P250)
£68.62 / piece*
-
HYT019HInterphase barrier for P250 3/4P
£13.73 / piece*
-
HYT200HPlug-in base for P250 3P
£285.48 / piece* -
HYT300HPlug-in adaptor for P250 3P
£130.38 / piece* -
HYT330HDraw-out base for P250 3P
£240.17 / piece* -
HYT332HDraw-out adaptor for MCCB P250 3P
£312.22 / piece*
-
HYC321HPM Terminal Cover Base Plug In (P250-h250) LSI 3P
£49.90 / piece* -
HYT021HTerminal cover for Straight terminal extension P250 3P
£44.62 / piece* -
HYT023HTerminal cover for Spread terminal extension P250 3P
£54.90 / piece* -
HYT025HTerminal cover for Rear & Plug-in connection P250 3P
£41.18 / piece* -
HYT050HEarth plate for Straight terminal extension P250 3P
£54.90 / piece* -
HYT052HEarth plate for Spread terminal extension P250 3P
£54.90 / piece*

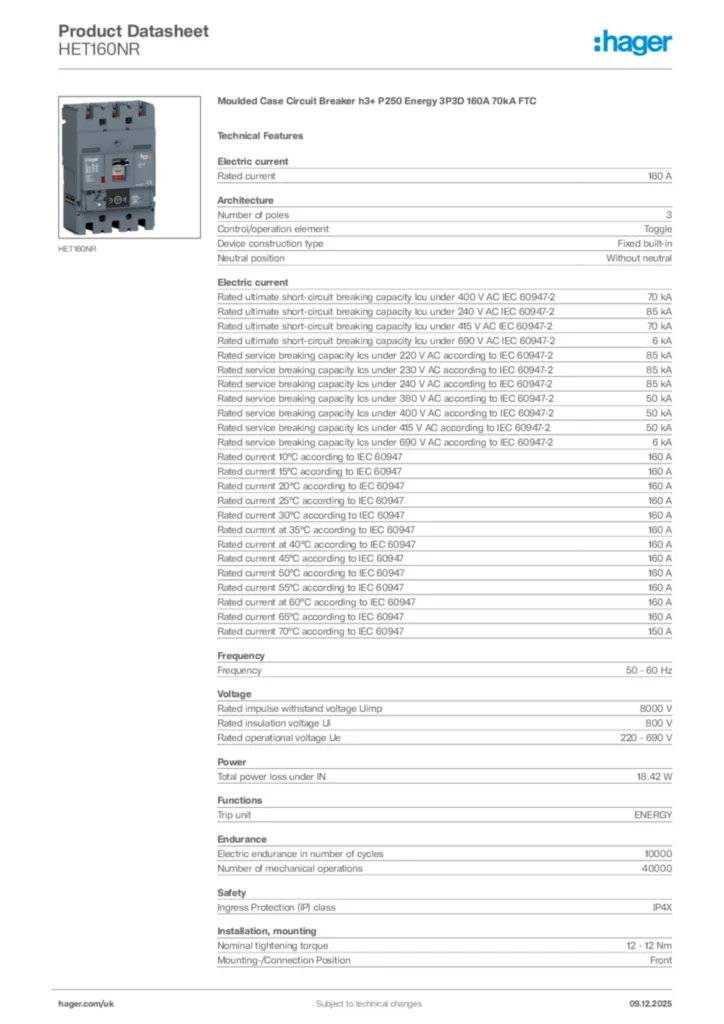

Technical characteristics
Electric current
-
Rated current160 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-270 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-285 kA
-
Rated ultimate short-circuit breaking capacity Icu under 415 V AC IEC 60947-270 kA
-
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-26 kA
-
Rated service breaking capacity Ics under 220 V AC according to IEC 60947-285 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-285 kA
-
Rated service breaking capacity Ics under 240 V AC according to IEC 60947-285 kA
-
Rated service breaking capacity Ics under 380 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 415 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 690 V AC according to IEC 60947-26 kA
-
Rated current 10°C according to IEC 60947160 A
-
Rated current 15°C according to IEC 60947160 A
-
Rated current 20°C according to IEC 60947160 A
-
Rated current 25°C according to IEC 60947160 A
-
Rated current 30°C according to IEC 60947160 A
-
Rated current at 35°C according to IEC 60947160 A
-
Rated current at 40°C according to IEC 60947160 A
-
Rated current 45°C according to IEC 60947160 A
-
Rated current 50°C according to IEC 60947160 A
-
Rated current 55°C according to IEC 60947160 A
-
Rated current at 60°C according to IEC 60947160 A
-
Rated current 65°C according to IEC 60947160 A
-
Rated current 70°C according to IEC 60947150 A
Architecture
-
Number of poles3
-
Control/operation elementToggle
-
Device construction typeFixed built-in
-
Neutral positionWithout neutral
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8,000 V
-
Rated insulation voltage Ui800 V
-
Rated operational voltage Ue220 - 690 V
Functions
-
Trip unitENERGY
Power
-
Total power loss under IN18.42 W
Endurance
-
Electric endurance in number of cycles10,000
-
Number of mechanical operations40,000
Installation, mounting
-
Nominal tightening torque12 - 12 Nm
-
Mounting-/Connection PositionFront
Safety
-
Ingress Protection (IP) classIP4X
Connection
-
Cross-section flexible conductor35 - 150 mm²
-
Cross-section rigid conductor35 - 185 mm²
Cover, door
-
InterlockableYes
Cable
-
Cable materialCopper, Aluminium
Compatibility
-
Compatible with RDC AOBNo
-
Suitable for DIN RailNo
-
Suitable for distribution boardYes
Dimensions
-
Height165 mm
-
Width105 mm
-
Depth97 mm
Settings
-
Adjustment range short-term delayed short-circuit release94.5 - 1,600.0 A
Electrical protection
-
Long-time overload protection (ltd): delay (tr)0.5 s, 1.5 s, 2.5 s, 5 s, 7.5 s, 9 s, 10 s, 12 s, 14 s, 16 s
-
Short-time protection (std): current (Isd)1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10
-
Short-time protection (std): delay (tsd)50 ms, 100 ms, 200 ms, 300 ms, 400 ms
-
Instantaneous protection (li): dial setting coefficient3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11
