Moulded Case Circuit Breaker h3+ P160 Energy 4P4D N0-50-100% 160A 70kA CTC HES161NC
EAN-Nr.
3250613141288
Packaging
1 piece
Price
£2,787.79
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Shunt release 5 products available -
Under voltage coil 8 products available -
Locking interlocking functions 5 products available -
Handle for power circuit breaker 1 products available -
Door coupling handle 1 products available -
See more 22 other products available
Complete your system
-
HXA001H
Shunt trip 24V DC (x160-P160-x250-P250-x630-P630)
£142.56 / piece* -
HXA002HShunt trip 48V DC (x160-P160-x250-P250-x630-P630)
£136.93 / piece* -
HXA003HShunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
£247.02 / piece* -
HXA004HShunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
£244.69 / piece* -
HXA005HShunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
£185.68 / piece*
-
HXA011H
Undervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
£140.31 / piece* -
HXA013HUndervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
£151.55 / piece* -
HXA014HUndervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
£171.96 / piece* -
HXA015HUndervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA051HUVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA053HUVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA054HUVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece* -
HXA055HUVR delayed 380-450V AC (x160-P160-x250-P250-x630-P630)
£643.52 / piece*
-
HXA039H
Padlock (x160-P160-x250-P250-x630)
£20.60 / piece* -
HXB070HInterlock mechanical cable 1.0m (P160-x250-h250-h400-h630-h800-h1000)
£96.56 / piece* -
HXB071HInterlock mechanical cable 1.5m (P160-x250-h250-h400-h630-h800-h1000)
£101.51 / piece* -
HXS066HMechanical interlocking front cover P160
£68.62 / piece* -
HXS166HDirect interlocking kit P160 4P
£75.48 / piece*
-
HXS030H
Direct rotary handle for P160
£82.35 / piece*
-
HXS031H
Rotary handle on door for P160
£197.13 / piece*
-
HXS032HDirect rotary handle P160 with interlocking
£144.11 / piece*
-
HXS120HAX/AL Energy Counter
£284.78 / piece* -
HXS121HAX/AL Auxiliary contact Energy 250VAC 125VDC
£274.48 / piece* -
HXS122HAX/AL Energy - low level 125VAC 30VDC
£274.48 / piece*
-
HYA035HConnecting kit 3P/4P
£32.36 / piece*
-
HYS002HCage terminal P160 cage version Cu/Al 4P 1x 10-95mm²
£51.47 / piece* -
HYS006HCage terminal P160 cage version Al 4P 1x35-120mm²
£72.06 / piece* -
HYS013HStraight terminal extension P160 4P cage version
£68.62 / piece* -
HYS015HSpread terminal extension P160 4P cage version
£72.06 / piece* -
HYS132HRear connection for P160 4P (63-160A)
£80.64 / piece* -
HYS328HL connection terminal Plug-in P160 1P
£30.89 / piece*
-
HYS019HInterphase barrier for P160 3/4P
£15.45 / piece*
-
HYS033HDIN Rail adaptator P160 3P/4P
£27.45 / piece*
-
HYS201HPlug-in base for P160 4P
£277.92 / piece* -
HYS301HPlug-in adaptor for P160 4P (63-160A)
£154.40 / piece*
-
HYS256HSafety trip (P160-P250)
£68.62 / piece*
-
HYS022HTerminal cover for Straight terminal extension P160 4P
£48.04 / piece* -
HYS024HTerminal cover for Spread terminal extension P160 4P
£58.34 / piece* -
HYS026HTerminal cover for Rear & Plug-in connection P160 4P
£41.18 / piece* -
HYS051HEarth plate for Straight terminal extension P160 4P
£41.18 / piece* -
HYS053HEarth plate for Spread terminal extension P160 4P
£41.18 / piece* -
HYS322HTerminal cover for Plug-in base P160 4P
£48.04 / piece*

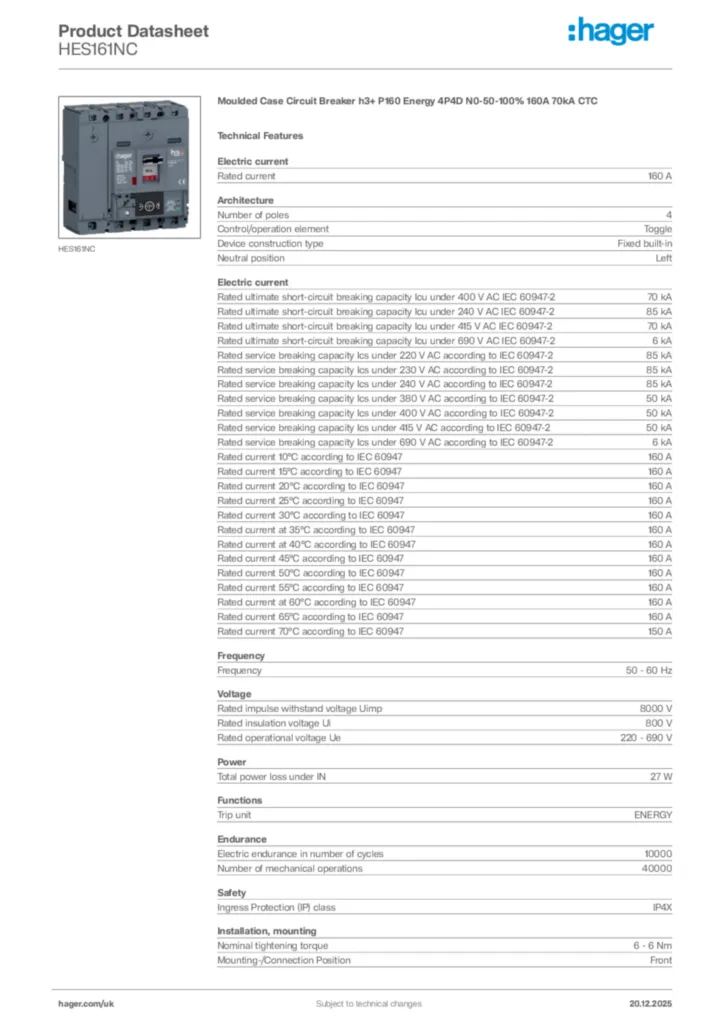

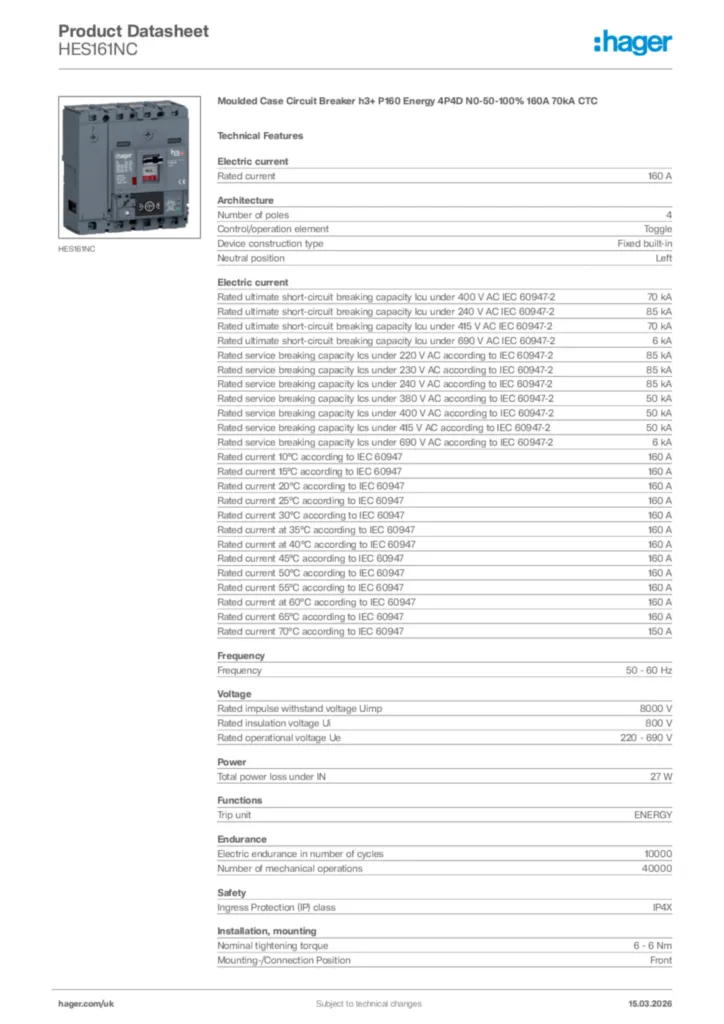

Technical characteristics
Electric current
-
Rated current160 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-270 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-285 kA
-
Rated ultimate short-circuit breaking capacity Icu under 415 V AC IEC 60947-270 kA
-
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-26 kA
-
Rated service breaking capacity Ics under 220 V AC according to IEC 60947-285 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-285 kA
-
Rated service breaking capacity Ics under 240 V AC according to IEC 60947-285 kA
-
Rated service breaking capacity Ics under 380 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 415 V AC according to IEC 60947-250 kA
-
Rated service breaking capacity Ics under 690 V AC according to IEC 60947-26 kA
-
Rated current 10°C according to IEC 60947160 A
-
Rated current 15°C according to IEC 60947160 A
-
Rated current 20°C according to IEC 60947160 A
-
Rated current 25°C according to IEC 60947160 A
-
Rated current 30°C according to IEC 60947160 A
-
Rated current at 35°C according to IEC 60947160 A
-
Rated current at 40°C according to IEC 60947160 A
-
Rated current 45°C according to IEC 60947160 A
-
Rated current 50°C according to IEC 60947160 A
-
Rated current 55°C according to IEC 60947160 A
-
Rated current at 60°C according to IEC 60947160 A
-
Rated current 65°C according to IEC 60947160 A
-
Rated current 70°C according to IEC 60947150 A
Architecture
-
Number of poles4
-
Control/operation elementToggle
-
Device construction typeFixed built-in
-
Neutral positionLeft
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8,000 V
-
Rated insulation voltage Ui800 V
-
Rated operational voltage Ue220 - 690 V
Functions
-
Trip unitENERGY
Power
-
Total power loss under IN27 W
Endurance
-
Electric endurance in number of cycles10,000
-
Number of mechanical operations40,000
Installation, mounting
-
Nominal tightening torque6 - 6 Nm
-
Mounting-/Connection PositionFront
Safety
-
Ingress Protection (IP) classIP4X
Connection
-
Cross-section flexible conductor6 - 70 mm²
-
Cross-section rigid conductor6 - 95 mm²
Cover, door
-
InterlockableYes
Cable
-
Cable materialCopper
Compatibility
-
Compatible with RDC AOBNo
-
Suitable for DIN RailNo
-
Suitable for distribution boardYes
Dimensions
-
Height130 mm
-
Width120 mm
-
Depth97 mm
Connectivity
-
Type of connectionScrew terminal
Settings
-
Adjustment range short-term delayed short-circuit release94.5 - 1,600.0 A
Electrical protection
-
Long-time overload protection (ltd): delay (tr)0.5 s, 1.5 s, 2.5 s, 5 s, 7.5 s, 9 s, 10 s, 12 s, 14 s, 16 s
-
Short-time protection (std): current (Isd)1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10
-
Short-time protection (std): delay (tsd)50 ms, 100 ms, 200 ms, 300 ms, 400 ms
-
Instantaneous protection (li): dial setting coefficient3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Operating manual
Operating manual International 2020-09-21
PDF13,53 MB -
Instruction manual
Manual for moulded case circuit breaker h3+ P160 (Date: 2020-03)
Instruction manual International 2016-03-09
PDF4,40 MB
Manual for moulded case circuit breaker h3+ P160 (Date: 2023-03)
Instruction manual International 2023-03-08
PDF7,44 MB -
Installation manual
Installation manual International 2019-10-24
PDF2,93 MB -
STEP files
CAD file for MCCB 160A 4P
STEP files International 2023-09-04
STP1014,02 kB -
Handbook
Handbook International 26-08-2024
Handbook International 2019-10-09
PDF48,75 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-02-01
PDF300,00 kB
