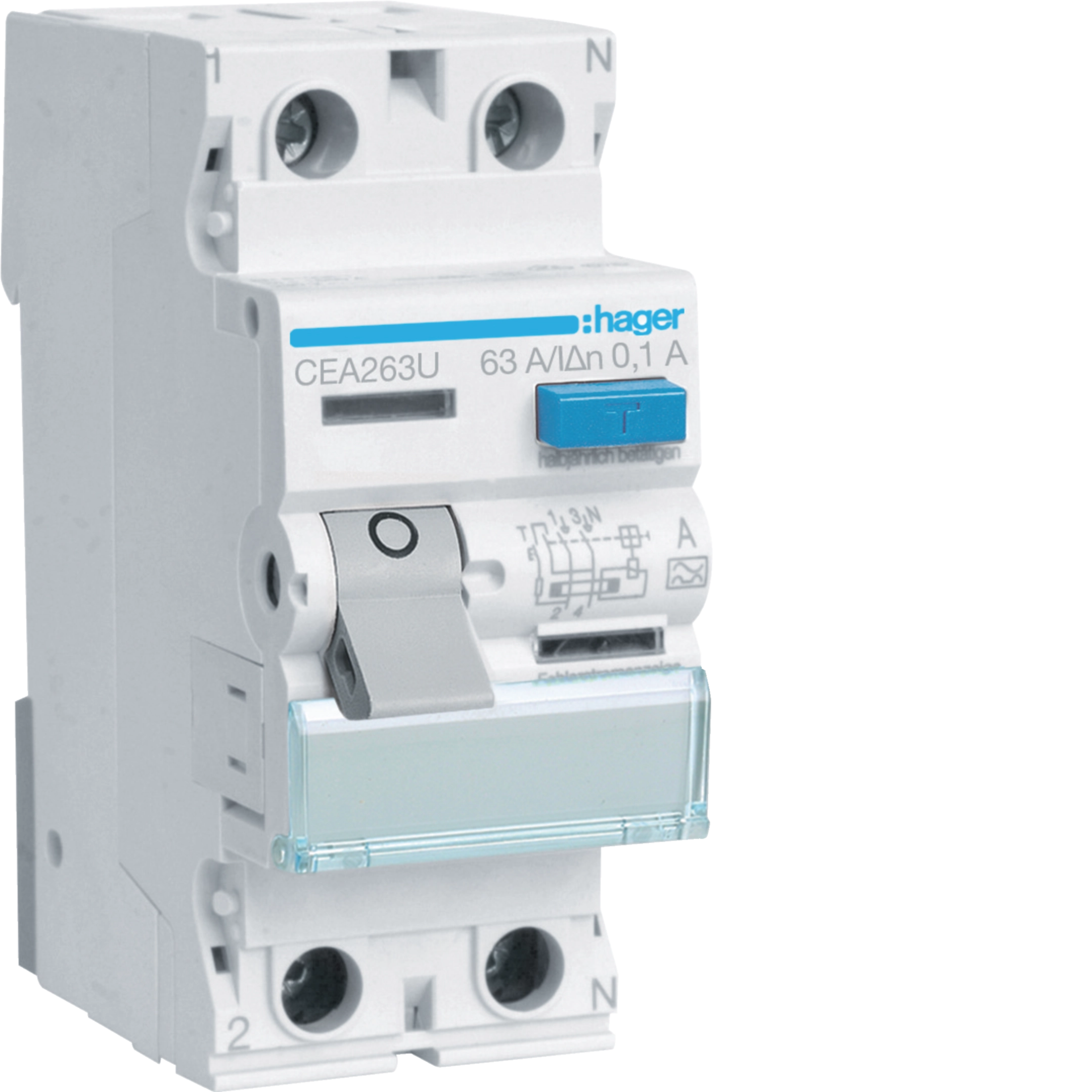

The Hager RCCB 2P 63A 100mA Type A provides reliable residual current protection against electric shock and fire, detecting AC and pulsating DC faults. Rated 63A at 230V AC with 100mA sensitivity, ideal for residential and commercial circuits. Features 6kA Inc, 1.5kA Idm, IP20, 2 DIN modules (35 mm). Screw/biconnect terminals for 1-25 mm² conductors, 2.8 Nm torque. Compact design optimizes panel space.

EAN-Nr.

3250611614548

Packaging

1 piece

Residual current circuit breakers (RCCB)

RCCB 1P+N 63A 100mA Type A 6kA 230V 2 Modules CEA263U

Name: CEA263U
Brand: Hager
SKU: CEA263U2
Price: 203.79 GBP

Price

£203.79

/ piece *

Accessories
Technical characteristics
Environmental value
Documentations
More products

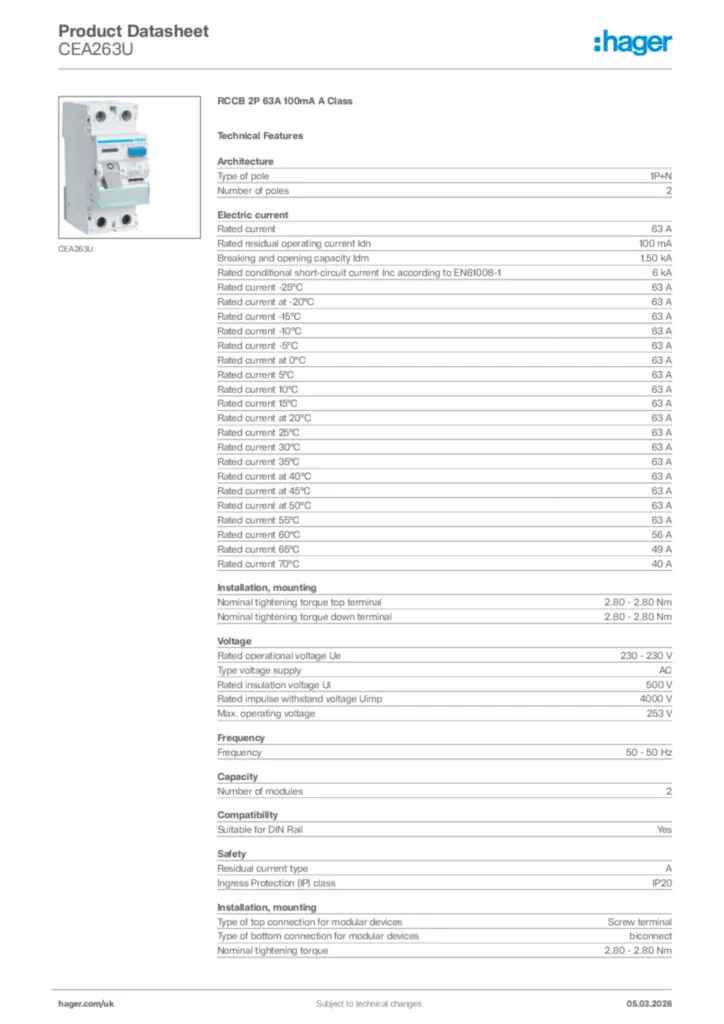

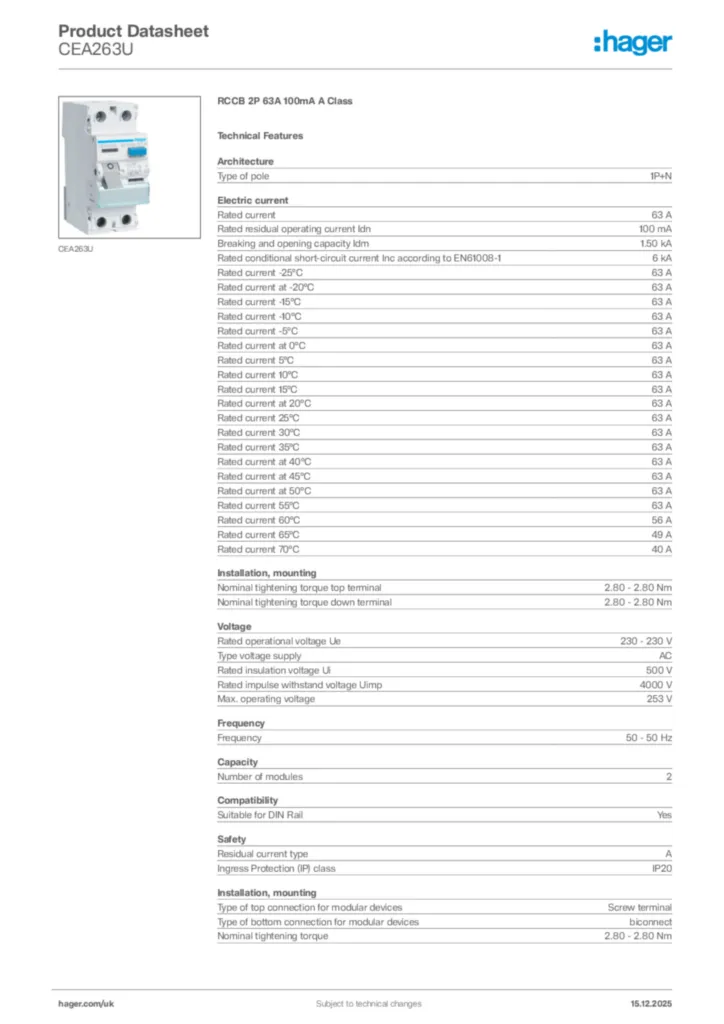

Download the sheet

Complete your system

Locking interlocking functions 2 products available
Mechanic accessories for low-voltage components 1 products available
Auxiliaries contact block 1 products available
Shunt release 2 products available
Under voltage coil 1 products available

Technical characteristics

Type of pole

1P+N
Number of poles

2

Rated current

63 A
Rated residual operating current Idn

100 mA
Breaking and opening capacity Idm

1.50 kA
Rated conditional short-circuit current Inc according to EN61008-1

6 kA
Rated current -25°C

63 A
Rated current at -20°C

63 A
Rated current -15°C

63 A
Rated current -10°C

63 A
Rated current -5°C

63 A
Rated current at 0°C

63 A
Rated current 5°C

63 A
Rated current 10°C

63 A
Rated current 15°C

63 A
Rated current at 20°C

63 A
Rated current 25°C

63 A
Rated current 30°C

63 A
Rated current 35°C

63 A
Rated current at 40°C

63 A
Rated current at 45°C

63 A
Rated current at 50°C

63 A
Rated current 55°C

63 A
Rated current 60°C

56 A
Rated current 65°C

49 A
Rated current 70°C

40 A

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect
Nominal tightening torque

2.80 - 2.80 Nm

Rated operational voltage Ue

230 - 230 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4,000 V
Max. operating voltage

253 V

Frequency

50 - 50 Hz

Number of modules

2

Suitable for DIN Rail

Yes

Residual current type

A
Ingress Protection (IP) class

IP20

Cross-section of output with screws, for massive conductors

1 - 25 mm²
Cross-section of output with screws, for flexible conductors

1 - 16 mm²
Cross-section flexible conductor

1 - 16 mm²
Cross-section rigid conductor

1 - 25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²

Total power loss under IN

8.70 W

Max. altitude

2,000 m
Operating temperature

-25 - 40 °C

Electric endurance in number of cycles

2,000
Number of mechanical operations

4,000

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

35 mm
Depth

70 mm
