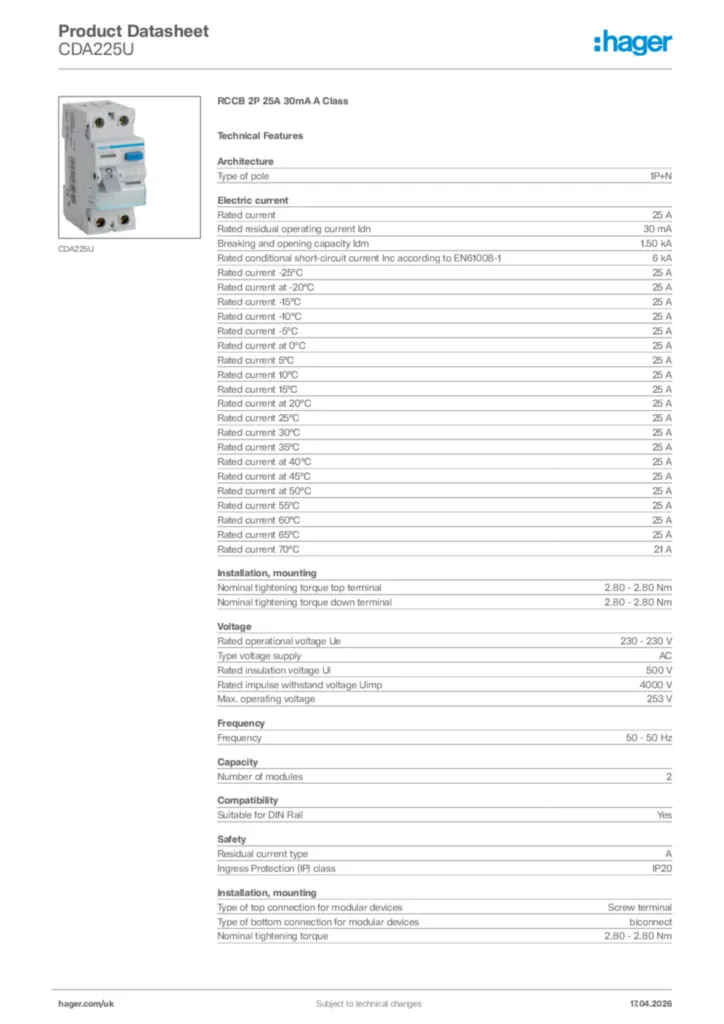

CDA225U

RCCB 2P 25A 30mA A Class
EAN
3250611614890
Quantity
1
Trade price*
£149.74 /prt.*
More Information
Protection index IPIP20
With transparent product label holderNo
Rated conditional short-circuit current Inc according to EN 61008-16 kA
Depth of installed product70 mm
Power loss per pole at In1.23 W
Protected against nuisance trippingNo
Rated current25 A
Total power loss under IN2.32 W
CE marking on labelAI2_B5_CE_01.JPG
Width of installed product35 mm
Withstand not tripping on 8-20 μs wave0.25 kA
360° product mounting positionYes
Rated residual operating current30 mA
Neutral positionright
Quantity of half modules of 17,7mm4
Breaking and opening capacity1.5 kA
Height of installed product83 mm
Frequency50 Hz
Frequency (range for ETIM)50 Hz
Short-time delayed trippingNo
Operating temperature-25/40 °C
Residual current trip modeUndelayed
Degree of pollution according to IEC 60664 / IEC 60947-22
Tightening torque2,8Nm
Construction size (DIN 43880)1
Fixing modeDin-Rail
Rating current 30°C25 A
Rated impulse withstand voltage4000 V
Operating temperature-25/40 °C
Altitude2000 m
Number of modules2
Rated insulation voltage500 V
Rated operational voltage Ue230 V
Residual current typeA
Type of connectionwith screw
Number of mechanical operations4000
European directive WEEEconcerned
Storage temperature-55/70 °C
Standard textBS 61008-1 ; EN 61008-1
Storage/transport temperature-55/70 °C
Connection cross-section of the access with screws, with flexible conductor1 / 16 mm²
Connection cross-sect. flexible conductor16mm²
Number of poles2 P
Electric endurance in number of cycles2000
Connection cross section of access and exit with screws, for flexible conductor1 / 16 mm²
Connection cross-section for rigid conductor, upstream terminals with screws1 / 25 mm²
Connection cross-section at output with screw, for massive conductor1 / 25 mm²
Connection cross-sect. rigid cable25mm²
Bottom removability for modular devicesNo
Rating current 0°C25 A
Rating current -10°C25 A
Rating current 10°C25 A
Rating current -15°C25 A
Rating current 15°C25 A
Rating current -20°C25 A
Rating current 20°C25 A
Rating current -25°C25 A
Rating current 25°C25 A
Rating current 35°C25 A
Rating current 40°C25 A
Rating current 45°C25 A
Rating current -5°C25 A
Rating current 50°C25 A
Rating current 5°C25 A
Rating current 55°C25 A
Rating current 60°C25 A
Rating current 65°C25 A
Rating current 70°C21 A
SealableYes
Top removability for modular devicesNo
Type of Bottom Connection for modular devicesBIconnect
Type of bottom rail clip for modular devicesmetallic
Type of top connection for modular deviceswith screw
Type of top rail clip for modular devicesNA
EAN3250611614890
UnitPCE
Sales status3C
