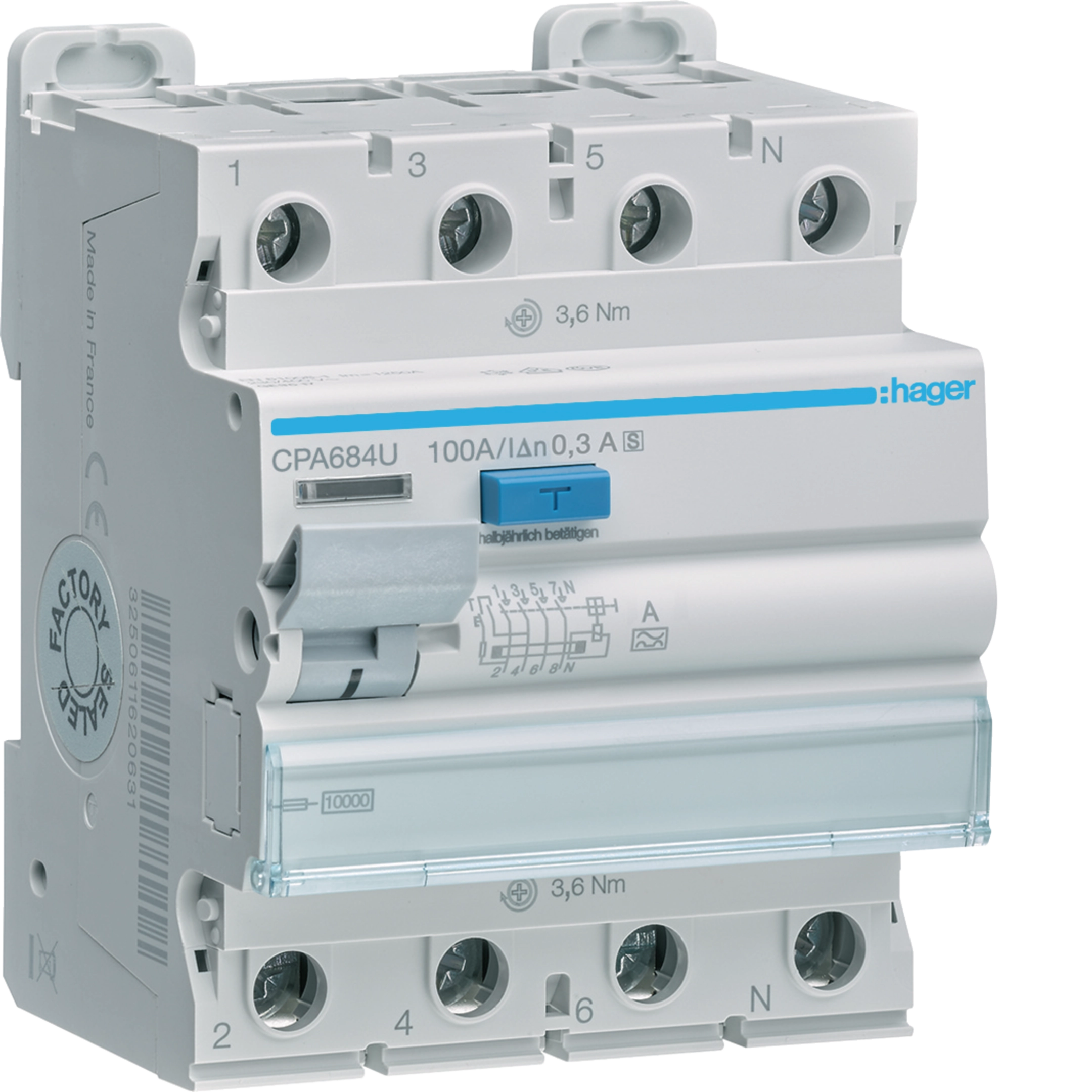

RCCB 3P+N 100A 300mA A S CPA684U
EAN-Nr.
3250611626442
Packaging
1 piece
Price
£460.17
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Mechanic accessories for low-voltage components 1 products available
Technical characteristics
Architecture
-
Type of pole3P+N
Electric current
-
Rated current100 A
-
Rated residual operating current Idn300 mA
-
Breaking and opening capacity Idm1.25 kA
-
Rated conditional short-circuit current Inc according to EN61008-110 kA
-
Rated current -25°C100 A
-
Rated current at -20°C100 A
-
Rated current -15°C100 A
-
Rated current -10°C100 A
-
Rated current -5°C100 A
-
Rated current at 0°C100 A
-
Rated current 5°C100 A
-
Rated current 10°C100 A
-
Rated current 15°C100 A
-
Rated current at 20°C100 A
-
Rated current 25°C100 A
-
Rated current 30°C100 A
-
Rated current 35°C100 A
-
Rated current at 40°C100 A
-
Rated current at 45°C100 A
-
Rated current at 50°C100 A
-
Rated current 55°C100 A
-
Rated current 60°C100 A
-
Rated current 65°C95 A
-
Rated current 70°C90 A
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Dielectric strength value of power frequency2 kV
-
Rated impulse withstand voltage Uimp4,000 V
-
Rated impulse withstand voltage Uimp IEC 60947-36,000 V
-
Max. operating voltage440 V
Frequency
-
Frequency50 - 50 Hz
Capacity
-
Number of modules4
Compatibility
-
Suitable for DIN RailYes
Safety
-
Residual current typeA SEL
-
Ingress Protection (IP) classIP20
Installation, mounting
-
Nominal tightening torque top terminal3.60 - 3.60 Nm
-
Nominal tightening torque down terminal3.60 - 3.60 Nm
-
Type of bottom connection for modular devicesbiconnect
-
Top removabilityYes
Connection
-
Cross-section of output with screws, for massive conductors1 - 50 mm²
-
Cross-section of output with screws, for flexible conductors1 - 35 mm²
Power
-
Total power loss under IN21.48 W
Use conditions
-
Max. Altitude2,000 m
-
Operating temperature-25 - 60 °C
Endurance
-
Electric endurance in number of cycles10,000
-
Number of mechanical operations20,000
Connectivity
-
Type of connectionScrew terminal
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height85 mm
-
Width72 mm
-
Depth70 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents

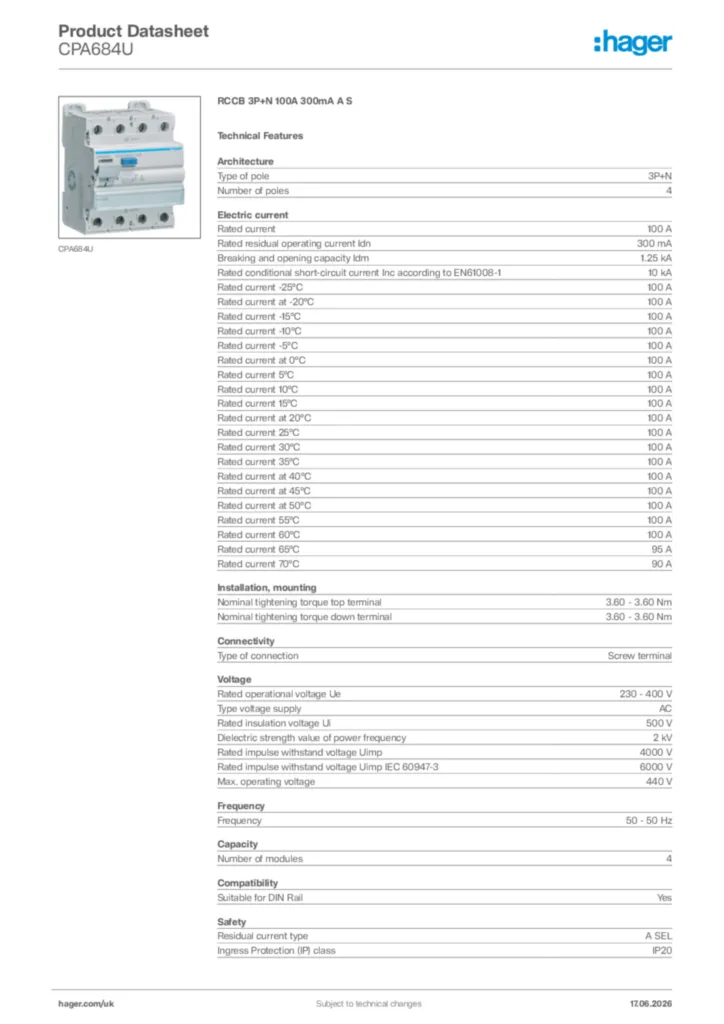

Downloads
-
Product image
-
Installation manual
Installation manual cs-CZ, en-GB, fr-FR, pl-PL, ru-RU 2023-06-01
PDF1,20 MB -
Declaration of conformity
EU Declaration of Conformity
Declaration of conformity en-GB 2025-01-15
PDF1,04 MB
UKCA Declaration of Conformity
Declaration of conformity en-GB 2025-02-06
PDF1,03 MB
