RCCB 2P 100A 30mA A CD285U
EAN-Nr.
3250611615033
Packaging
1 piece
Price
£262.17
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Mechanic accessories for low-voltage components 1 products available
Technical characteristics
Architecture
-
Type of pole1P+N
Electric current
-
Rated current100 A
-
Rated residual operating current Idn30 mA
-
Breaking and opening capacity Idm1.50 kA
-
Rated conditional short-circuit current Inc according to EN61008-16 kA
-
Rated current -25°C100 A
-
Rated current at -20°C100 A
-
Rated current -15°C100 A
-
Rated current -10°C100 A
-
Rated current -5°C100 A
-
Rated current at 0°C100 A
-
Rated current 5°C100 A
-
Rated current 10°C100 A
-
Rated current 15°C100 A
-
Rated current at 20°C100 A
-
Rated current 25°C100 A
-
Rated current 30°C100 A
-
Rated current 35°C100 A
-
Rated current at 40°C100 A
-
Rated current at 45°C94 A
-
Rated current at 50°C88 A
-
Rated current 55°C81 A
-
Rated current 60°C74 A
-
Rated current 65°C66 A
-
Rated current 70°C56 A
Main electrical attributes
-
Nominal tightening torque top terminal3.30 - 3.30 Nm
-
Nominal tightening torque down terminal3.30 - 3.30 Nm
Voltage
-
Rated operational voltage Ue230 - 230 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4,000 V
-
Max. operating voltage253 V
Frequency
-
Frequency50 - 50 Hz
Capacity
-
Number of modules2
Compatibility
-
Suitable for DIN RailYes
Safety
-
Residual current typeA
-
Ingress Protection (IP) classIP20
Installation, mounting
-
Type of top connection for modular devicesScrew terminal
-
Type of bottom connection for modular devicesScrew terminal
-
Nominal tightening torque3.30 - 3.30 Nm
Connection
-
Cross-section of input and output with screws, for massive conductors1 - 50 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 35 mm²
Power
-
Total power loss under IN14.30 W
Use conditions
-
Max. Altitude2,000 m
Endurance
-
Electric endurance in number of cycles2,000
-
Number of mechanical operations4,000
Connectivity
-
Type of connectionScrew terminal
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height83 mm
-
Width35 mm
-
Depth70 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Installation manual
Installation manual en-GB, el-GR, pl-PL, pt-PT 2023-01-12
PDF752,41 kB -
Product data sheet

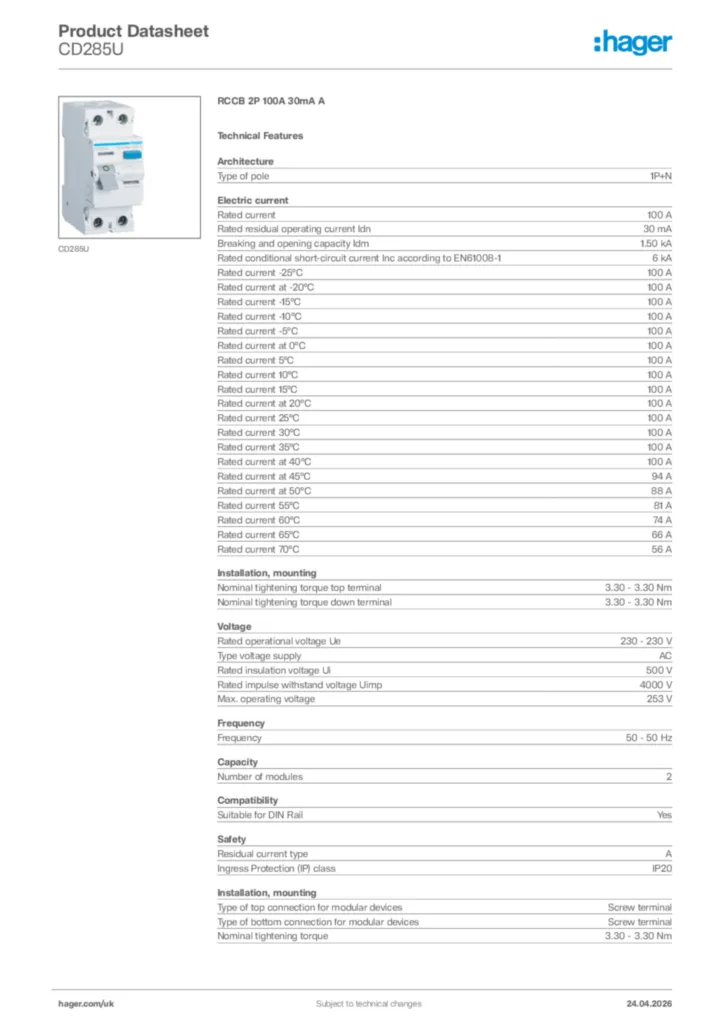

Product data sheet en-GB 2019-11-13
