The Hager bidirectional RCBO 1P+N, 1 module, combines overload/short-circuit and 30 mA type A earth-leakage protection for 230 V circuits. Rated 6 A, C-curve, 6 kA Icn, it suits lighting and small appliance circuits in homes and light commerce. Bidirectional wiring simplifies installation; biconnect/screw terminals ease wiring. IP20, Ui 440 V, Uimp 4 kV, -25 to 70°C, 20k mech/10k elec ops. DIN-rail, compact space saver.

EAN

3250611037460

VPE

1 piece

Residual current circuit breakers with overcurrent protection (RCBO)

Bidirectional RCBO 1P+N 6A C 6kA 30mA Type A 1 Module ADC906R

Name: ADC906R
Brand: Hager
SKU: ADC906R1
Price: 44.38 GBP

Price

£44.38

/ piece *

Accessories
Technical characteristics
catalog.pageproduct.title_sustainability.h2

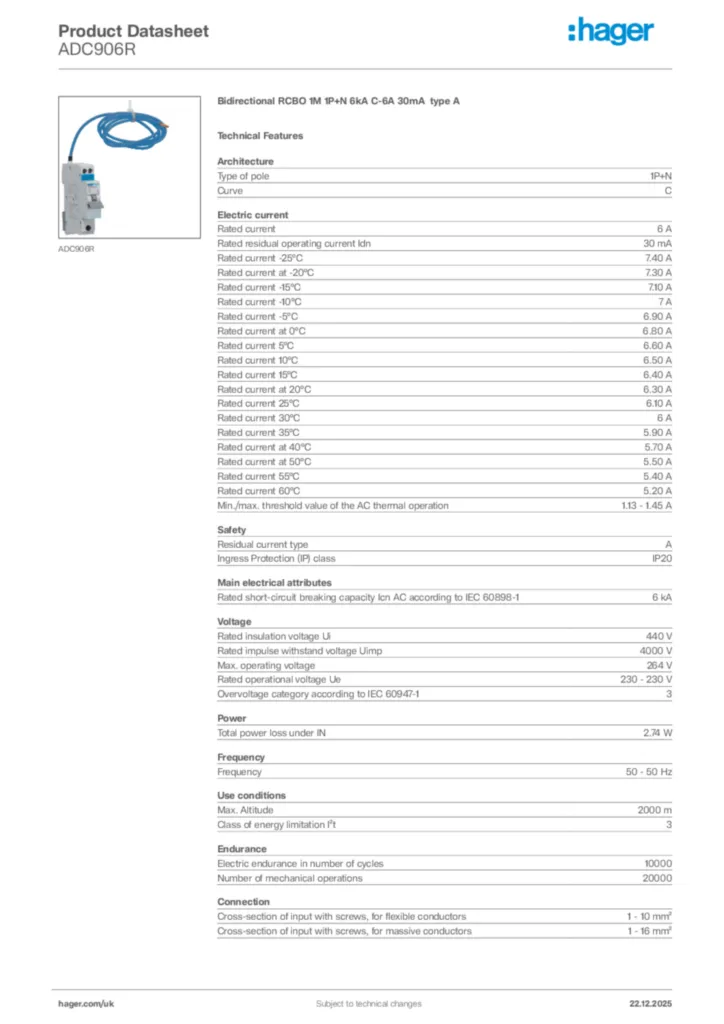

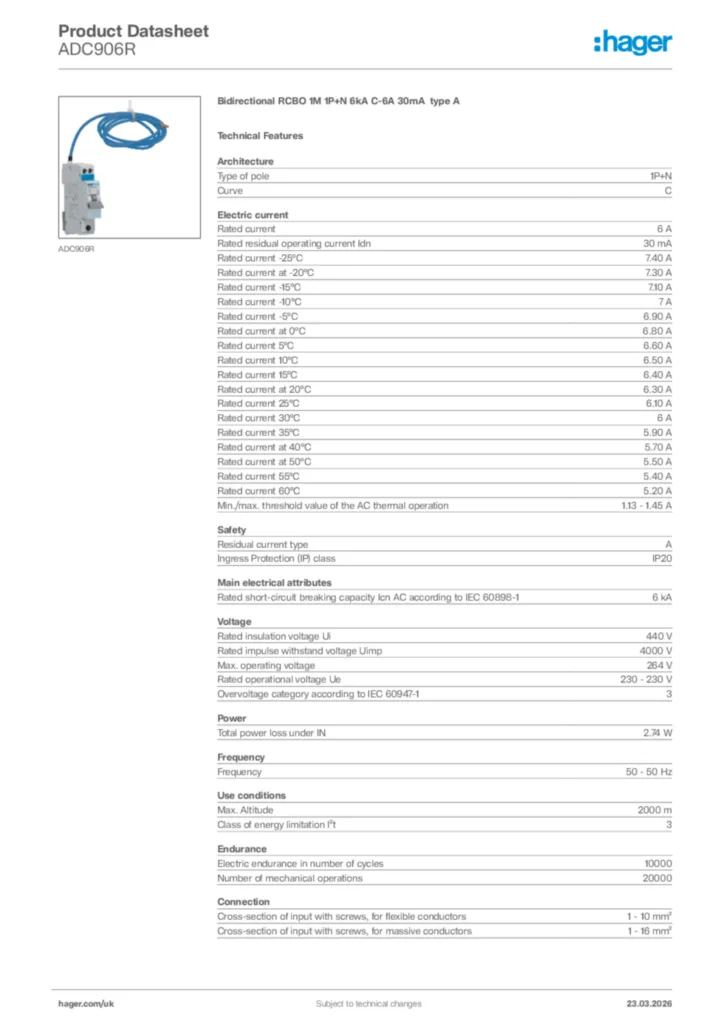

Documentations
More products

product.page.accessories.title

Locking interlocking functions 1 product.page.accessories.products-available

Technical characteristics

Type of pole

1P+N
Number of protected poles

1
Curve

C

Rated current IN

6 A
Rated residual operating current Idn

30 mA
Rated current at -25°C

7.40 A
Rated current at -20°C

7.30 A
Rated current at -15°C

7.10 A
Rated current at -10°C

7 A
Rated current at -5°C

6.90 A
Rated current at 0°C

6.80 A
Rated current at 5°C

6.60 A
Rated current at 10°C

6.50 A
Rated current at 15°C

6.40 A
Rated current at 20°C

6.30 A
Rated current at 25°C

6.10 A
Rated current at 30°C

6 A
Rated current at 35°C

5.90 A
Rated current at 40°C

5.70 A
Rated current at 50°C

5.50 A
Rated current at 55°C

5.40 A
Rated current at 60°C

5.20 A
Min./max. threshold value of the AC thermal operation

1.13 - 1.45 A
Rated current at 45°C

5.60 A
Rated current at 65°C

5.10 A
Rated current at 70°C

5 A

Residual current type

A
Ingress Protection (IP) class

IP20

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Rated insulation voltage Ui

440 V
Rated impulse withstand voltage Uimp

4,000 V
Max. operating voltage

264 V
Rated operational voltage Ue

230 - 230 V
Overvoltage category according to IEC 60947-1

3

Power dissipation at IN

2.74 W

Frequency

50 - 50 Hz

Max. altitude

2,000 m
Class of energy limitation I²t

3
Operating temperature

-25 - 70 °C
Storage/transport temperature

-25 - 80 °C

Electric endurance in number of cycles

10,000
Number of mechanical operations

20,000

Cross-section of input with screws, for flexible conductors

1 - 10 mm²
Cross-section of input with screws, for massive conductors

1 - 16 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 10 mm²
Cross-section of input and output with screws, for massive conductors

1 - 16 mm²
Cross-section of output with screws, for flexible conductors

1 - 10 mm²
Cross-section of output with screws, for massive conductors

1 - 16 mm²

Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect

Number of modules

1

Height

85 mm
Width

17.70 mm
Depth

70 mm

Suitable for DIN Rail

Yes
