The Hager RCBO 1M 1P B-curve 45A 6kA Type A 30mA combines MCB and RCD protection to guard against overloads, short-circuits and earth leakage. Ideal for 230-240 V residential and light commercial circuits, including electronics and EV chargers (Type A). Compact 1-module design saves panel space. DIN-rail mount, screw/biconnect terminals. IP20, 50-60 Hz, 4 kV impulse withstand, high endurance.

EAN-Nr.

3250611036913

Packaging

1 piece

Residual current circuit breakers with overcurrent protection (RCBO)

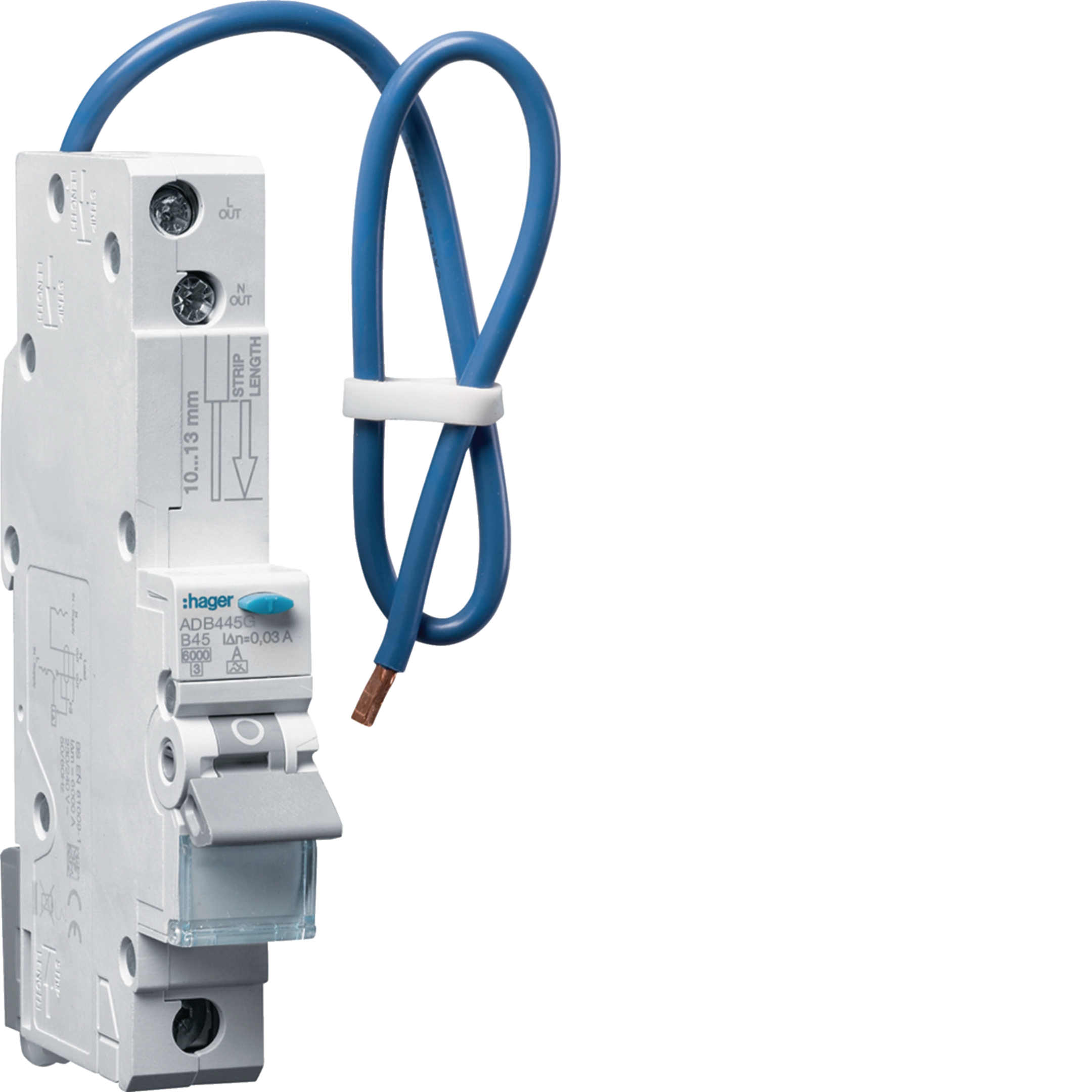

RCBO 1P 45A B Curve 6kA 30mA Type A, 1 Module ADB445G

Name: ADB445G
Brand: Hager
SKU: ADB445G
Price: 32.25 GBP

Price

£32.25

/ piece *

Accessories
Technical characteristics
Environmental value
Documentations
More products

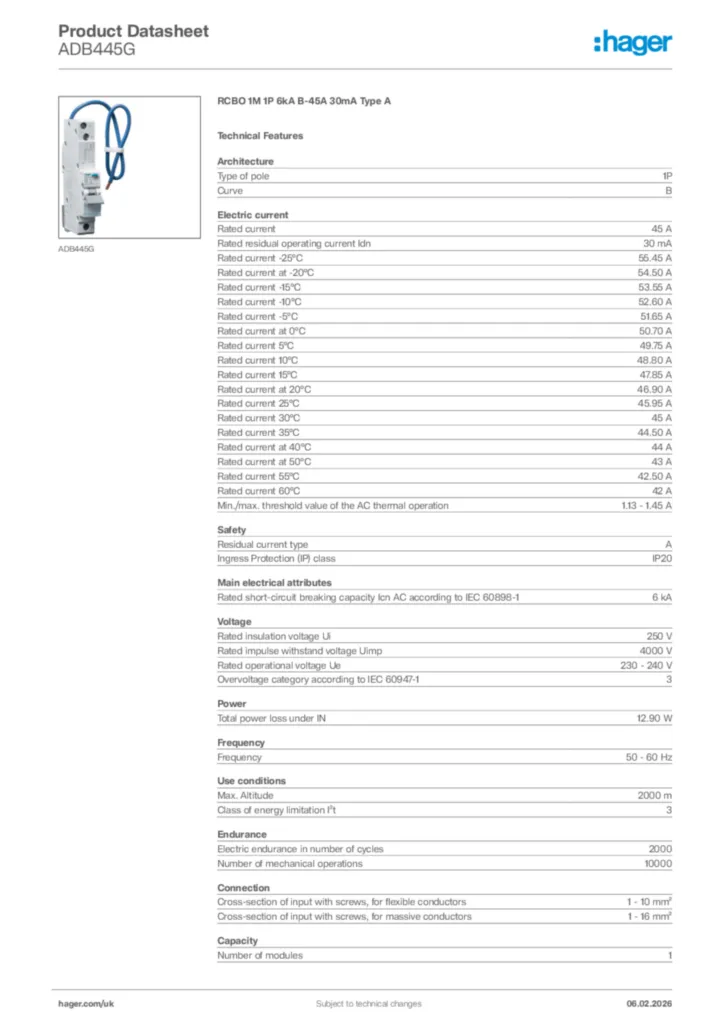

Download the sheet

Complete your system

Locking interlocking functions 2 products available

Technical characteristics

Type of pole

1P
Number of protected poles

1
Curve

B

Rated current IN

45 A
Rated residual operating current Idn

30 mA
Rated current at -25°C

55.45 A
Rated current at -20°C

54.5 A
Rated current at -15°C

53.55 A
Rated current at -10°C

52.6 A
Rated current at -5°C

51.65 A
Rated current at 0°C

50.7 A
Rated current at 5°C

49.75 A
Rated current at 10°C

48.8 A
Rated current at 15°C

47.85 A
Rated current at 20°C

46.9 A
Rated current at 25°C

45.95 A
Rated current at 30°C

45 A
Rated current at 35°C

44.5 A
Rated current at 40°C

44 A
Rated current at 50°C

43 A
Rated current at 55°C

42.5 A
Rated current at 60°C

42 A
Min./max. threshold value of the AC thermal operation

1.13 - 1.45 A

Residual current type

A
Ingress Protection (IP) class

IP20

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Rated insulation voltage Ui

250 V
Rated impulse withstand voltage Uimp

4,000 V
Rated operational voltage Ue

230 - 240 V
Overvoltage category according to IEC 60947-1

3

Power dissipation at IN

12.90 W

Frequency

50 - 60 Hz

Max. altitude

2,000 m
Class of energy limitation I²t

3
Operating temperature

-25 - 40 °C
Storage/transport temperature

-40 - 70 °C

Electric endurance in number of cycles

2,000
Number of mechanical operations

10,000

Cross-section of input with screws, for flexible conductors

1 - 10 mm²
Cross-section of input with screws, for massive conductors

1 - 16 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²
Cross-section of output with screws, for flexible conductors

1 - 16 mm²
Cross-section of output with screws, for massive conductors

1 - 25 mm²

Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect

Number of modules

1

Height

115 mm
Width

17.80 mm
Depth

70 mm

Suitable for DIN Rail

Yes

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
