The Hager RCBO 1M 1P C-40A Type A combines MCB and RCD in a 17.8 mm module, protecting against overloads/short circuits and 30 mA earth leakage, including pulsating DC. With 10 kA breaking capacity and a C curve, it suits residential and light commercial circuits and inductive loads. Rated 230-240 V, 50-60 Hz, IP20, it mounts on DIN rail with screw/biconnect terminals for quick installation.

EAN-Nr.

3250611037095

Packaging

1 piece

Residual current circuit breakers with overcurrent protection (RCBO)

RCBO 1P 40A Curve C 10kA 30mA Type A 230V 1 Module ADC440U

Name: ADC440U
Brand: Hager
SKU: ADC440U
Price: 179.54 GBP

Price

£179.54

/ piece *

Accessories
Technical characteristics
Environmental value
Documentations
More products

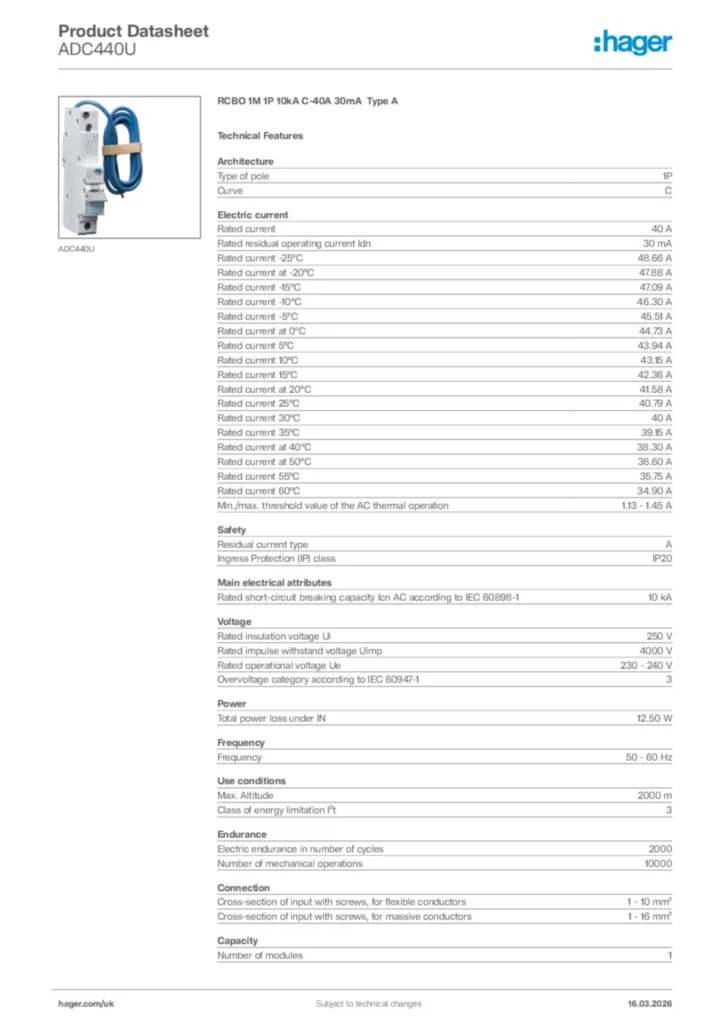

Download the sheet

Complete your system

Locking interlocking functions 2 products available

Technical characteristics

Type of pole

1P
Number of protected poles

1
Curve

C

Rated current

40 A
Rated residual operating current Idn

30 mA
Rated current -25°C

48.66 A
Rated current at -20°C

47.88 A
Rated current -15°C

47.09 A
Rated current -10°C

46.30 A
Rated current -5°C

45.51 A
Rated current at 0°C

44.73 A
Rated current 5°C

43.94 A
Rated current 10°C

43.15 A
Rated current 15°C

42.36 A
Rated current at 20°C

41.58 A
Rated current 25°C

40.79 A
Rated current 30°C

40 A
Rated current 35°C

39.15 A
Rated current at 40°C

38.30 A
Rated current at 50°C

36.60 A
Rated current 55°C

35.75 A
Rated current 60°C

34.90 A
Min./max. threshold value of the AC thermal operation

1.13 - 1.45 A

Residual current type

A
Ingress Protection (IP) class

IP20

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Rated insulation voltage Ui

250 V
Rated impulse withstand voltage Uimp

4,000 V
Rated operational voltage Ue

230 - 240 V
Overvoltage category according to IEC 60947-1

3

Total power loss under IN

12.50 W

Frequency

50 - 60 Hz

Max. altitude

2,000 m
Class of energy limitation I²t

3
Operating temperature

-25 - 40 °C
Storage/transport temperature

-40 - 70 °C

Electric endurance in number of cycles

2,000
Number of mechanical operations

10,000

Cross-section of input with screws, for flexible conductors

1 - 10 mm²
Cross-section of input with screws, for massive conductors

1 - 16 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²
Cross-section of output with screws, for flexible conductors

1 - 16 mm²
Cross-section of output with screws, for massive conductors

1 - 25 mm²

Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect

Number of modules

1

Height

115 mm
Width

17.80 mm
Depth

70 mm

Suitable for DIN Rail

Yes
