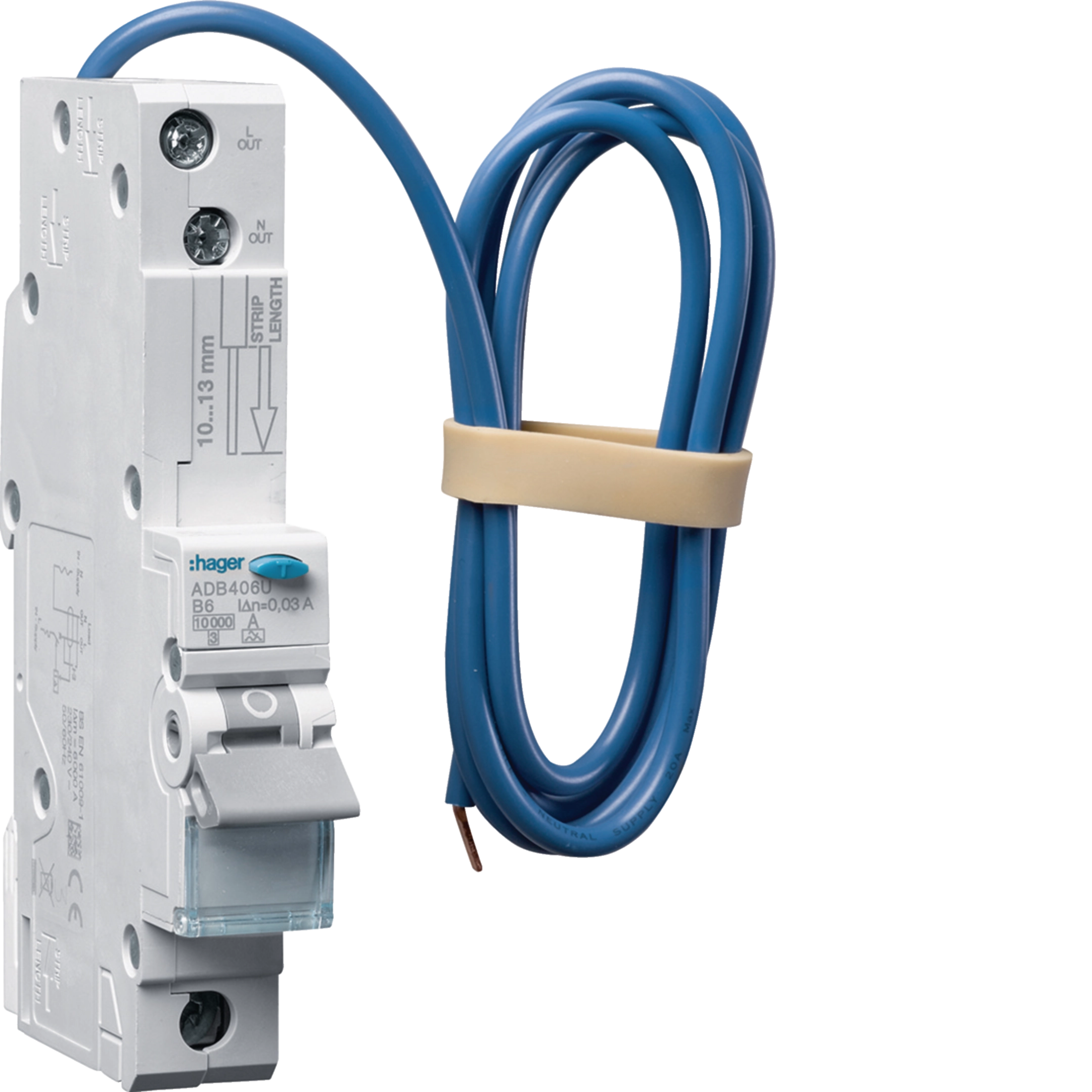

RCBO 1M 1P 10kA B-6A 30mA Type A ADB406U
EAN-Nr.
3250611036784
Packaging
1 piece
Price
£171.10
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists

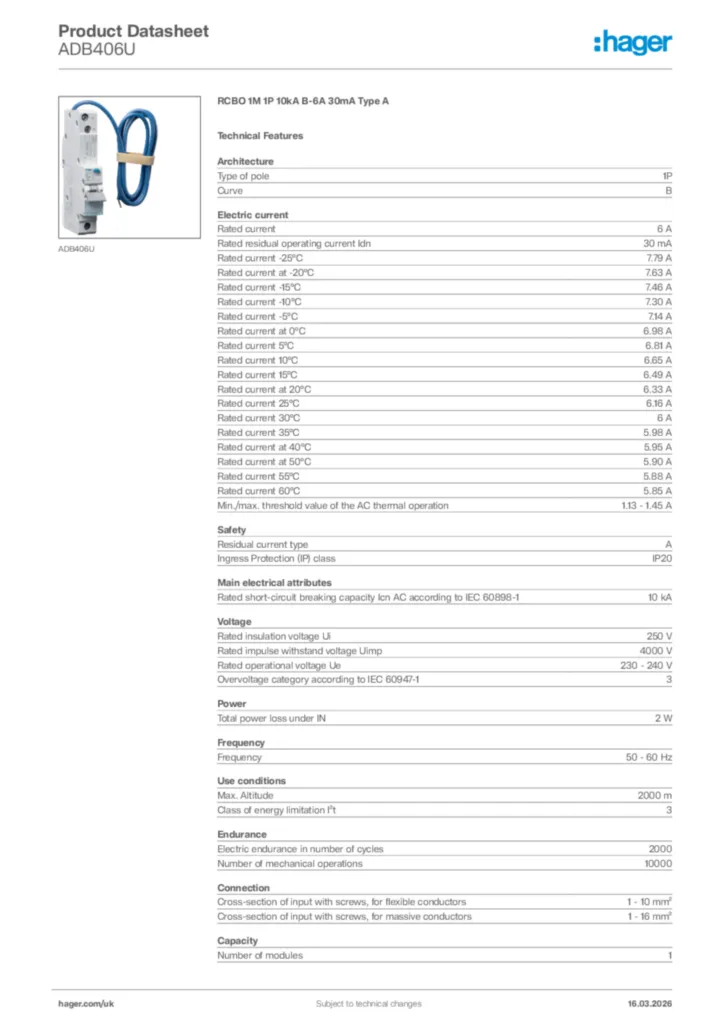

Technical characteristics
Architecture
-
Neutral positionright
-
Number of poles1 P
-
Type of pole1 P
-
CurveB
Main electrical features
-
Rated operational voltage Ue230 / 240 V
-
Frequency50/60 Hz
-
Type of supply voltageAC
Voltage
-
Rated insulation voltage250 V
-
Rated impulse withstand voltage4000 V
Electric current
-
Rated residual operating current30 mA
Electric current / temperature
-
Rating current 30°C6 A
Dimensions
-
Depth of installed product70 mm
-
Height of installed product115 mm
-
Width of installed product17.8 mm
Power
-
Total power loss under IN2 W
Endurance
-
Electric endurance in number of cycles2000
-
Number of mechanical operations10000
Equipment
-
Quick connectno
-
Can be accessorizedNo
Standards
-
Standard textBS 61009-1 ; EN 61009-1
Safety
-
Residual current typeA
Use conditions
-
Operating temperature-25…40 °C
Downloads
-
Product image
-
Instruction manual
Instruction manuals for ADB406U
PDF641 KB -
Catalogue
Commercial Distribution Catalogue
PDF14 MB -
Declaration of conformity
EU Declaration of conformity for ADB406U
Declaration
PDF413 KB -
PEP document
Product environmental profile for ADB406U
PEP_Hager_HAGE-00739-V01.01-EN_08122022.pdf
PDF351 KB -
RoHS report
Pollutant guidelines for ADB406U
RoHS declaration ADB406U (english)
PDF103 KB
Pollutant guidelines for ADB406U
REACH-declaration 2023-10-20 (english)
PDF33 KB
