The Hager h3 x160 TM FIX 1P1D 50A 25kA MCCB provides reliable overload and short-circuit protection for single-phase feeders. With 25 kA Icu (Ics 20 kA), Ui 690 V and 8 kV impulse withstand, it suits demanding commercial/industrial panels. Fixed thermal-magnetic trip at 1×In, fast 10 ms opening. Compact 25 mm width, IP4X. Screw terminals accept 4-95 mm² conductors. DIN-rail mount for quick installation.

EAN-Nr.

3250611011743

Packaging

1 piece

Residual current circuit breakers with overcurrent protection (RCBO)

MCCB 1P 50A Icu 25kA h3 x160 TM fixed ADA940U

Name: ADA940U
Brand: Hager
SKU: ADA940U1
Price: 196.06 GBP

Price

£196.06

/ piece *

Accessories
Technical characteristics
Environmental value
Documentations
More products

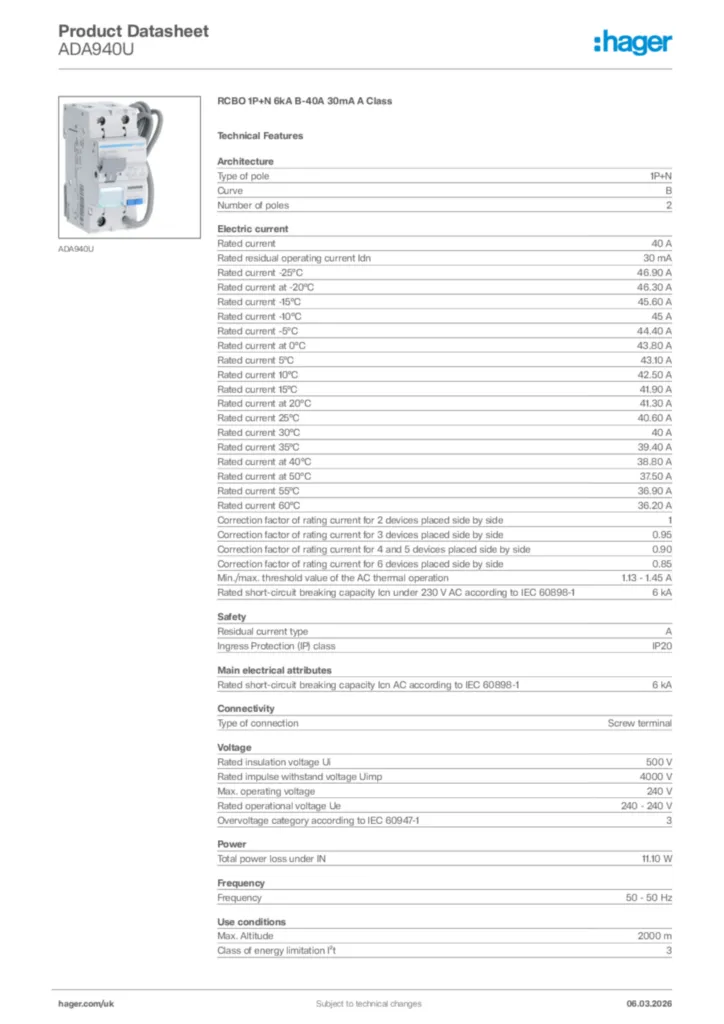

Download the sheet

Complete your system

Referenced by 2 products available

Technical characteristics

Type of pole

1P+N
Number of protected poles

1
Curve

B

Residual current type

A
Ingress Protection (IP) class

IP20

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4,000 V
Max. operating voltage

240 V
Rated operational voltage Ue

240 - 240 V
Overvoltage category according to IEC 60947-1

3
Type voltage supply

AC

Rated current

40 A
Rated residual operating current Idn

30 mA
Rated current -25°C

46.90 A
Rated current at -20°C

46.30 A
Rated current -15°C

45.60 A
Rated current -10°C

45 A
Rated current -5°C

44.40 A
Rated current at 0°C

43.80 A
Rated current 5°C

43.10 A
Rated current 10°C

42.50 A
Rated current 15°C

41.90 A
Rated current at 20°C

41.30 A
Rated current 25°C

40.60 A
Rated current 30°C

40 A
Rated current 35°C

39.40 A
Rated current at 40°C

38.80 A
Rated current at 45°C

38.20 A
Rated current at 50°C

37.50 A
Rated current 55°C

36.90 A
Rated current 60°C

36.20 A
Correction factor of rating current for 2 devices placed side by side

1
Min./max. threshold value of the AC thermal operation

1.13 - 1.45 A

Total power loss under IN

11.10 W

Frequency

50 - 50 Hz

Nominal tightening torque down terminal

2.10 - 2.10 Nm
Nominal tightening torque top terminal

2.10 - 2.10 Nm
Type of bottom connection for modular devices

biconnect

Max. altitude

2,000 m
Class of energy limitation I²t

3
Operating temperature

-25 - 40 °C
Storage/transport temperature

-25 - 70 °C
Degree of pollution according to IEC 60664 / IEC 60947-2

2
Air humidity protection

For all climates

Electric endurance in number of cycles

2,000
Number of mechanical operations

1,000

Cross-section flexible conductor

1 - 16 mm²
Cross-section rigid conductor

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for massive conductors

1 - 25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²

Number of modules

2

Height

83 mm
Width

35 mm
Depth

68 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
