RCBO Electronic 1P 6kA B Curve -16A, 30mA Type A(AC & Pulsating DC Sensitive)1M ADA316G
EAN-Nr.
3250611012979
Packaging
1 piece
Price
£90.02
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Locking interlocking functions 1 products available
Technical characteristics
Architecture
-
Type of pole1P
-
CurveB
Electric current
-
Rated current16 A
-
Rated residual operating current Idn30 mA
-
Rated current -25°C23.18 A
-
Rated current at -20°C22.64 A
-
Rated current -15°C22.11 A
-
Rated current -10°C22 A
-
Rated current -5°C21.04 A
-
Rated current at 0°C20.50 A
-
Rated current 5°C19.96 A
-
Rated current 10°C19.43 A
-
Rated current 15°C18.89 A
-
Rated current at 20°C18.36 A
-
Rated current 25°C17.82 A
-
Rated current 30°C16 A
-
Rated current 35°C16.75 A
-
Rated current at 40°C16.22 A
-
Rated current at 50°C16 A
-
Rated current 55°C14.61 A
-
Rated current 60°C14.07 A
-
Correction factor of rating current for 2 devices placed side by side0.95
-
Correction factor of rating current for 3 devices placed side by side0.95
-
Correction factor of rating current for 4 and 5 devices placed side by side0.90
-
Correction factor of rating current for 6 devices placed side by side0.85
-
Min./max. threshold value of the AC thermal operation1.13 - 1.45 A
Safety
-
Residual current typeA
-
Ingress Protection (IP) classIP20
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-16 kA
Voltage
-
Rated insulation voltage Ui250 V
-
Rated impulse withstand voltage Uimp4,000 V
-
Max. operating voltage253 V
-
Rated operational voltage Ue230 - 230 V
-
Overvoltage category according to IEC 60947-13
Power
-
Total power loss under IN3.77 W
Frequency
-
Frequency50 - 50 Hz
Use conditions
-
Max. Altitude2,000 m
-
Class of energy limitation I²t3
-
Operating temperature-20 - 70 °C
-
Storage/transport temperature-25 - 80 °C
Endurance
-
Electric endurance in number of cycles16,000
-
Number of mechanical operations20,000
Connection
-
Cross-section of input with screws, for flexible conductors1 - 10 mm²
-
Cross-section of input with screws, for massive conductors1 - 16 mm²
Installation, mounting
-
Type of top connection for modular devicesScrew terminal
-
Type of bottom connection for modular devicesScrew terminal
Capacity
-
Number of modules1
Dimensions
-
Height92 mm
-
Width17.70 mm
-
Depth70 mm
Compatibility
-
Suitable for DIN RailYes
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

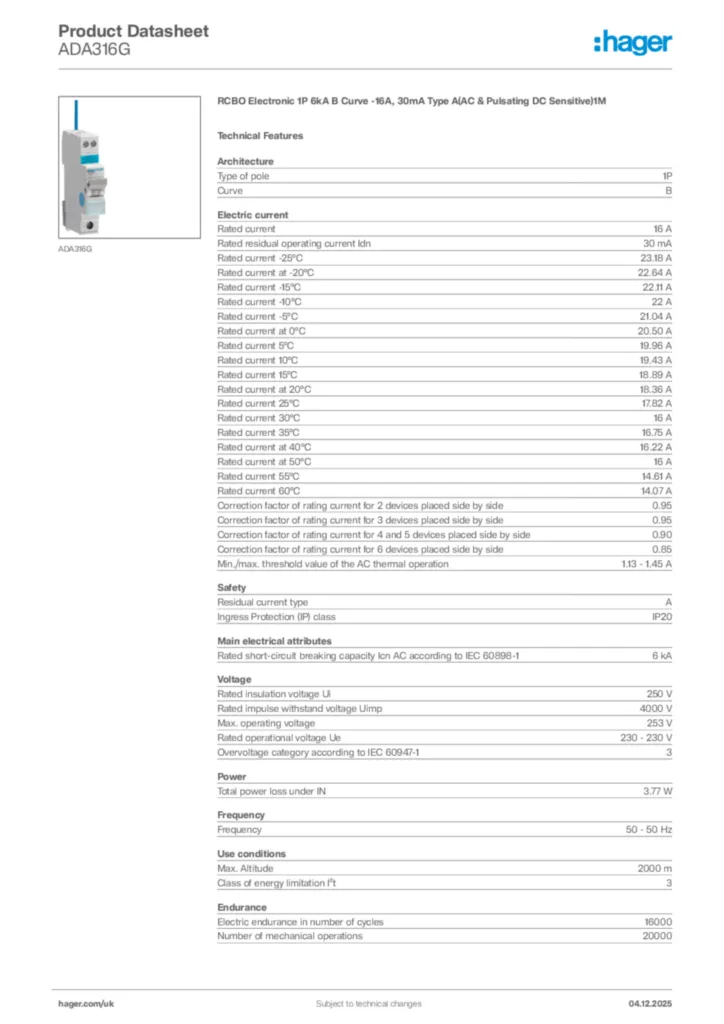

Hager Product data sheet ADA316G
