The Hager cubyko Schuko Socket composable white IP55 delivers safe, weather‑resistant power for outdoor and damp areas. Rated 16A, 250V, 50-60Hz, it features a SCHUKO outlet and a self‑closing hinged cover ensuring IP55 when closed. IK05 impact resistance and enhanced contact protection improve safety. Polar white RAL9010 matt thermoplastic. Flush or surface screw mounting with plug‑in connection for quick installation.
EAN
3250617175609
Packaging
1 Piece
cubyko Schuko socket 16A 250V IP55 childproof, self-closing lid, surface mount WNA160B
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Surface-mounted housing for flush-mounted switching device 5 products available -
Cover frame for domestic switching devices 3 products available
Compatible products
-
Referenced by 18 products available
Complete your system
-
WNA685Bcubyko Double horizontal box empty with 4 sliders white IP55
-
WNA682Bcubyko Double horizontal box empty with 2 sliders white IP55
-
WNA681B
Surface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA683BSurface-mounted lower casing 3gang horizontal, w. frame and cable entries W.1 pw
-
WNA686BSurface-mounted lower casing 2gang vertical, w. frame and cable entries W.1 pw
Referenced by
-
WNA408Bcubyko Double vertical flush adapter white IP55
-
WNA686B
Surface-mounted lower casing 2gang vertical, w. frame and cable entries W.1 pw
-
WNA683Surface-mounted lower casing 3gang hor., w. frame and cable entries W.1 grey
-
WNA683B
Surface-mounted lower casing 3gang horizontal, w. frame and cable entries W.1 pw
-
WNA684cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA681B
Surface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA682B
cubyko Double horizontal box empty with 2 sliders white IP55
-
WNA685cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA681cubyko Single box empty grey IP55
-
WNA686cubyko Double vertical box empty grey IP55
-
WNA403Bcubyko Triple horizontal flush adapter white IP55
-
WNA402B
cubyko Double horizontal flush adapter white IP55
-
WNA408cubyko Double vertical flush adapter grey IP55
-
WNA403cubyko Triple horizontal flush adapter grey IP55
-
WNA401cubyko Single flush adapter composable grey IP55
-
WNA402cubyko Double horizontal flush adapter grey IP55
-
WNA682cubyko Double horizontal box empty with 2 sliders grey IP55
-
WNA685B
cubyko Double horizontal box empty with 4 sliders white IP55
Technical properties
Voltage
-
Rated voltage250 V
Electric current
-
Rated current16 A
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
-
Contains recycled material (% of total plastic weight)0
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth22.80 mm
-
Number of units1
-
Built-in depth flush-mounted boxes0
-
Built-in depth22 mm
Connection
-
Connector/plug typeTurn screw lock
-
Cross-section flexible conductor without wire end sleeve1.0 - 2.5 mm²
Installation, mounting
-
Mounting onFlush mounting, Surface mounting
-
Mounting-/Connection PositionHorizontal
Connectivity
-
Type of connectionPlug-in connection
-
With claw mountingNo
-
Mounting typeScrew mounting
Equipment
-
Connector/plug type socket outletSCHUKO
-
Rotated central insertNo
-
With hinged lidYes
-
With round protective earth pinNo
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
-
Pre-equipped withSocket outlet
Cover, door
-
Type of lidSelf-closing hinged cover, can be arrested in end position
Capacity
-
Number of modules1
Safety
-
With enhanced contact protectionYes
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP55
-
Usable in higher IP classIP55 with closed cover
Functions
-
With orientation lightingNo
-
With function lightingNo
Identification
-
With imprintNo
-
Related Systemscubyko
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

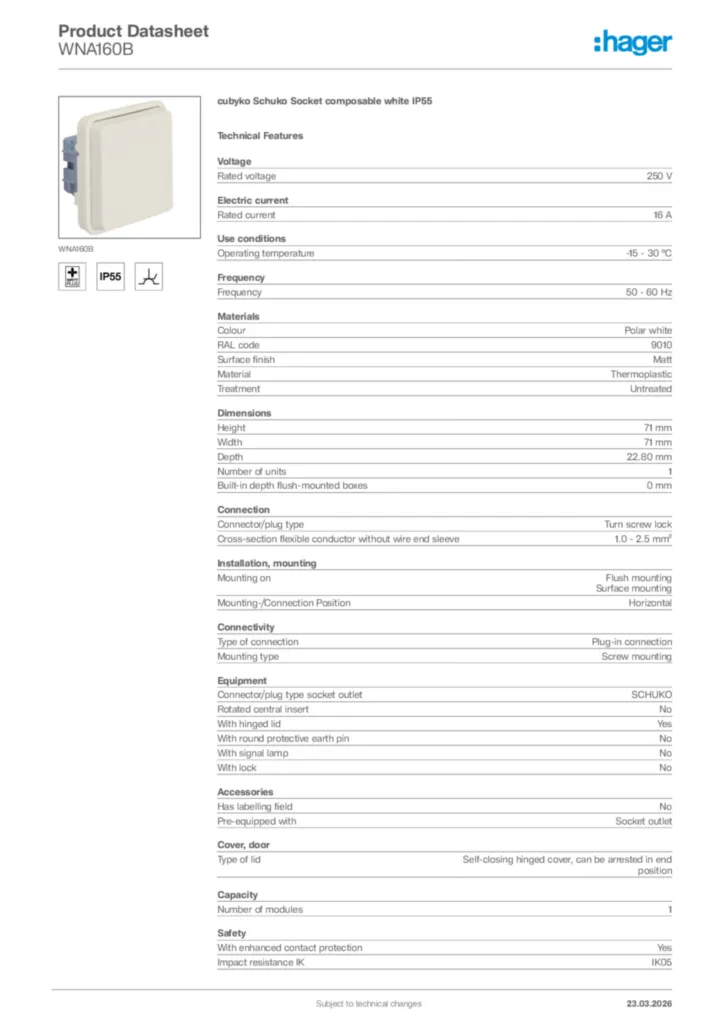

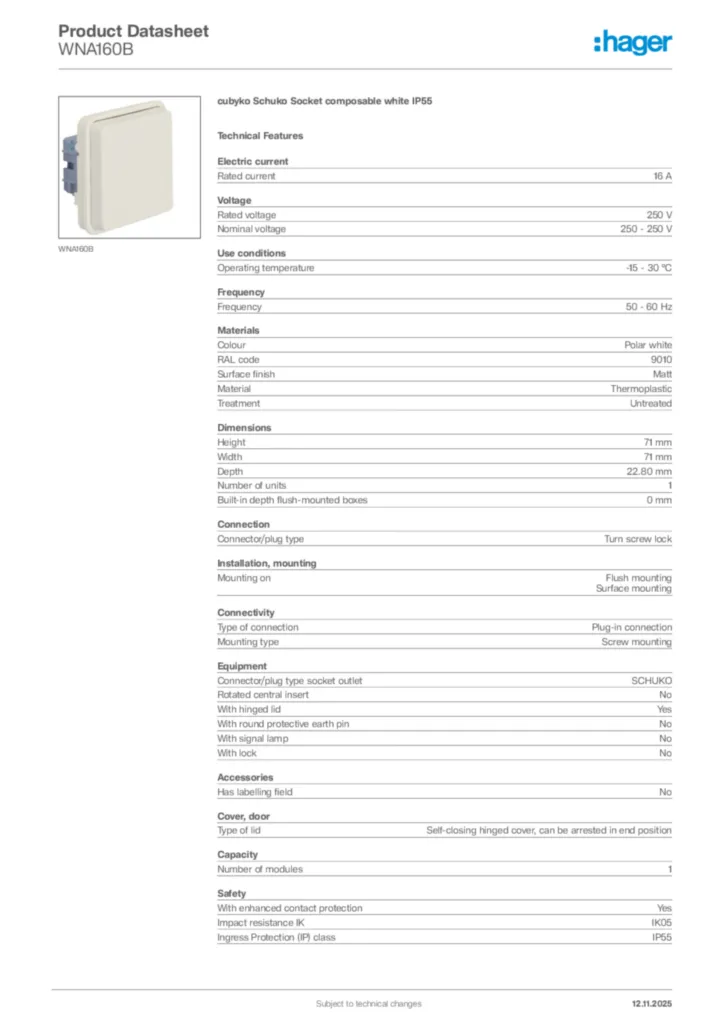

Product datasheet
