Wall m. encl., Quadro5, 1410x700x260 mm • FM206 | Hager
Location Hager in the world

  • Better buildings. Better tomorrows.

    • Menu
    Account
    EAN
    3250612632060
    Packaging
    1 Piece

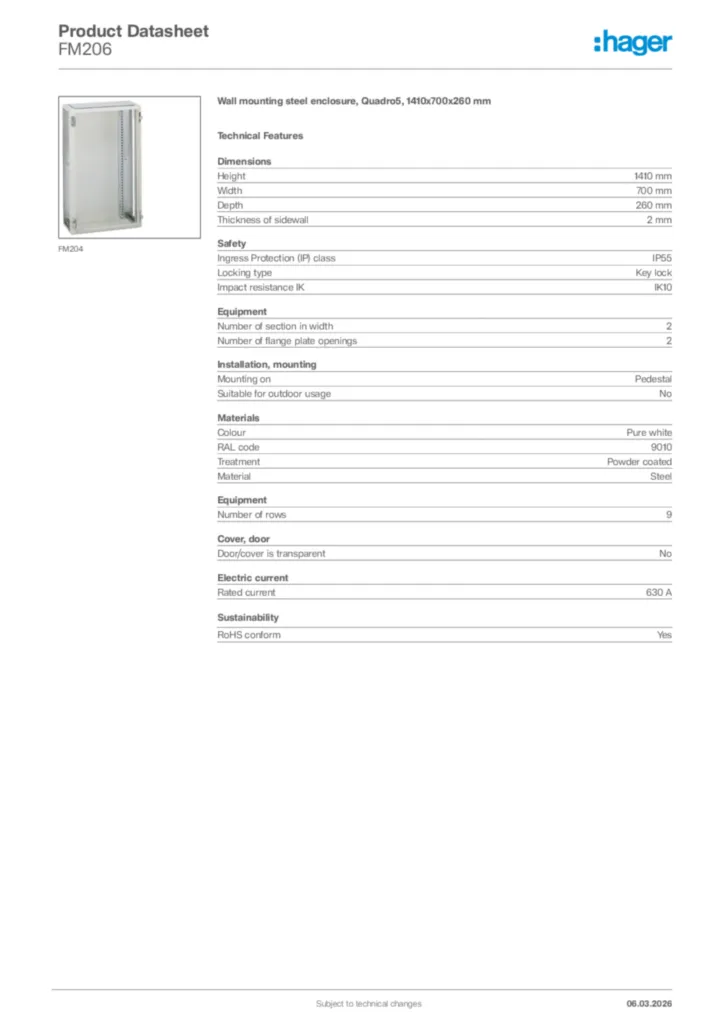

    Wall mounting steel enclosure, Quadro5, 1410x700x260 mm FM206

    Complete your system

    Optional accessories

  • See more (143)
    • Door/­op­er­ating panel 2 products available
    • Screw mounting set 1 products available
    • Cover strip 2 products available
    • Compon­ents for wiring, cable entry and cable fixing 4 products available
    • Vent­il­a­tion plate 6 products available
    • Cable tree 9 products available

    Technical properties

    Dimen­sions
    • Height
      1410 mm
    • Width
      700 mm
    • Depth
      260 mm
    • Thick­ness of side­wall
      2 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP55
    • Locking type
      Key lock
    • Impact resist­ance IK
      IK10
    Equip­ment
    • Number of section in width
      2
    • Number of flange plate open­ings
      2
    • Number of rows
      9
    Install­a­tion, mounting
    • Mounting on
      Pedestal
    • Suit­able for outdoor usage
      No
    Mater­ials
    • Colour
      Pure white
    • RAL code
      9010
    • Treat­ment
      Powder coated
    • Material
      Steel
    Cover, door
    • Door/­cover is trans­parent
      No
    Elec­tric current
    • Rated current
      630 A

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - Floor standing steel enclosure, Quadro5, 2010x400x260mm (english)
    PDF
    3,54 MB
    Hager REACH declaration FM206
    PDF
    Hager RoHS report FM206
    PDF
