2-pole, 25A Centre Off Modular Changeover Switch with Top Common Point SFT225
EAN-Nr.
3250615510792
Packaging
1 piece
Price
£50.58
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Number of poles2 P
-
Type of pole2 P
Main electrical features
-
Rated operational voltage Ue230 V
-
Frequency50/60 Hz
Voltage
-
Rated insulation voltage440 V
-
Rated impulse withstand voltage4000 V
Dimensions
-
Depth of installed product70 mm
-
Height of installed product83 mm
-
Width of installed product35 mm
Power
-
Total power loss under IN1.8 W
Endurance
-
Electrical durability at nominal load in AC22 in operating cycles25000
-
Number of mechanical operations200000
Installation, mounting
-
Tightening torque1,8Nm
Connection
-
Connection cross-sect. flexible conductor1,5 / 10mm²
-
Connection cross-sect. rigid cable1,5 / 16mm²
-
Type of connectionwith screw
Standards
-
Standard textIEC 60947-3 ; IEC/EN 60669-1
Use conditions
-
Operating temperature-20…50 °C
Downloads
-
Product image
-

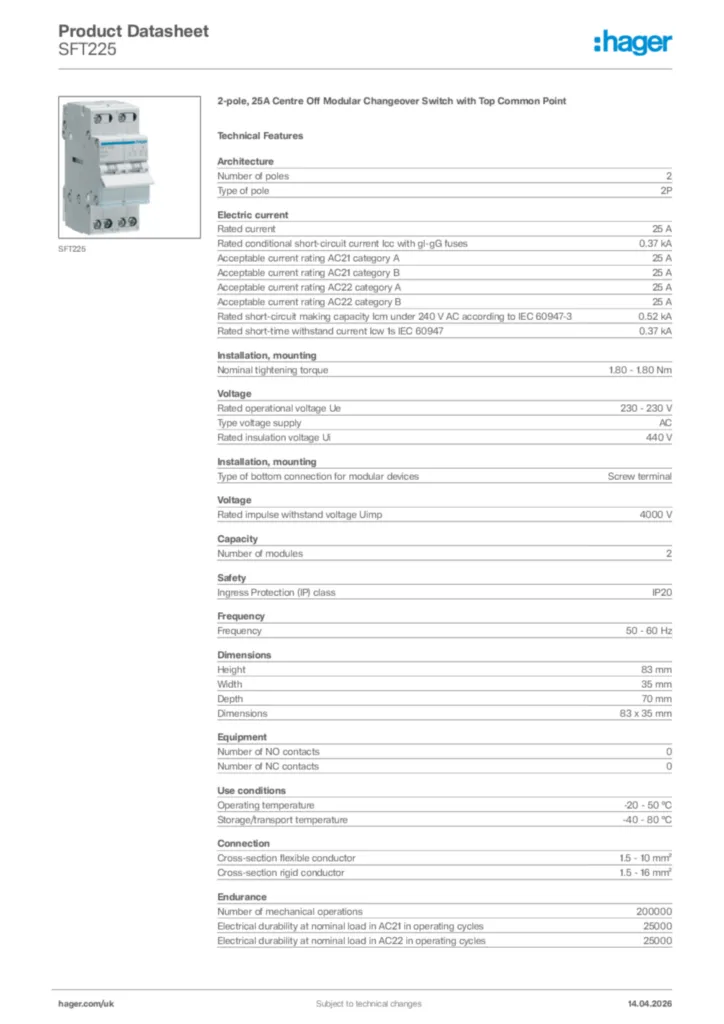

Product data sheet
