2 pole Changeoverswitch 63A I-0-II SF263
EAN-Nr.
3250615561008
Packaging
1 piece
Price
£58.55
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Number of poles2
-
Type of pole2P
Electric current
-
Rated current63 A
-
Rated conditional short-circuit current Icc with gl-gG fuses6 kA
Installation, mounting
-
Nominal tightening torque2.90 - 2.90 Nm
Voltage
-
Rated operational voltage Ue230 - 230 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4,000 V
Capacity
-
Number of modules4
Safety
-
Ingress Protection (IP) classIP20
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Height90 mm
-
Width71.50 mm
-
Depth72 mm
Equipment
-
Number of NO contacts0
-
Number of NC contacts0
Use conditions
-
Operating temperature-25 - 50 °C
-
Storage/transport temperature-40 - 80 °C
Connection
-
Cross-section flexible conductor16 mm²
-
Cross-section rigid conductor25 mm²
Endurance
-
Number of mechanical operations100,000
-
Electrical durability at nominal load in AC21 in operating cycles5,000
Power
-
Total power loss under IN3.60 W
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Installation manual
Installation manual International 2019-01-22
PDF138,50 kB
Inverseur modulaire 63A SF263
Installation manual International 2019-01-22
PDF142,87 kB -

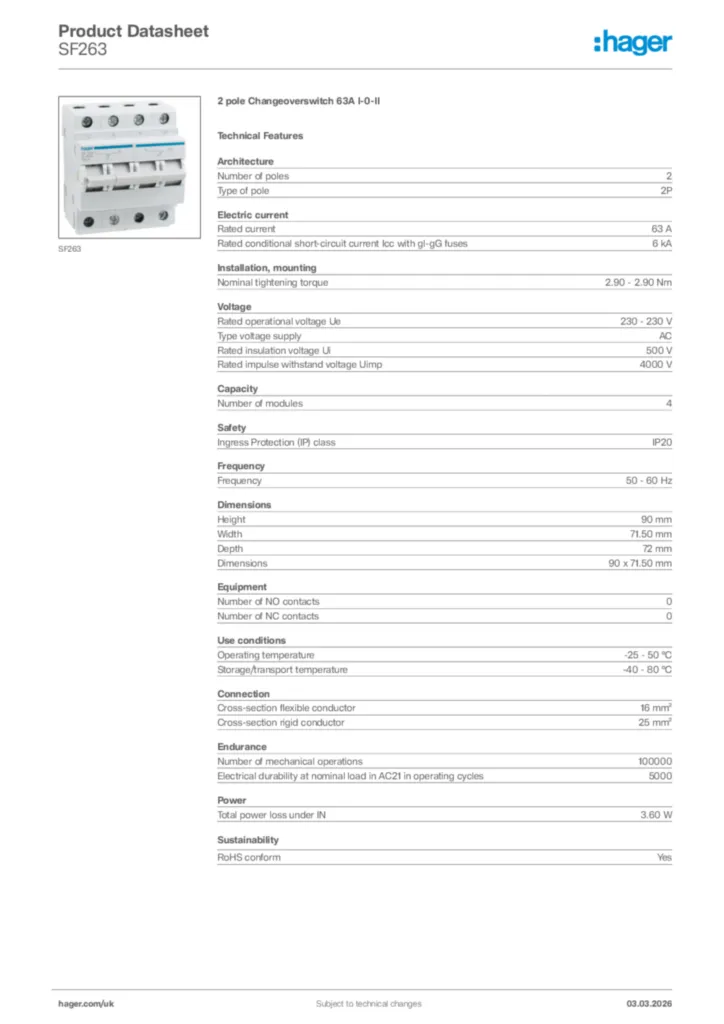

Product data sheet
UK_MD_TDS_ChangeoverSwitches
Technical data sheet including characteristics for modular changeover switches
PDF55,62 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2023-04-24
PDF697,86 kB
Declaration
Declaration of conformity International 2022-02-03
PDF803,57 kB
