2-pole, 25A Modular Changeover Switch with Top Common Point SFH225

EAN-Nr.
3250615510815
Packaging
1 Prt.
Price
£51.96
/ piece *

Technical characteristics

Architecture
  • Number of poles
    2 P
  • Type of pole
    2 P
Main electrical features
  • Rated operational voltage Ue
    230 V
  • Frequency
    50/60 Hz
Voltage
  • Rated insulation voltage
    440 V
  • Rated impulse withstand voltage
    4000 V
Dimensions
  • Depth of installed product
    68 mm
  • Height of installed product
    83 mm
  • Width of installed product
    35 mm
Power
  • Total power loss under IN
    1.8 W
Endurance
  • Electrical durability at nominal load in AC22 in operating cycles
    25000
  • Number of mechanical operations
    200000
Connection
  • Connection cross-sect. flexible conductor
    1,5 / 10mm²
  • Connection cross-sect. rigid cable
    1,5 / 16mm²
  • Type of connection
    with screw
Standards
  • European directive WEEE
    concerned
Safety
  • Protection index IP
    IP20
Use conditions
  • Operating temperature
    -20…50 °C

Downloads

  • Product image

    Image SFH225  | Hager

    Product Image SFH225

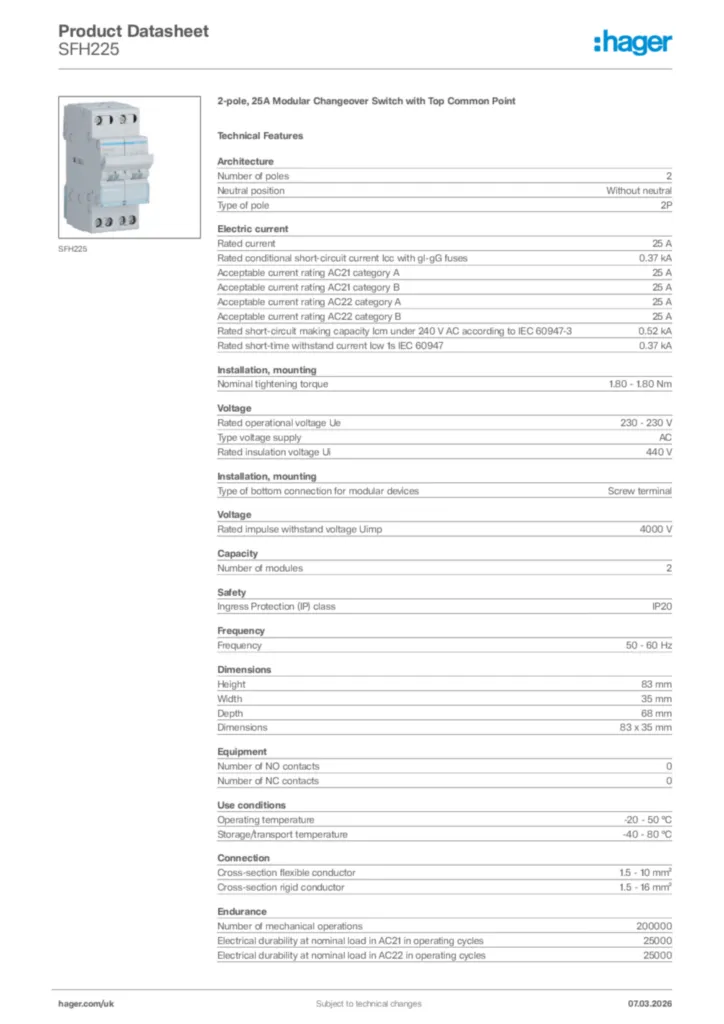

  • Product datasheet

    Image Product data sheets for SFH225  | Hager

    Product data sheets for SFH225

    UK_MD_TDS_ChangeoverSwitches

    PDF
    55 KB
  • Product declaration

    Image EU Declaration of conformity for SFH225  | Hager

    EU Declaration of conformity for SFH225

    Declaration

    PDF
    931 KB
  • Product environment profile

    Image Product environmental profile for SFH225  | Hager

    Product environmental profile for SFH225

    PDF
    440 KB
More documentation
*Data is subject to errors and technical modifications. Prices are trade price, exclusive of VAT.
