SFH125

1-pole, 25A Modular Changeover Switch with Top Common Point
EAN
3250615510761
Quantity
1
Trade price*
£19.46 /prt.*
  • Architecture
    • Number of poles
      • 1 P
    • Type of pole
      • 1 P
  • Main electrical features
    • Rated operational voltage Ue
      • 230 V
    • Frequency
      • 50/60 Hz
    • Rated current
      • 25 A
  • Voltage
    • Rated insulation voltage
      • 440 V
    • Rated impulse withstand voltage
      • 4000 V
  • Dimensions
    • Depth of installed product
      • 68 mm
    • Height of installed product
      • 83 mm
    • Width of installed product
      • 17.5 mm
  • Power
    • Total power loss under IN
      • 0.9 W
  • Endurance
    • Electrical durability at nominal load in AC22 in operating cycles
      • 25000
    • Number of mechanical operations
      • 200000
  • Capacity
    • Number of modules
      • 1
  • Installation, mounting
    • Tightening torque
      • 1,8Nm
  • Connection
    • Connection cross-sect. flexible conductor
      • 1,5 / 10mm²
    • Connection cross-sect. rigid cable
      • 1,5 / 16mm²
    • Type of connection
      • with screw
  • Standards
    • Standard text
      • IEC 60947-3
      • IEC/EN 60669-1
    • European directive WEEE
      • concerned
  • Safety
    • Protection index IP
      • IP20
  • Use conditions
    • Operating temperature
      • -20…50 °C
Documentations
Product environmental profile for SFH125 440 KBPDFDownload

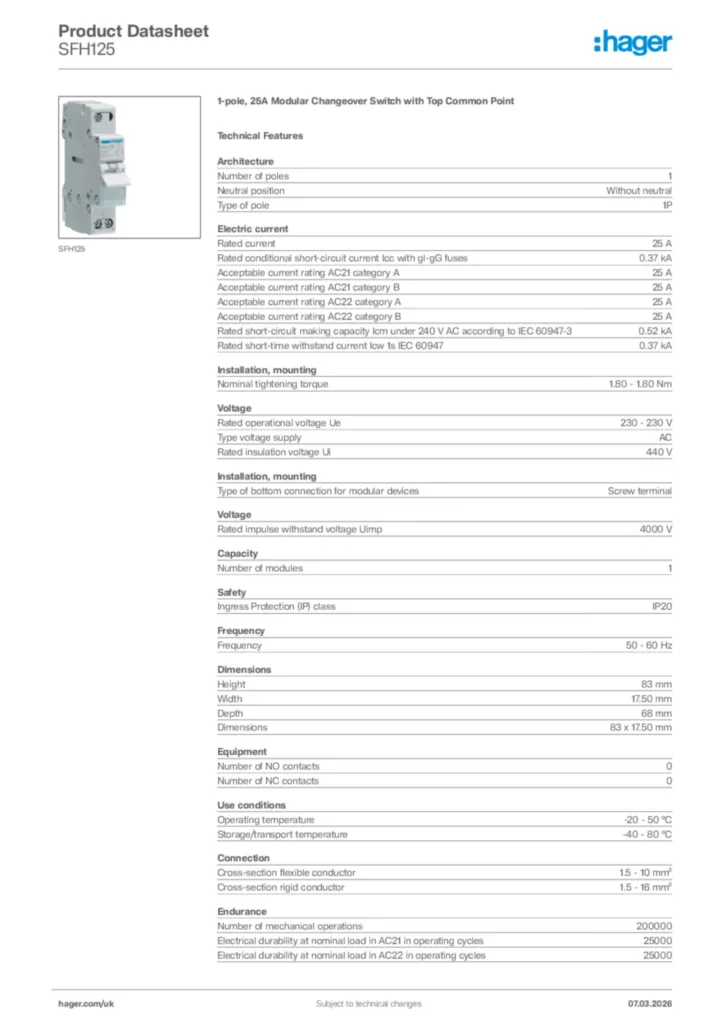

Product data sheets for SFH125 55 KBPDFDownload
