Hager 1P MCB B-32A, 1 module, protects circuits from overloads and short circuits in residential/light commercial boards. Rated 32A (B curve) with 10kA Icn (IEC 60898-1), 15kA Icu and 7.5kA Ics (IEC 60947-2). 230-400V AC, 50-60Hz, 6kV impulse, Ui 500V. Compact 17.5mm, IP20, -25 to 70°C. Screw/biconnect aligned terminals, 360° mounting, 20,000 mechanical ops.

EAN-Nr.

3250614618079

Packaging

12 Pieces

Miniature circuit breakers (MCB and MCB Multipolar)

MCB 1P 32A Curve B 10kA/15kA 230-400V 1 Module NBN132A

Name: NBN132A
Brand: Hager
SKU: NBN132A3
Price: 25.75 GBP

Price

£25.75

/ piece *

Accessories
Technical characteristics
Environmental value
Documentations
More products

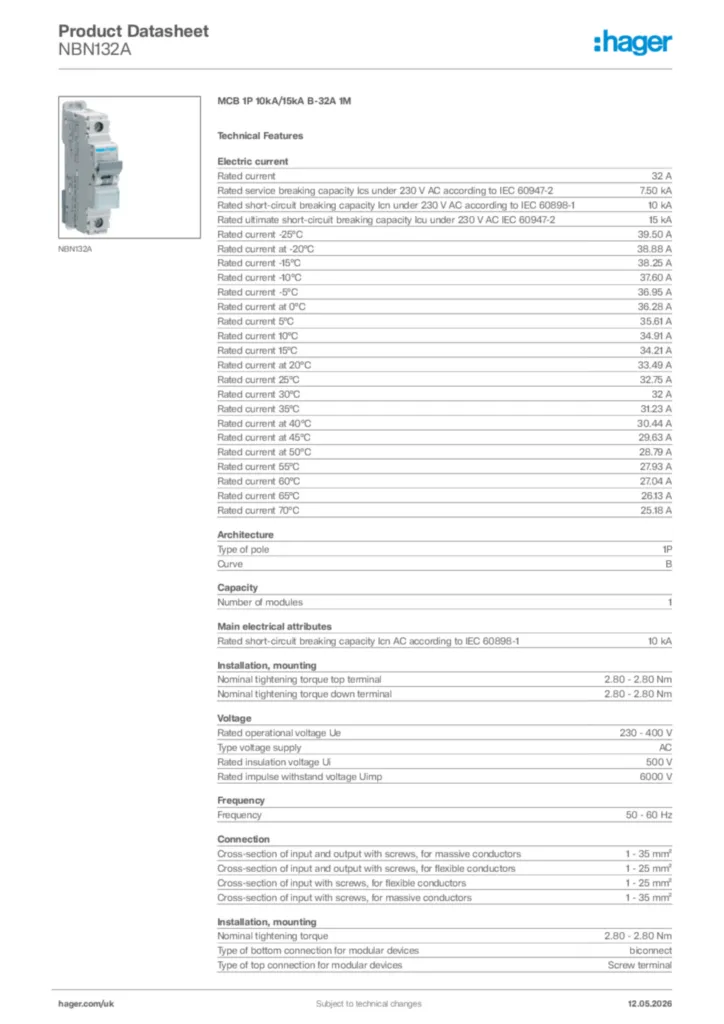

Download the sheet

Complete your system

Locking interlocking functions 2 products available
Mechanic accessories for low-voltage components 1 products available
Auxiliaries contact block 2 products available
Shunt release 2 products available
Under voltage coil 1 products available

Technical characteristics

Rated current

32 A
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

7.50 kA
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

10 kA
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

15 kA
Rated current -15°C

38.25 A
Rated current -10°C

37.60 A
Rated current -5°C

36.95 A
Rated current at 0°C

36.28 A
Rated current 5°C

35.61 A
Rated current 10°C

34.91 A
Rated current 15°C

34.21 A
Rated current at 20°C

33.49 A
Rated current 25°C

32.75 A
Rated current 30°C

32 A
Rated current 35°C

31.23 A
Rated current at 40°C

30.44 A
Rated current at 45°C

29.63 A
Rated current at 50°C

28.79 A
Rated current 55°C

27.93 A
Rated current 60°C

27.04 A
Rated current 65°C

26.13 A
Rated current 70°C

25.18 A
Rated service breaking capacity Ics AC according to IEC 60947-2

50 %
Rated service breaking capacity Ics AC according to IEC 60898-1

7.50 kA

Type of pole

1P
Curve

B

Number of modules

1

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

230 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6,000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

Ingress Protection (IP) class

IP20
Grid distance

60 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Operating temperature

-25 - 70 °C

Total power loss under IN

3.65 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

17.50 mm
Depth

70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
