Moulded Case Circuit Breaker h1000 4P 50kA 630A LSI HNE631H
EAN-Nr.
3250613350055
Packaging
1 piece
Price
£3,756.03
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliaries interlocking cable 2 products available -
Shunt release 5 products available -
Auxiliaries contact block 4 products available -
Padlock barrier for switch 1 products available -
Under voltage coil 11 products available -
See more 9 other products available
Complete your system
-
HXC001H
Shunt trip Release 24V DC (h250-h400-h630-h800-h1000)
£204.11 / piece* -
HXC002HShunt trip Release 48V DC (h250-h400-h630-h800-h1000)
£195.21 / piece* -
HXC003HShunt trip Release 100-120V AC (h250-h400-h630-h800-h1000)
£197.02 / piece* -
HXC004HShunt trip Release 200-240V AC (h250-h400-h630-h800-h1000)
£207.06 / piece* -
HXC005HShunt trip Release 380-450V AC (h250-h400-h630-h800-h1000)
£211.58 / piece*
-
HXC021H
Auxiliary contact 1NO+1NC 230V AC (h250-h400-h630-h800-h1000-h1600)
£102.83 / piece* -
HXC024HAlarm contact 1NO+1NC 230V (h250-h400-h630-h800-h1000-h1600)
£122.72 / piece* -
HXC025HAuxilirary low level 1NO+1NC 125V AC (h250-h400-h630-h800-h1000-h1600)
£148.92 / piece* -
HXC026HAlarm contact low level 1NO+1NC (h250-h400-h630-h800-h1000-h1600)
£148.92 / piece*
-
HXD039H
Padlock h400-h1000
£34.77 / piece*
-
HXE011H
UVR 24V DC (h800-h1000-h1600)
£409.85 / piece* -
HXE013HUVR 110-120V AC (h800-h1000-h1600)
£409.85 / piece* -
HXE014HUVR 220-240V AC (h800-h1000-h1600)
£409.85 / piece* -
HXE015HUVR 380-415V AC (h800-h1000-h1600)
£409.85 / piece* -
HXE051HUndervoltage Release delayed h800-h1600 3P 24VDC
£941.82 / piece* -
HXE053HUndervoltage Release delayed h800-h1600 3P 110-120VAC
£941.82 / piece* -
HXE054HUndervoltage Release delayed h800-h1000 3P 220-240VAC
£941.82 / piece* -
HXE055HUndervoltage Release delayed h800-h1600 3P 380-415VAC
£882.94 / piece* -
HXF051HUndervoltage Release delayed h800-h1600 4P 24VDC
£941.82 / piece* -
HXF053HUndervoltage Release delayed h800-h1600 4P 110-120VAC
£941.82 / piece* -
HXF055HUndervoltage Release delayed h800-h1600 4P 380-415VAC
£882.94 / piece*
-
HXE030HDirect rotary handle H800-H1000
£164.50 / piece* -
HXE031HExtended rotary handle H800-H1000
£55.60 / piece*
-
HXE040HMotor operator h800-h1000 24-48V DC
£2,845.42 / piece* -
HXE042HMotor operator H800-H1000 100-240VAC
£3,079.65 / piece*
-
HXE065HInterlocking wire type H800-H1000
£3,290.05 / piece*
-
HYA035HConnecting kit 3P/4P
£32.36 / piece*
-
HYE032HRear connexion H800-H1000 4P
£791.65 / piece*
-
HYE022HTerminal cover H800-H1000 4P long
£176.20 / piece* -
HYE026HTerminal cover H800-H1000 4P short
£114.14 / piece*
Technical characteristics
Electric current
-
Rated current630 A
-
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-285 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-285 kA
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-250 kA
-
Rated ultimate short-circuit breaking capacity Icu under 415 V AC IEC 60947-250 kA
-
Breaking capacity on 1-pole for AC 230 V IEC 60947-251 kA
-
Breaking capacity on 1-pole for AC 400 V IEC 60947-29 kA
Architecture
-
Number of poles3
-
Control/operation elementToggle
-
Device construction typeFixed built-in
Capacity
-
Number of modules16
Tripping
-
Response time when opening10 ms
Settings
-
Magnetic protection knob setting xIN2.5, 5, 10
-
Range of magnetic adjustment3500 A, 4410 A, 5600 A, 7000 A, 7560 A, 7560 A, 7560 A
-
Thermal protection knob setting xIN0.4, 0.5, 0.63, 0.9, 0.95, 1
-
Adjustment range short-term delayed short-circuit release0 - 0 A
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque65 - 65 Nm
-
Mounting-/Connection PositionFront
Voltage
-
Rated impulse withstand voltage Uimp8,000 V
-
Rated insulation voltage Ui800 V
-
Rated operational voltage Ue220 - 690 V
Functions
-
Trip unitLSI
Main electrical attributes
-
Magnetic protection trip time100 - 200 ms
Power
-
Total power loss under IN90 W
-
Power loss per pole at In30 W
Endurance
-
Electric endurance in number of cycles1,000
-
Number of mechanical operations4,000
Equipment
-
Number of auxiliary contacts as change-over contact0
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as normally open contact0
Safety
-
Ingress Protection (IP) classIP4X
Use conditions
-
Operating temperature-25 - 70 °C
Connection
-
Cross-section flexible conductor2x 240 mm²
-
Cross-section rigid conductor2x 240 mm²
-
Connector/plug typeTerminal
Controls and indicators
-
Motor drive integratedNo
Compatibility
-
Suitable for DIN RailNo
Power supply
-
Position power supplyBidirectional
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-

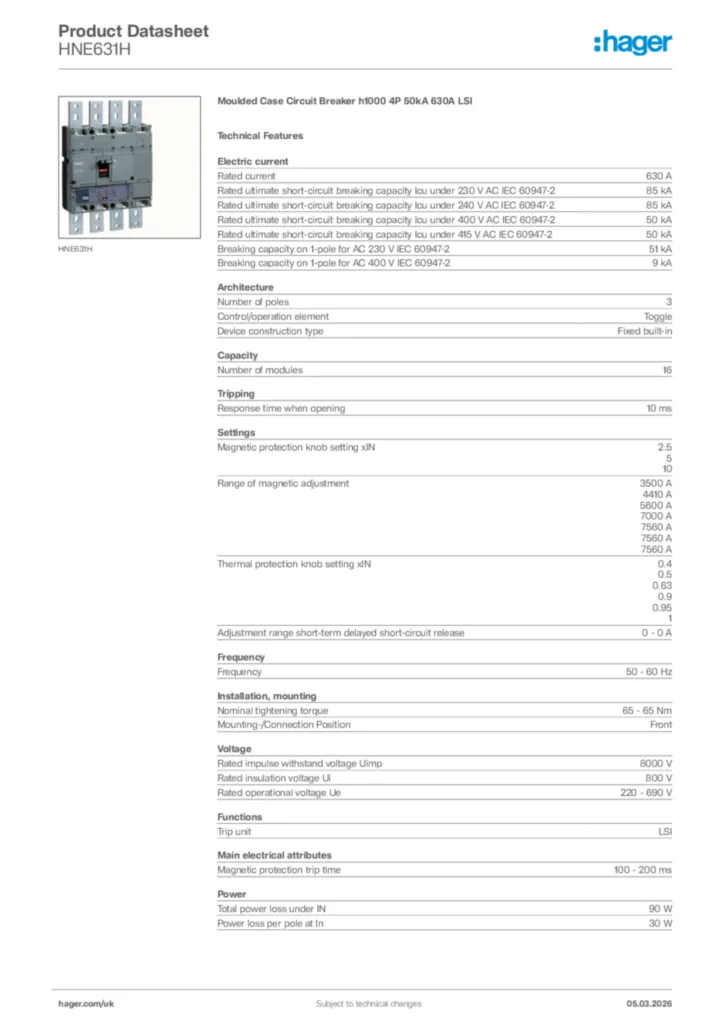

Product image
-
