Switch h1600 4P 1600A HCF991H
Price
£5,605.89
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Handle for power circuit breaker 2 products available -
Padlock barrier for switch 1 products available -
Auxiliaries contact block 4 products available -
Under voltage coil 8 products available -
Auxiliaries interlocking cable 1 products available -
Motor operator 2 products available
Complete your system
-
HXF030H
Direct rotary handle H1250-H1600
£286.40 / piece* -
HXF031HExtended rotary handle H1250-H1600
£387.86 / piece*
-
HXF039H
Padlock H1250-H1600
£136.22 / piece*
-
HXC026H
Alarm contact low level 1NO+1NC (h250-h400-h630-h800-h1000-h1600)
£156.37 / piece* -
HXC021HAuxiliary contact 1NO+1NC 230V AC (h250-h400-h630-h800-h1000-h1600)
£107.97 / piece* -
HXC025HAuxilirary low level 1NO+1NC 125V AC (h250-h400-h630-h800-h1000-h1600)
£156.37 / piece* -
HXC024HAlarm contact 1NO+1NC 230V (h250-h400-h630-h800-h1000-h1600)
£128.86 / piece*
-
HXF054H
Undervoltage Release delayed h1600 4P 220-240VAC
£988.91 / piece* -
HXF051HUndervoltage Release delayed h800-h1600 4P 24VDC
£988.91 / piece* -
HXF055HUndervoltage Release delayed h800-h1600 4P 380-415VAC
£927.09 / piece* -
HXF053HUndervoltage Release delayed h800-h1600 4P 110-120VAC
£988.91 / piece* -
HXE015HUVR 380-415V AC (h800-h1000-h1600)
£430.34 / piece* -
HXE013HUVR 110-120V AC (h800-h1000-h1600)
£430.34 / piece* -
HXE014HUVR 220-240V AC (h800-h1000-h1600)
£430.34 / piece* -
HXE011HUVR 24V DC (h800-h1000-h1600)
£430.34 / piece*
-
HXF042H
Motor operator H1250-H1600 200-230VAC
£4,098.59 / piece* -
HXF040HMotor operator h1250-h1600 24V DC
£4,098.59 / piece*
Technical characteristics
Electric current
-
Rated current1,600 A
Architecture
-
Number of poles4
-
Control/operation elementToggle
Connection
-
Cross-section rigid conductor3x 240 mm²
-
Cross-section flexible conductor3x 240 mm²
Voltage
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8,000 V
Tripping
-
Response time when opening10 ms
Frequency
-
Frequency50 - 60 Hz
Equipment
-
Motor drive optionalYes
Functions
-
Trip unitSwitch
Power
-
Power loss per pole at In56.30 W
-
Total power loss under IN168.90 W
-
Rated operational power under 400 V AC AC11,053,000 W
Use conditions
-
Operating temperature-25 - 70 °C
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP4X
Downloads
-
Product image
-

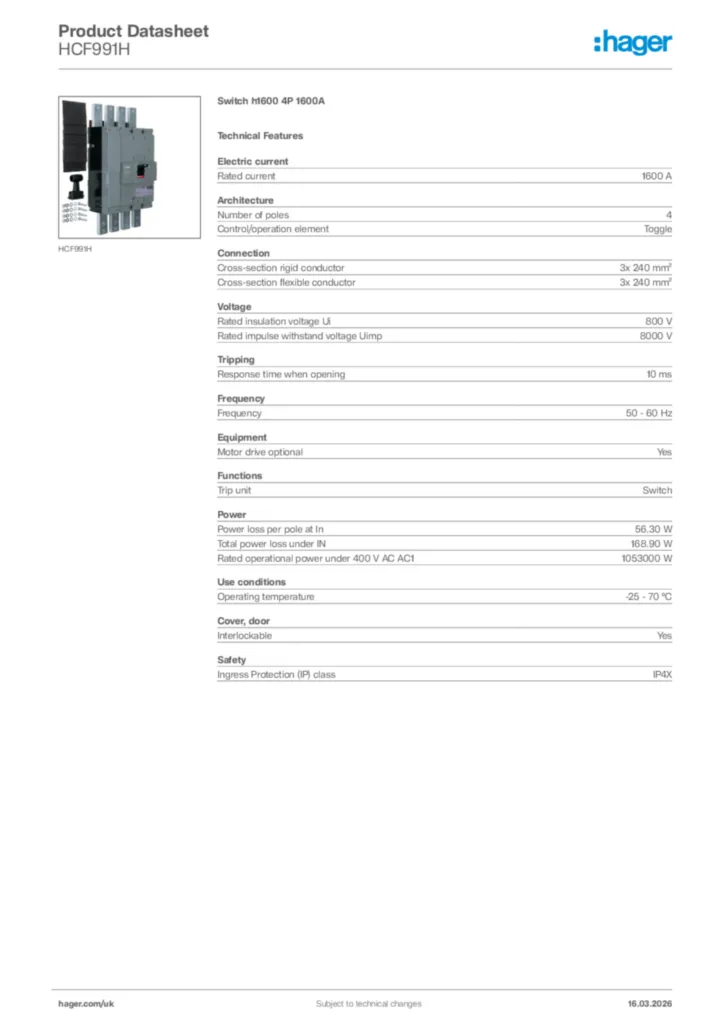

Product datasheet
Hager Product data sheet HCF991H
Switch h1600 4P 1600A
PDF -
Installation manual
Installation manual International 2021-06-07
PDF3,62 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-08-17
PDF298,77 kB
Declaration
Declaration of conformity International 2022-06-21
PDF284,53 kB
