Switch h1000 3P 1000A HCE970H
EAN-Nr.
3250613363192
Packaging
1 piece
Price
£4,239.29
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Terminal cover 2 products available -
Handle for power circuit breaker 2 products available -
Padlock barrier for switch 1 products available -
Under voltage coil 8 products available -
Shunt release 5 products available -
Auxiliaries contact block 4 products available
Complete your system
-
HYE021H
Terminal cover H800-H1000 3P long
£112.39 / piece* -
HYE025HTerminal cover H800-H1000 3P short
£124.35 / piece*
-
HXE031H
Extended rotary handle H800-H1000
£870.00 / piece* -
HXE030HDirect rotary handle H800-H1000
£164.50 / piece*
-
HXD039H
Padlock h400-h1000
£34.77 / piece*
-
HXE054H
Undervoltage Release delayed h800-h1000 3P 220-240VAC
£941.82 / piece* -
HXE053HUndervoltage Release delayed h800-h1600 3P 110-120VAC
£941.82 / piece* -
HXE055HUndervoltage Release delayed h800-h1600 3P 380-415VAC
£882.94 / piece* -
HXE015HUVR 380-415V AC (h800-h1000-h1600)
£409.85 / piece* -
HXE013HUVR 110-120V AC (h800-h1000-h1600)
£409.85 / piece* -
HXE014HUVR 220-240V AC (h800-h1000-h1600)
£409.85 / piece* -
HXE011HUVR 24V DC (h800-h1000-h1600)
£409.85 / piece* -
HXE051HUndervoltage Release delayed h800-h1600 3P 24VDC
£941.82 / piece*
-
HXC004H
Shunt trip Release 200-240V AC (h250-h400-h630-h800-h1000)
£207.06 / piece* -
HXC002HShunt trip Release 48V DC (h250-h400-h630-h800-h1000)
£195.21 / piece* -
HXC003HShunt trip Release 100-120V AC (h250-h400-h630-h800-h1000)
£197.02 / piece* -
HXC005HShunt trip Release 380-450V AC (h250-h400-h630-h800-h1000)
£211.58 / piece* -
HXC001HShunt trip Release 24V DC (h250-h400-h630-h800-h1000)
£204.11 / piece*
-
HXC026H
Alarm contact low level 1NO+1NC (h250-h400-h630-h800-h1000-h1600)
£148.92 / piece* -
HXC021HAuxiliary contact 1NO+1NC 230V AC (h250-h400-h630-h800-h1000-h1600)
£102.83 / piece* -
HXC025HAuxilirary low level 1NO+1NC 125V AC (h250-h400-h630-h800-h1000-h1600)
£148.92 / piece* -
HXC024HAlarm contact 1NO+1NC 230V (h250-h400-h630-h800-h1000-h1600)
£122.72 / piece*
-
HXE042HMotor operator H800-H1000 100-240VAC
£3,079.65 / piece* -
HXE040HMotor operator h800-h1000 24-48V DC
£2,845.42 / piece*
-
HYA035HConnecting kit 3P/4P
£32.36 / piece*
-
HXE065HInterlocking wire type H800-H1000
£3,290.05 / piece*
-
HYE033HRear connexion h1000 3P
£674.01 / piece*
Technical characteristics
Electric current
-
Rated current1,000 A
Architecture
-
Number of poles3
-
Control/operation elementToggle
Connection
-
Cross-section rigid conductor2x 240 mm²
-
Cross-section flexible conductor2x 240 mm²
Voltage
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8,000 V
Tripping
-
Response time when opening10 ms
Frequency
-
Frequency50 - 60 Hz
Equipment
-
Motor drive optionalYes
Functions
-
Trip unitSwitch
Power
-
Power loss per pole at In62 W
-
Total power loss under IN186 W
-
Rated operational power under 400 V AC AC1658,000 W
Use conditions
-
Operating temperature-25 - 70 °C
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP4X
Downloads
-
Product image
-
Product datasheet

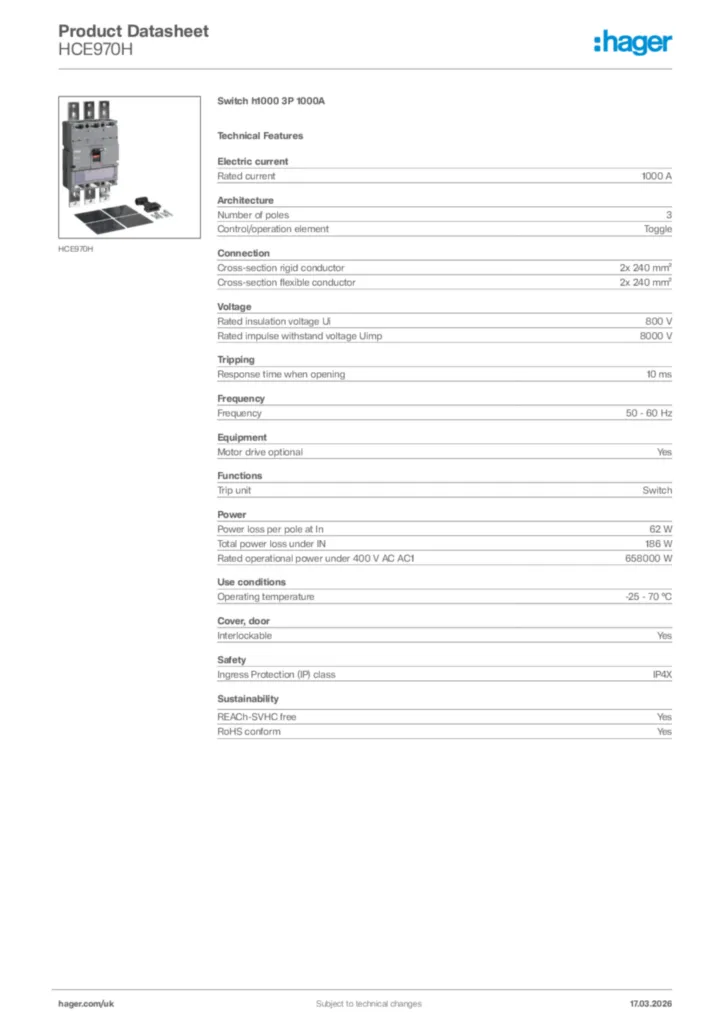

Hager Product data sheet HCE970H
Switch h1000 3P 1000A
PDF -
Installation manual
Installation manual International 2021-06-16
PDF7,89 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-06-27
PDF330,83 kB
Declaration
Declaration of conformity International 2022-06-21
PDF316,45 kB
