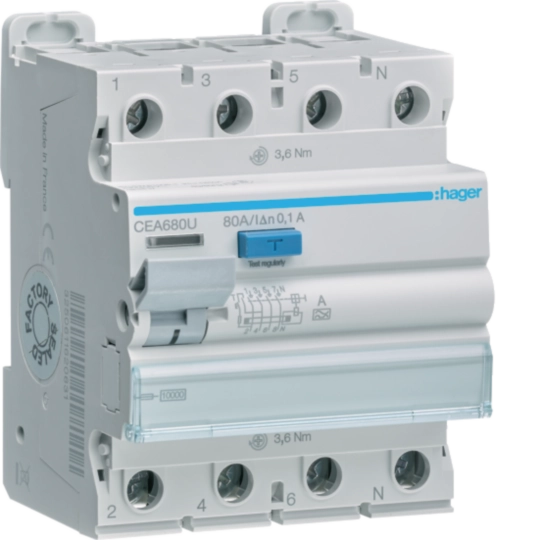

RCCB 3P+N 80A 100mA A CEA680U
EAN-Nr.
3250611624011
Packaging
1 piece
Price
£297.26
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Neutral positionright
-
Number of poles4 P
-
Type of pole3P+N
Main electrical features
-
Rated operational voltage Ue230 / 400 V
-
Frequency50/60 Hz
-
Type of supply voltageAC
Voltage
-
Rated insulation voltage500 V
-
Max operating voltage440 V
-
Rated impulse withstand voltage4000 V
Electric current
-
Rated residual operating current100 mA
-
Rated conditional short-circuit current Inc according to EN 61008-110 kA
Electric current / temperature
-
Rating current 30°C80 A
Dimensions
-
Depth of installed product70 mm
-
Height of installed product85 mm
-
Width of installed product72 mm
Power
-
Total power loss under IN15.8 W
Tripping
-
Short-time delayed trippingNo
Endurance
-
Electric endurance in number of cycles10000
-
Number of mechanical operations20000
Equipment
-
Quick connectno
-
Can be accessorizedYes
Standards
-
Standard textEN 61008-1
Safety
-
Residual current typeA
Use conditions
-
Operating temperature-25…70 °C
