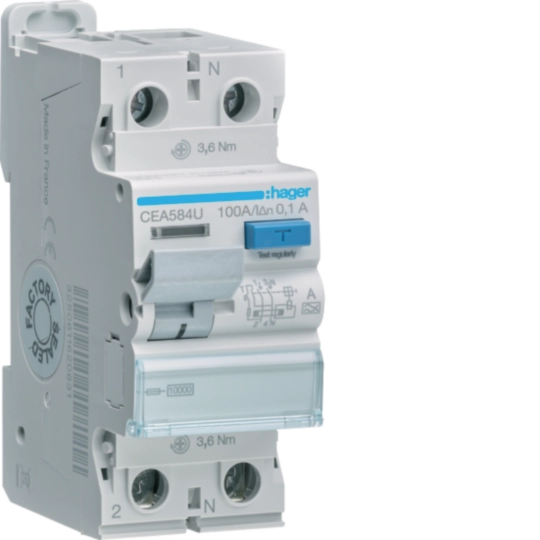

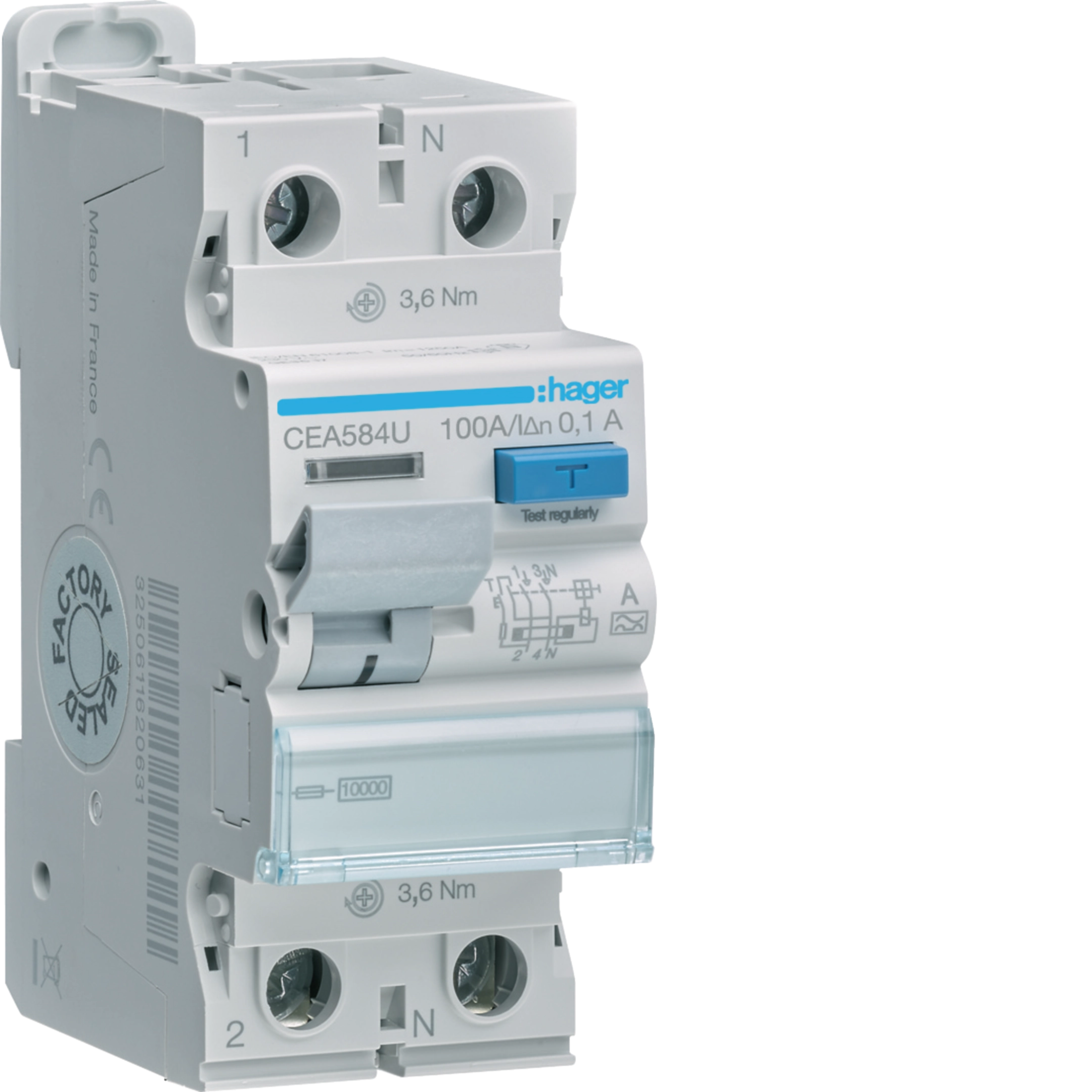

RCCB 1P+N 100A 100mA A CEA584U
EAN-Nr.
3250611624004
Packaging
1 piece
Price
£291.63
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Neutral positionright
-
Number of poles2 P
-
Type of pole1P+N
Main electrical features
-
Rated operational voltage Ue230 V
-
Frequency50/60 Hz
-
Type of supply voltageAC
Voltage
-
Rated insulation voltage500 V
-
Max operating voltage253 V
-
Rated impulse withstand voltage4000 V
Electric current
-
Rated residual operating current100 mA
-
Rated conditional short-circuit current Inc according to EN 61008-110 kA
Electric current / temperature
-
Rating current 30°C100 A
Dimensions
-
Depth of installed product70 mm
-
Height of installed product85 mm
-
Width of installed product36 mm
Power
-
Total power loss under IN13.89 W
Tripping
-
Short-time delayed trippingNo
Endurance
-
Electric endurance in number of cycles10000
-
Number of mechanical operations20000
Equipment
-
Quick connectno
-
Can be accessorizedYes
Standards
-
Standard textEN 61008-1
Safety
-
Residual current typeA
Use conditions
-
Operating temperature-25…50 °C
Downloads
-
Product image
-
Catalogue
Commercial Distribution Catalogue
PDF14 MB
Residential Distribution Catalogue
PDF4 MB -
Declaration of conformity
EU Declaration of conformity for CEA584U
Declaration
PDF941 KB
EU Declaration of conformity for CEA584U
Declaration
PDF1 MB -
PEP document
Product environmental profile for CEA584U
PEP document en-GB 2022-09-02
PDF381 KB -
RoHS report
Pollutant guidelines for CEA584U
RoHS declaration CEA584U (english)
PDF103 KB
More documentation
