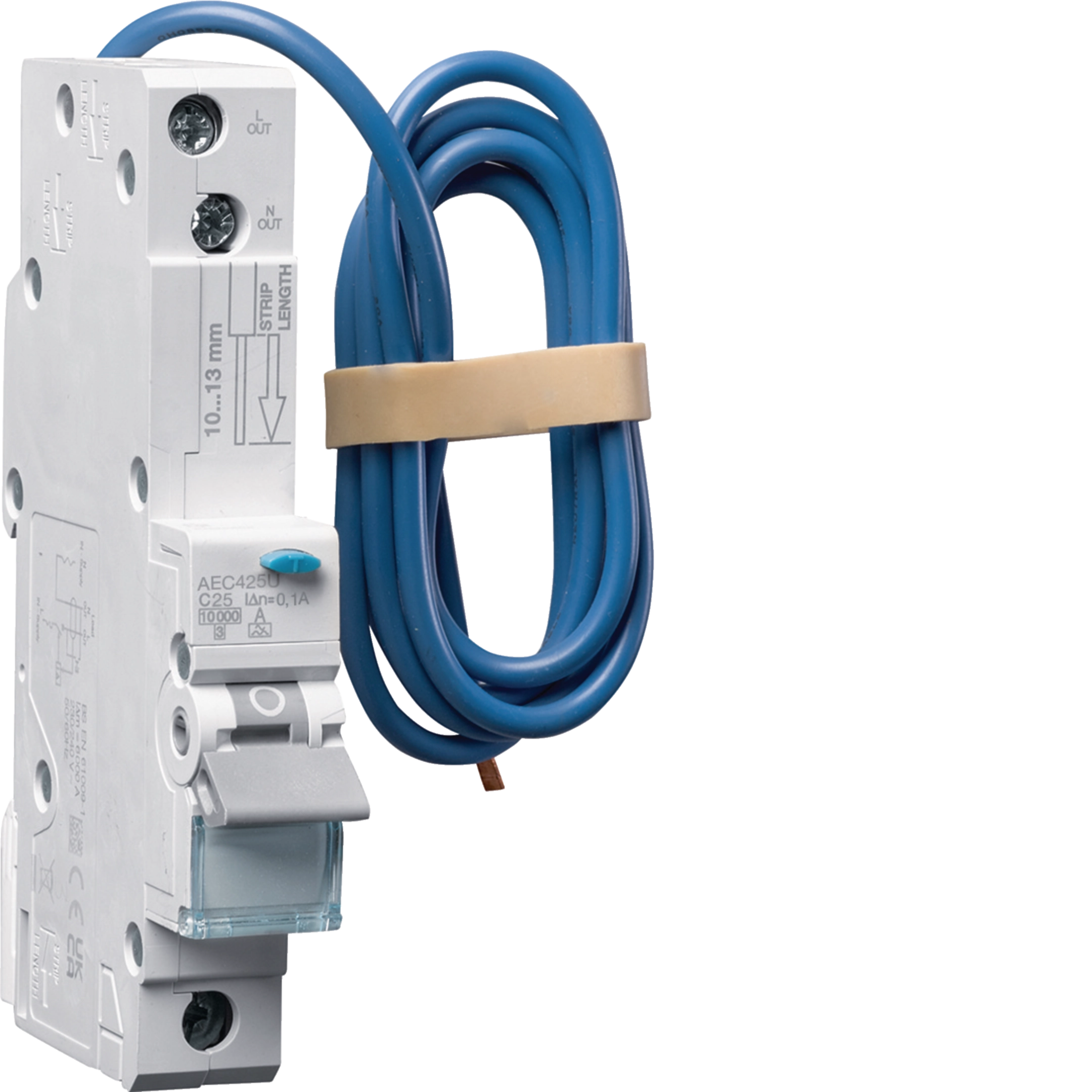

RCBO 1M 1P 10kA C-25A 100mA A AEC425U
EAN-Nr.
3250611037361
Packaging
1 piece
Price
£179.25
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Neutral positionright
-
Number of poles1 P
-
Type of pole1 P
-
CurveC
Main electrical features
-
Rated operational voltage Ue230 / 240 V
-
Frequency50/60 Hz
-
Type of supply voltageAC
Voltage
-
Rated insulation voltage250 V
-
Rated impulse withstand voltage4000 V
Electric current
-
Rated residual operating current100 mA
Electric current / temperature
-
Rating current 30°C25 A
Dimensions
-
Depth of installed product70 mm
-
Height of installed product115 mm
-
Width of installed product17.8 mm
Power
-
Total power loss under IN8.4 W
Endurance
-
Electric endurance in number of cycles2000
-
Number of mechanical operations10000
Equipment
-
Quick connectno
-
Can be accessorizedNo
Standards
-
Standard textBS 61009-1 ; EN 61009-1
Safety
-
Residual current typeA
Use conditions
-
Operating temperature-25…40 °C
