RCBO Electronic 1P 6kA B Curve - 6A, 30mA Type A(AC & Pulsating DC Sensitive)1M ADA306G

Name: ADA306G
Brand: Hager
SKU: ADA306G6
Price: 90.02 GBP

EAN-Nr.

3250611012955

Packaging

1 piece

Price

£90.02

/ piece *

Accessories
Technical characteristics
Environmental value

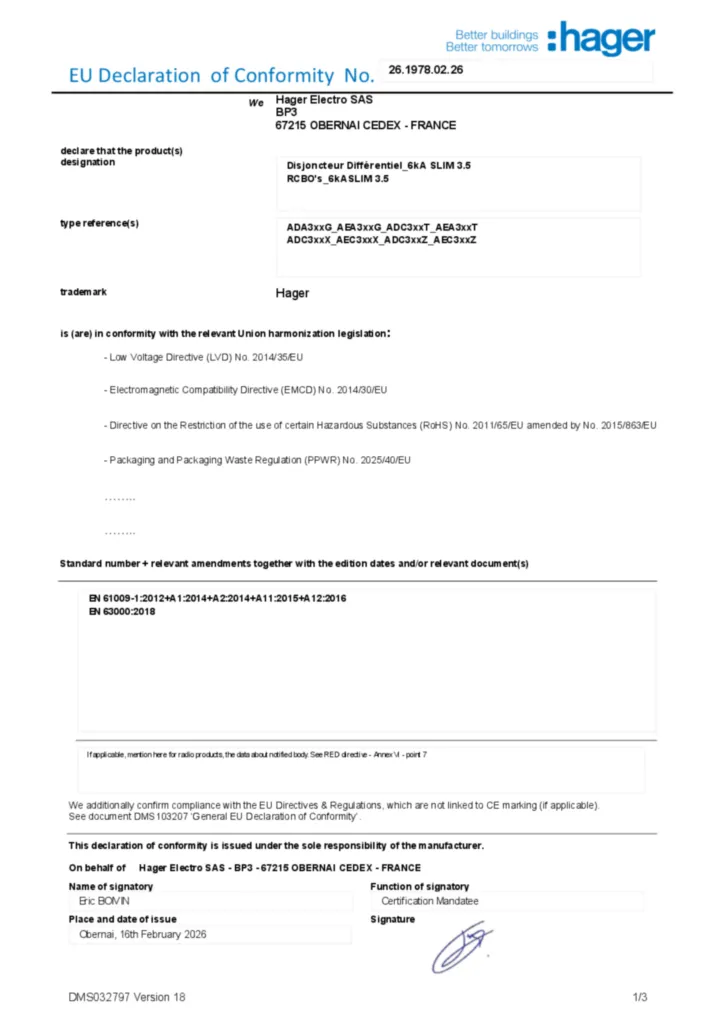

Documentations
More products

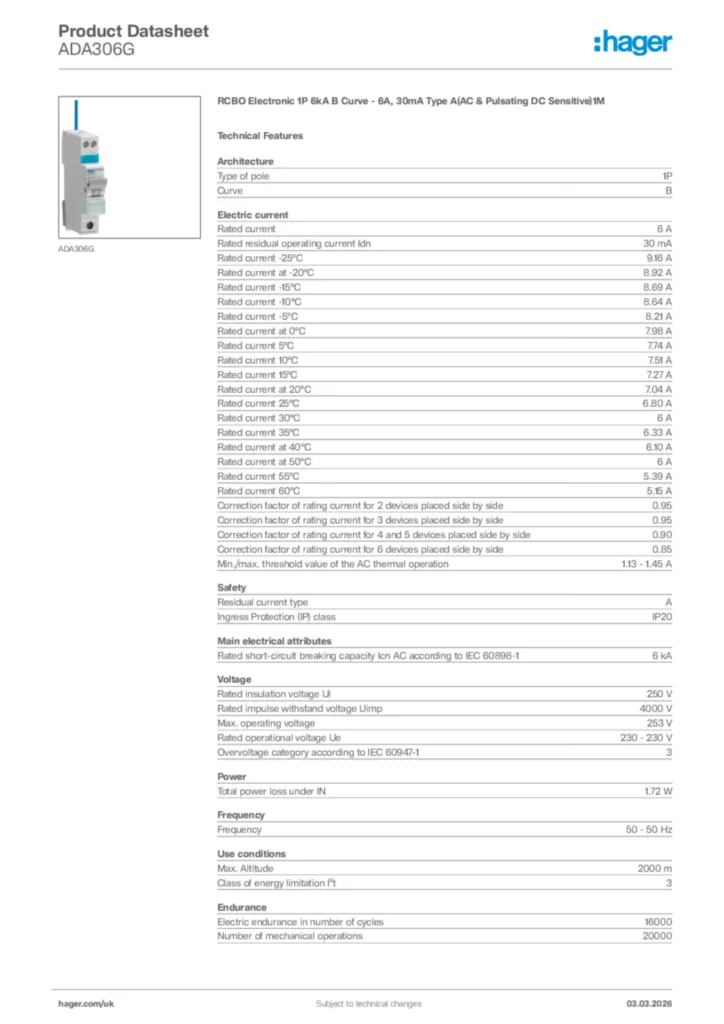

Download the sheet

Complete your system

Locking interlocking functions 1 products available

Technical characteristics

Type of pole

1P
Curve

B

Rated current

6 A
Rated residual operating current Idn

30 mA
Rated current -25°C

9.16 A
Rated current at -20°C

8.92 A
Rated current -15°C

8.69 A
Rated current -10°C

8.64 A
Rated current -5°C

8.21 A
Rated current at 0°C

7.98 A
Rated current 5°C

7.74 A
Rated current 10°C

7.51 A
Rated current 15°C

7.27 A
Rated current at 20°C

7.04 A
Rated current 25°C

6.80 A
Rated current 30°C

6 A
Rated current 35°C

6.33 A
Rated current at 40°C

6.10 A
Rated current at 50°C

6 A
Rated current 55°C

5.39 A
Rated current 60°C

5.15 A
Correction factor of rating current for 2 devices placed side by side

0.95
Correction factor of rating current for 3 devices placed side by side

0.95
Correction factor of rating current for 4 and 5 devices placed side by side

0.90
Correction factor of rating current for 6 devices placed side by side

0.85
Min./max. threshold value of the AC thermal operation

1.13 - 1.45 A

Residual current type

A
Ingress Protection (IP) class

IP20

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Rated insulation voltage Ui

250 V
Rated impulse withstand voltage Uimp

4,000 V
Max. operating voltage

253 V
Rated operational voltage Ue

230 - 230 V
Overvoltage category according to IEC 60947-1

3

Total power loss under IN

1.72 W

Frequency

50 - 50 Hz

Max. Altitude

2,000 m
Class of energy limitation I²t

3
Operating temperature

-20 - 70 °C
Storage/transport temperature

-25 - 80 °C

Electric endurance in number of cycles

16,000
Number of mechanical operations

20,000

Cross-section of input with screws, for flexible conductors

1 - 10 mm²
Cross-section of input with screws, for massive conductors

1 - 16 mm²

Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

Screw terminal

Number of modules

1

Height

92 mm
Width

17.70 mm
Depth

70 mm

Suitable for DIN Rail

Yes
