RCBO 1P+N 4.5kA C-16A 30mA AC Class ADC816F

EAN-Nr.

3250611062752

Packaging

1 piece

£189.35

/ piece *

Technical characteristics
Documentations
Accessories
More products

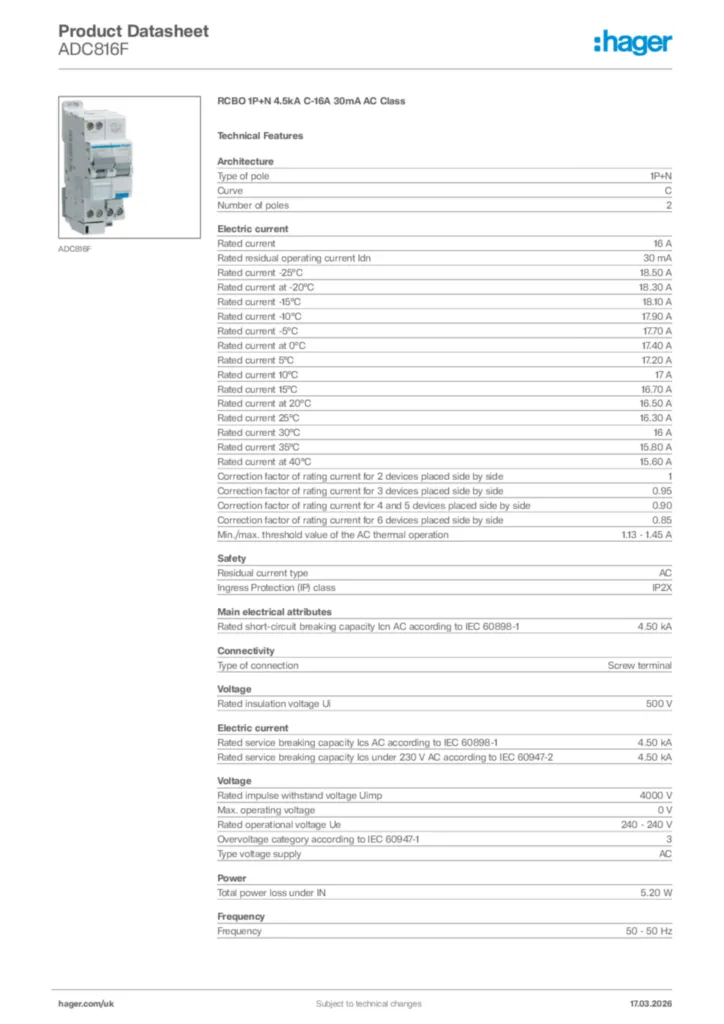

Download the sheet

Technical characteristics

Neutral position

left
Number of poles

2 P
Type of pole

1P+N
Curve

C

Rated operational voltage Ue

240 V
Frequency

50 Hz

Rated insulation voltage

500 V
Max operating voltage

0 V
Rated impulse withstand voltage

4 kV

Rated residual operating current

30 mA
Rated short circuit breaking capacity Icn under 230V AC according IEC60898-1

4.5 kA

Rating current 30°C

16 A

Depth of installed product

68 mm
Height of installed product

0 mm
Width of installed product

0 mm

Total power loss under IN

5.2 W

Short-time delayed tripping

No

Electric endurance in number of cycles

0
Number of mechanical operations

0

Tightening torque

10Nm

Connection cross-sect. flexible conductor

1,5 bis 95mm²
Connection cross-sect. rigid cable

1,5 to 95mm2
Type of connection

with screw

Standard text

EN 61009-1

Residual current type

AC

Operating temperature

-25…40 °C

Downloads

Product image

Product Image ADC816F
Catalogue

Commercial Distribution Catalogue

PDF

14 MB
Declaration of conformity

EU Declaration of conformity for ADC816F

Declaration

PDF

740 KB

EU Declaration of conformity for ADC816F

Declaration

PDF

376 KB
PEP document

Product environmental profile for ADC816F

PDF

357 KB
RoHS report

Pollutant guidelines for ADC816F

REACH-declaration 2023-10-20 (english)

PDF

33 KB

More documentation
