The Hager cubyko LED signal light delivers clear visual indication for controls and alerts. Operating at 230 V, 50-60 Hz, it uses an efficient LED. IP55 protection and robust thermoplastic with matt grey RAL7011 finish ensure durability. Compact at 71×71×48 mm with screw mounting, it integrates into the cubyko system. Ideal for outdoor, damp, or industrial areas, it offers reliable signalling and easy modular installation.
EAN
3250617174633
Packaging
1 Piece
LED indicator lamp 230V Blue for gallery switch, 0.5 mA WNA603
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Surface-mounted housing for flush-mounted switching device 6 products available -
Cover frame for domestic switching devices 4 products available
Compatible products
-
Referenced by 19 products available
Complete your system
-
WNA686cubyko Double vertical box empty grey IP55
-
WNA682cubyko Double horizontal box empty with 2 sliders grey IP55
-
WNA681cubyko Single box empty grey IP55
-
WNA685
cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA684cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA683Surface-mounted lower casing 3gang hor., w. frame and cable entries W.1 grey
Referenced by
-
WNA682Bcubyko Double horizontal box empty with 2 sliders white IP55
-
WNA403Frame 3g horizontal for flush-mounted installation, with sealing W.1light grey
-
WNA401
Frame 1gang for flush-mtd inst., sealing, W.1 ECO, light grey matt
-
WNA401BFrame 1gang for flush-mounted installation, with sealing, W.1, polar white
-
WNA686BSurface-mounted lower casing 2gang vertical, w. frame and cable entries W.1 pw
-
WNA683
Surface-mounted lower casing 3gang hor., w. frame and cable entries W.1 grey
-
WNA683BSurface-mounted lower casing 3gang horizontal, w. frame and cable entries W.1 pw
-
WNA684
cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA681BSurface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA402Bcubyko Double horizontal flush adapter white IP55
-
WNA686
cubyko Double vertical box empty grey IP55
-
WNA685
cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA681
cubyko Single box empty grey IP55
-
WNA408Bcubyko Double vertical flush adapter white IP55
-
WNA403Bcubyko Triple horizontal flush adapter white IP55
-
WNA408cubyko Double vertical flush adapter grey IP55
-
WNA402cubyko Double horizontal flush adapter grey IP55
-
WNA682
cubyko Double horizontal box empty with 2 sliders grey IP55
-
WNA685Bcubyko Double horizontal box empty with 4 sliders white IP55
Technical properties
Voltage
-
Rated voltage230 V
Frequency
-
Frequency50 - 60 Hz
Lighting
-
Type of lampLED
Materials
-
ColourGrey
-
RAL code7011
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth48 mm
Connectivity
-
Mounting typeScrew mounting
Safety
-
Ingress Protection (IP) classIP55
-
Related Systemscubyko
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

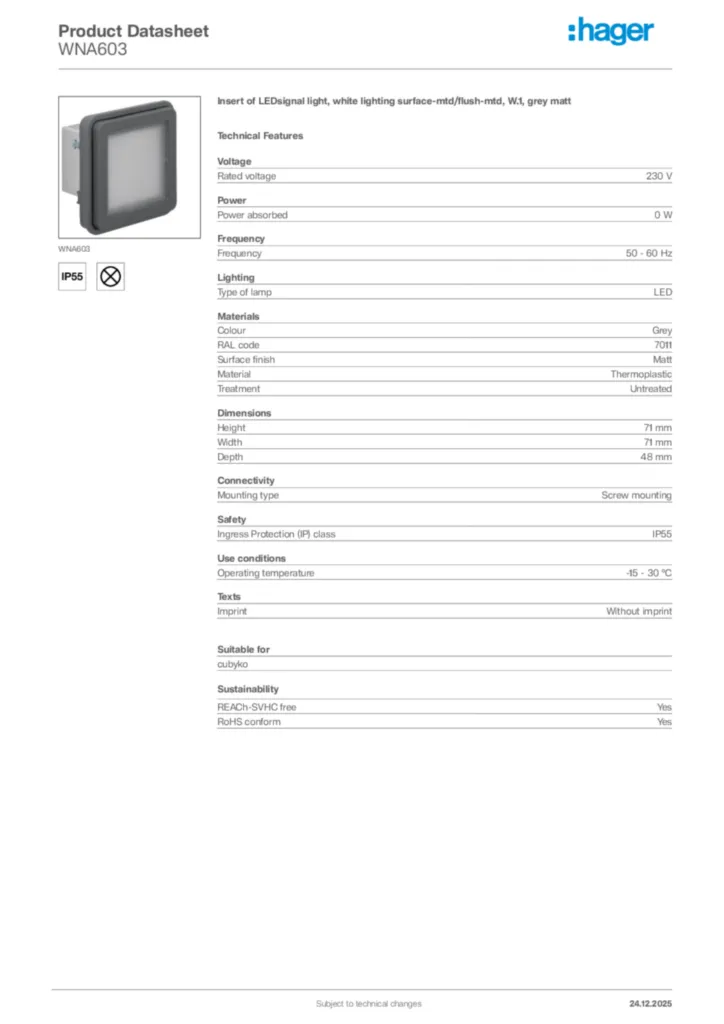

Product datasheet
