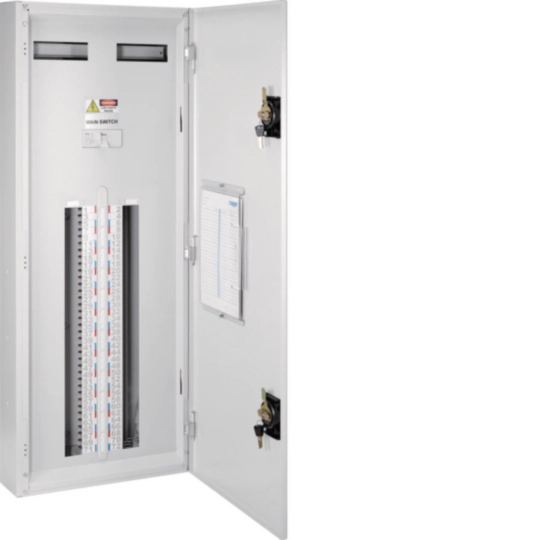

The Hager Invicta 250A TPN distribution board features a 72‑pole fixed‑load chassis and fitted main isolator, ideal for reliable power distribution in commercial and light‑industrial installations. Offers 24‑module capacity. Surface‑mount steel enclosure (RAL7035) with key lock, IP30, IK05, Class I. Compact 1235×480×135 mm for secure, tidy panel layouts. Designed for reliable installation in residential and commercial switchboards,suitable for DIN rail mounting.
EAN
3250611101246
Packaging
1 Piece
Hager Invicta TPN Board 250A 72P Fixed Chassis IP30 Key Lock Isolator JVC7200S25TW
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
RCBO BS electronic type A 6 kA (EN/IEC61009) 16 products available -
MCB multi-pole 63 A 6 kA (EN/IEC60898) 29 products available -
Accessories/spare parts for low-voltage switch technology 7 products available -
AOB electronic TPN type A 2 products available -
Emergency lighting kit 2 products available -
AOB electronic TPN type A 1 products available
Complete your system
-
ADC906T
RCBO 1M 1P+N 6kA C-6A 30mA A
-
ADC910TRCBO 1M 1P+N 6kA C-10A 30mA A
-
ADC913TRCBO 1M 1P+N 6kA C-13A 30mA A
-
ADC916TRCBO 1M 1P+N 6kA C-16A 30mA A
-
ADC920TRCBO 1M 1P+N 6kA C-20A 30mA A
-
ADC925TRCBO 1M 1P+N 6kA C-25A 30mA A
-
ACC910TRCBO 1M 1P+N 6kA C-10A 10mA A
-
ACC916TRCBO 1M 1P+N 6kA C-16A 10mA A
-
ACC920TRCBO 1M 1P+N 6kA C-20A 10mA A
-
ACC925TRCBO 1M 1P+N 6kA C-25A 10mA A
-
ACC932TRCBO 1M 1P+N 6kA C-32A 10mA A
-
ADD910TRCBO 1M 1P+N 6kA D-10A 30mA A
-
ADD916TRCBO 1M 1P+N 6kA D-16A 30mA A
-
ADD920TRCBO 1M 1P+N 6kA D-20A 30mA A
-
ADD925TRCBO 1M 1P+N 6kA D-25A 30mA A
-
ADC932TRCBO 1M 1P+N 6kA C-32A 30mA A
-
MSN306MCB 3P 6kA C-6A 3M
-
MSN316
MCB 3P 6kA C-16A 3M
-
MSN310
MCB 3P 6kA C-10A 3M
-
MSN216MCB 2P 6kA C-16A 2M
-
MSN210
MCB 2P 6kA C-10A 2M
-
MSN120MCB 1P 6kA C-20A 1M
-
MSN116MCB 1P 6kA C-16A 1M
-
MSN110MCB 1P 6kA C-10A 1M
-
MSN363RMCB 3P 6kA C-63A 3M
-
MSN363MCB 3P 6kA C-63A 3M
-
MSN350MCB 3P 6kA C-50A 3M
-
MSN340MCB 3P 6kA C-40A 3M
-
MSN332MCB 3P 6kA C-32A 3M
-
MSN325MCB 3P 6kA C-25A 3M
-
MSN320
MCB 3P 6kA C-20A 3M
-
MSN106
MCB 1P 6kA C-6A 1M
-
MSN263RMCB 2P 6kA C-63A 2M
-
MSN263MCB 2P 6kA C-63A 2M
-
MSN250MCB 2P 6kA C-50A 2M
-
MSN240MCB 2P 6kA C-40A 2M
Technical properties
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Rated current250 A
-
Breaking and opening capacity Idm0
Equipment
-
With lockYes
-
Has mounting plateNo
-
Equipped with switchIsolator
-
Number of switches1
-
Type of busbar chassisFixed load chassis
Capacity
-
Number of modules24
Dimensions
-
Height1235 mm
-
Width480 mm
-
Depth135 mm
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP30
-
Locking typeKey lock, With lock
Architecture
-
Number of poles72
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

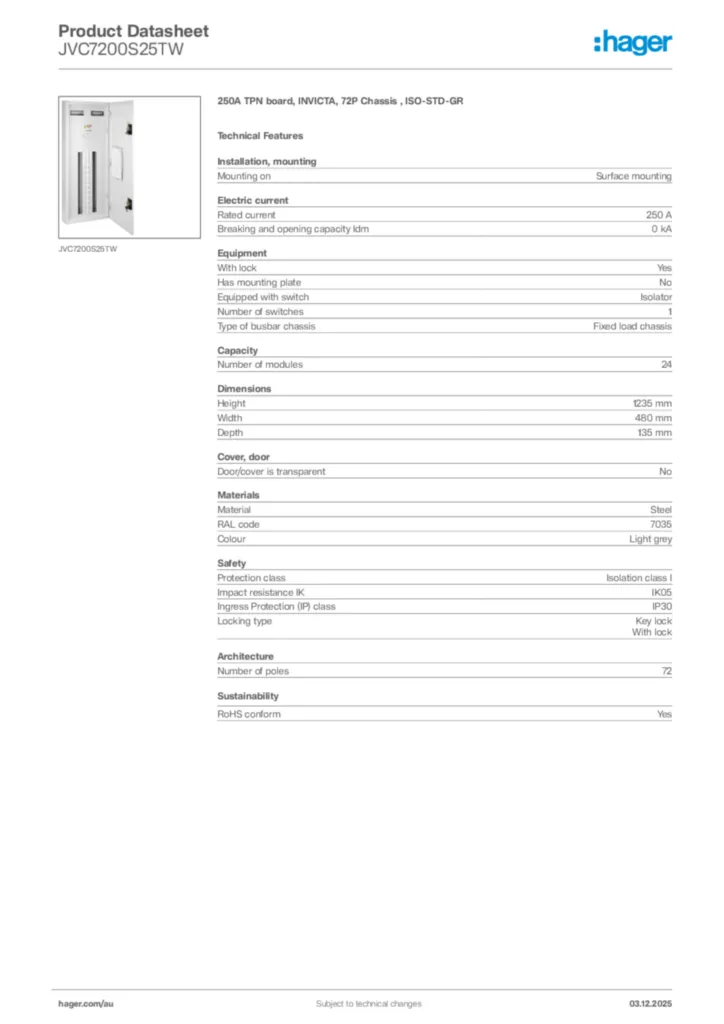

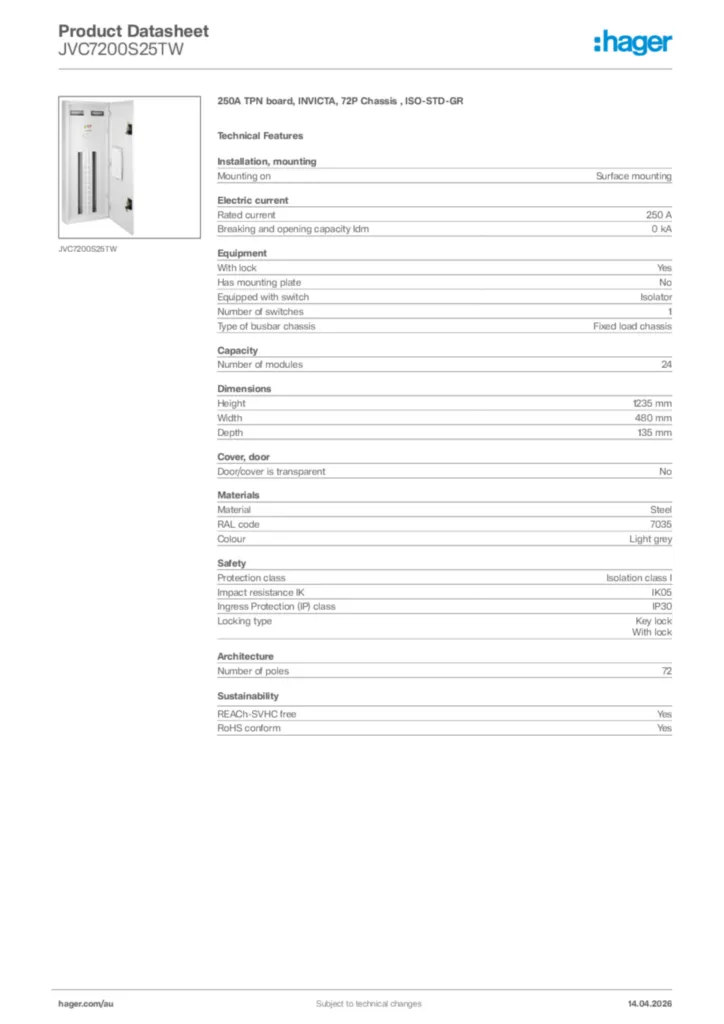

Hager Product data sheet JVC7200S25TW
250A TPN board, INVICTA, 72P Chassis , ISO-STD-GR
PDF -
Installation manual
Installation manual en-GB 2025-07-25
PDF22,52 MB -
Brochure
Hager - invicta Panelboard Brochure
PDF3,59 MB -
Product data sheet
Invicta Product Data and Technical Specification
Product data sheet en-GB 2019-03-13
PDF133,21 kB
