DIN rail-mounted devices

MCB 2P 6kA C-40A 2M MSN240

EAN

3250614323584

Packaging

6

Accessories
Technical properties
Environmental value
Documentations
More products

Download the data sheet

Complete your system

Locking interlocking functions 1 products available
Mechanic accessories for low-voltage components 1 products available
Under voltage coil 1 products available
Shunt release 2 products available

Suitable with 10 products available

Technical properties

Rated current

40 A
Rated current -15°C

49,5 A
Rated current -10°C

48,5 A
Rated current -5°C

47,5 A
Rated current at 0°C

46,5 A
Rated current 5°C

45,5 A
Rated current 10°C

44,5 A
Rated current 15°C

43,4 A
Rated current at 20°C

42,3 A
Rated current 25°C

41,2 A
Rated current 30°C

40 A
Rated current 35°C

38,8 A
Rated current at 40°C

37,6 A
Rated current at 45°C

36,3 A
Rated current at 50°C

35 A
Rated current 55°C

33,6 A
Rated current 60°C

32,2 A
Rated current 65°C

30,7 A
Rated current 70°C

29,1 A

Type of pole

2P
Curve

C

Number of modules

2

Nominal tightening torque top terminal

2,80 - 2,80 Nm
Nominal tightening torque down terminal

2,80 - 2,80 Nm
Nominal tightening torque

2,80 - 2,80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Rated operational voltage Ue

415 - 415 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²
Cross-section flexible conductor

1 - 25 mm²
Cross-section rigid conductor

1 - 35 mm²

Ingress Protection (IP) class

IP20

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Total power loss under IN

10,5 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

35 mm
Depth

70 mm

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration MSN240

PDF

Hager RoHS report MSN240

PDF

Downloads

Product image

Product Image MSN240
Product datasheet

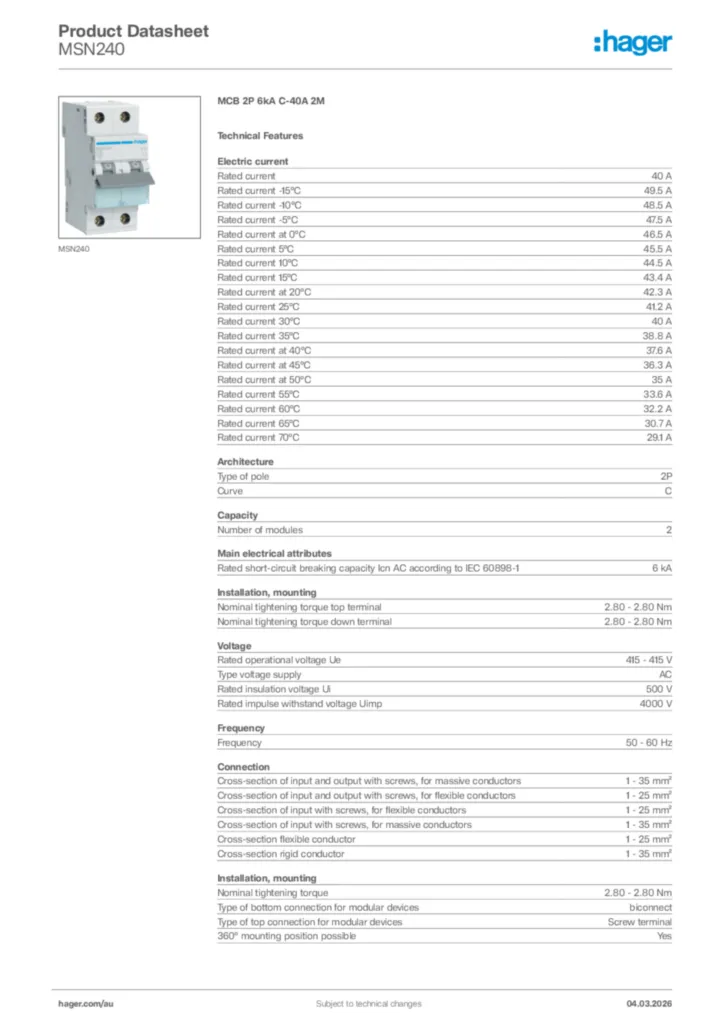

Hager Product data sheet MSN240
