Auxiliary contact 1C+1O 6A 240V AC MZ201
EAN
3250614562013
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Fixing modeClipped
Configuration
-
Number of modules0.5
Main electrical features
-
Rated operational voltage Ue230 / 415 V
-
Type of supply voltageAC
Voltage
-
Rated insulation voltage4000 V
-
Max operating voltage240 V
-
Rated operational voltage in DC12 / 250 V
Electric current
-
Acceptable current rating with AC16 A
-
Rated current6 A
-
Imin=f(U=12V DC) for power circuit0.3 A
-
Imin = f (U = 230 V DC)0.6 A
-
Imin=f(U=400V AC) for power circuit3 A
Dimensions
-
Depth of installed product40 mm
-
Height of installed product80 mm
-
Width of installed product9.5 mm
Power
-
Total power loss under IN0.1 W
Endurance
-
Electric endurance in number of cycles6000
-
Number of mechanical operations12000
Installation, mounting
-
Tightening torque1,2Nm
-
Factory fittedNo
Connection
-
Connection cross-sect. flexible conductor6mm²
-
Connection cross-sect. rigid cable10mm²
-
Type of contacts1NC+1NO
-
Type of connectionwith screw
Equipment
-
Quantity of NC contacts1
-
Quantity of NO contacts1
-
Quantity of INV contacts0
Safety
-
REACH conformYes
-
RoHS conformYes
-
Halogen freeNo
Use conditions
-
Operating temperature-25…60 °C
-
Air humidity protection95% / 80°C
-
Storage/transport temperature-40…80 °C
Downloads
-
Product image
-
User brochure
Onekonekt_Brochure
PDF2 MB
Safe and Simple for All Applications
PDF6 MB -

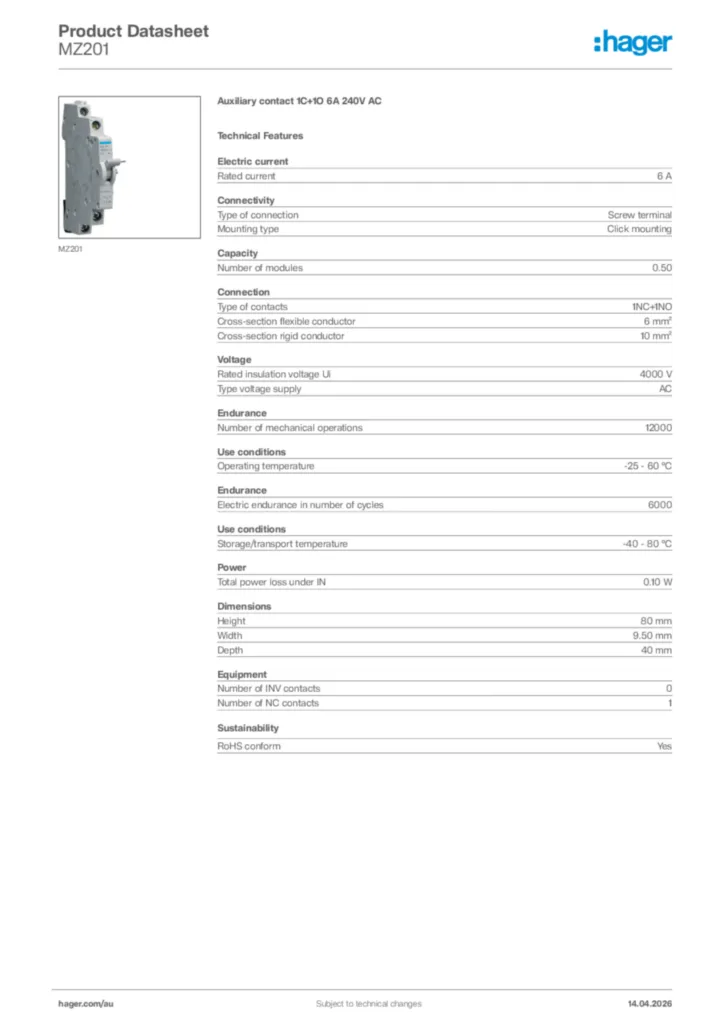

Product data sheet
