Hager The Hager MCB 2P 6A C-curve, 10kA, 2-module breaker safeguards circuits from overloads and short circuits in residential and light commercial boards. Rated 415V AC, 50/60Hz, Ui 500V, Uimp 4kV. Compact 83×35×70 mm with IP20. Easy wiring via screw top and biconnect bottom terminals (1-35 mm²), 2.8 Nm. 360° mounting, class 3 energy limitation, -25 to +70°C operation.

EAN

3250614807091

Packaging

Miniature Circuit Breakers (MCBs)

Miniature circuit breaker 2P 6A 10kA Curve C 2 Modules 415V AC NT206C

Technical properties
Environmental value
Documentations
More products

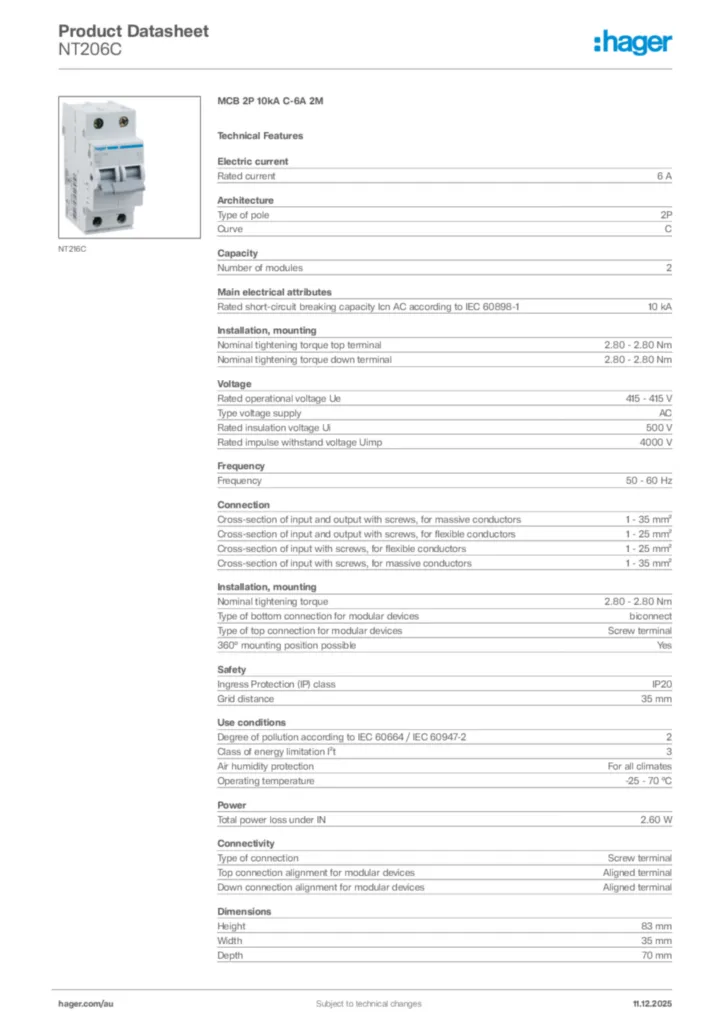

Download the data sheet

Technical properties

Rated current

6 A
Rated current -15°C

7 A
Rated current -10°C

6,90 A
Rated current -5°C

6,80 A
Rated current at 0°C

6,70 A
Rated current 5°C

6,60 A
Rated current 10°C

6,50 A
Rated current 15°C

6,30 A
Rated current at 20°C

6,20 A
Rated current 25°C

6,10 A
Rated current 30°C

6 A
Rated current 35°C

5,90 A
Rated current at 40°C

5,80 A
Rated current at 45°C

5,60 A
Rated current at 50°C

5,50 A
Rated current 55°C

5,40 A
Rated current 60°C

5,20 A
Rated current 65°C

5,10 A
Rated current 70°C

5 A

Type of pole

2P
Curve

C

Number of modules

2

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Nominal tightening torque top terminal

2,80 - 2,80 Nm
Nominal tightening torque down terminal

2,80 - 2,80 Nm
Nominal tightening torque

2,80 - 2,80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

415 - 415 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²
