Miniature Circuit Breakers (MCBs)

Miniature Circuit Breaker 1P 20A 10kA Curve C biconnect 1 Module NT120C

Technical properties
Environmental value
Documentations
More products

Download the data sheet

Technical properties

Rated current

20 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

10 kA
Rated current -15°C

23,20 A
Rated current -10°C

22,80 A
Rated current -5°C

22,50 A
Rated current at 0°C

22,20 A
Rated current 5°C

21,80 A
Rated current 10°C

21,50 A
Rated current 15°C

21,10 A
Rated current at 20°C

20,70 A
Rated current 25°C

20,40 A
Rated current 30°C

20 A
Rated current 35°C

19,60 A
Rated current at 40°C

19,20 A
Rated current at 45°C

18,80 A
Rated current at 50°C

18,40 A
Rated current 55°C

18 A
Rated current 60°C

17,60 A
Rated current 65°C

17,20 A
Rated current 70°C

16,80 A

Type of pole

1P
Curve

C

Number of modules

1

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Nominal tightening torque top terminal

2,80 - 2,80 Nm
Nominal tightening torque down terminal

2,80 - 2,80 Nm
Nominal tightening torque

2,80 - 2,80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

240 - 415 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

Ingress Protection (IP) class

IP20
Grid distance

35 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Total power loss under IN

2,70 W

Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal
Type of connection

Screw terminal

Height

83 mm
Width

17,50 mm
Depth

70 mm

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

Certifications and documents

PEP - MCB 1P 6kA B-16A, 1 module (English)

PDF

67,85 MB

REACH declaration NT120C

PDF

RoHS report NT120C

PDF

Downloads

Product image

Product Image NT120C

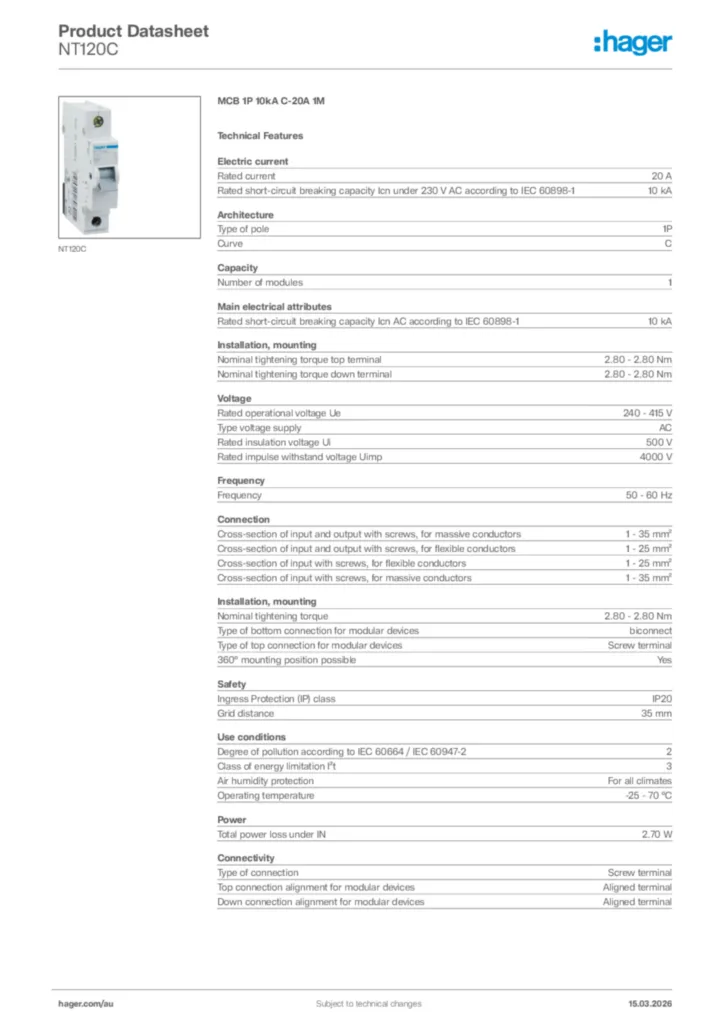

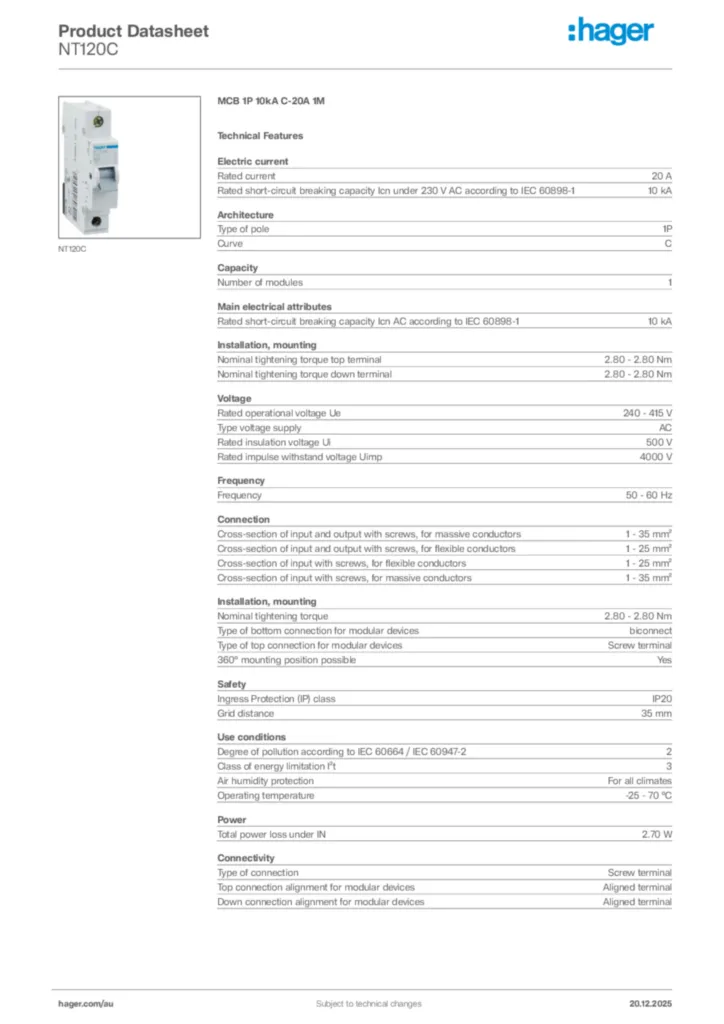

Product datasheet

Hager Product data sheet NT120C

MCB 1P 10kA C-20A 1M

PDF
Declaration of conformity

EU Declaration of Conformity

Declaration of conformity en-GB 2024-10-02

PDF

650,27 kB

UKCA Declaration of Conformity

Declaration of conformity en-GB 2024-10-02

PDF

653,93 kB

More documentation
