Hager The Hager MCB 2P 10kA C-10A 2M miniature circuit breaker protects circuits against overloads and short circuits. With 10 A rating, C curve and 10 kA Icn, it suits residential and light commercial two‑pole AC installations up to 415 V. Compact 2 modules, IP20. Screw terminals with biconnect bottom for 1-35 mm², 50-60 Hz, Ui 500 V, Uimp 4 kV, 360° mounting, -25 to 70 °C.

EAN

3250614807107

Packaging

Miniature Circuit Breakers (MCBs)

Miniature Circuit Breaker 2P 10A 10kA Curve C 415V AC 2 Modules NT210C

Technical properties
Environmental value
Documentations
More products

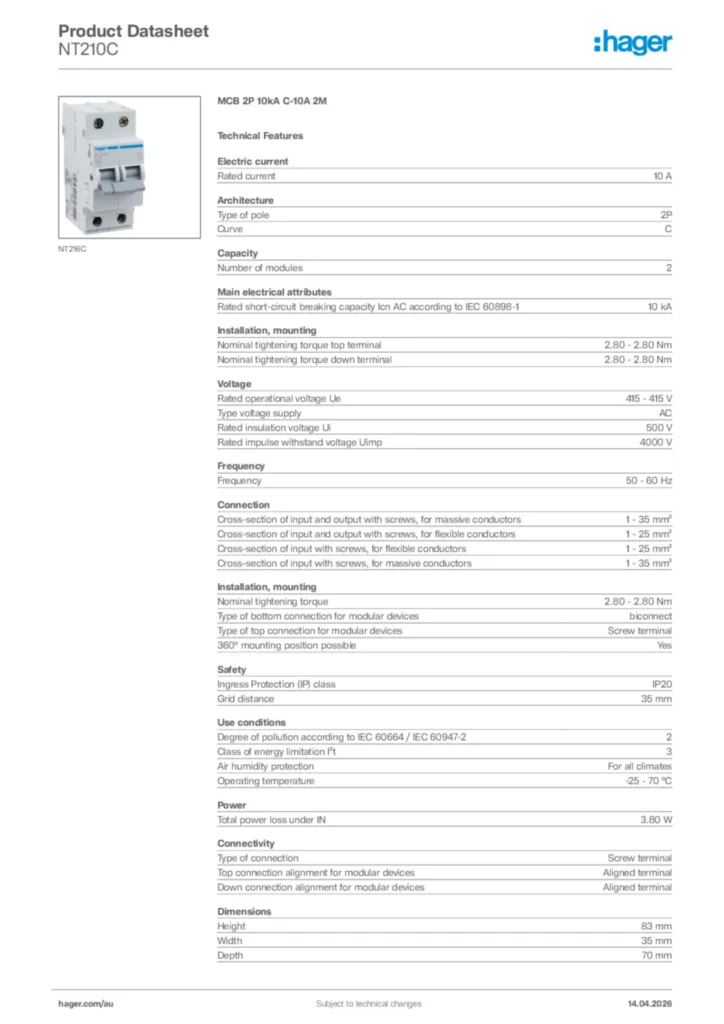

Download the data sheet

Technical properties

Rated current

10 A
Rated current -15°C

12 A
Rated current -10°C

11,80 A
Rated current -5°C

11,60 A
Rated current at 0°C

11,40 A
Rated current 5°C

11,20 A
Rated current 10°C

10,90 A
Rated current 15°C

10,70 A
Rated current at 20°C

10,50 A
Rated current 25°C

10,20 A
Rated current 30°C

10 A
Rated current 35°C

9,80 A
Rated current at 40°C

9,50 A
Rated current at 45°C

9,20 A
Rated current at 50°C

9 A
Rated current 55°C

8,70 A
Rated current 60°C

8,40 A
Rated current 65°C

8,20 A
Rated current 70°C

7,90 A

Type of pole

2P
Curve

C

Number of modules

2

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Nominal tightening torque top terminal

2,80 - 2,80 Nm
Nominal tightening torque down terminal

2,80 - 2,80 Nm
Nominal tightening torque

2,80 - 2,80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

415 - 415 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²
