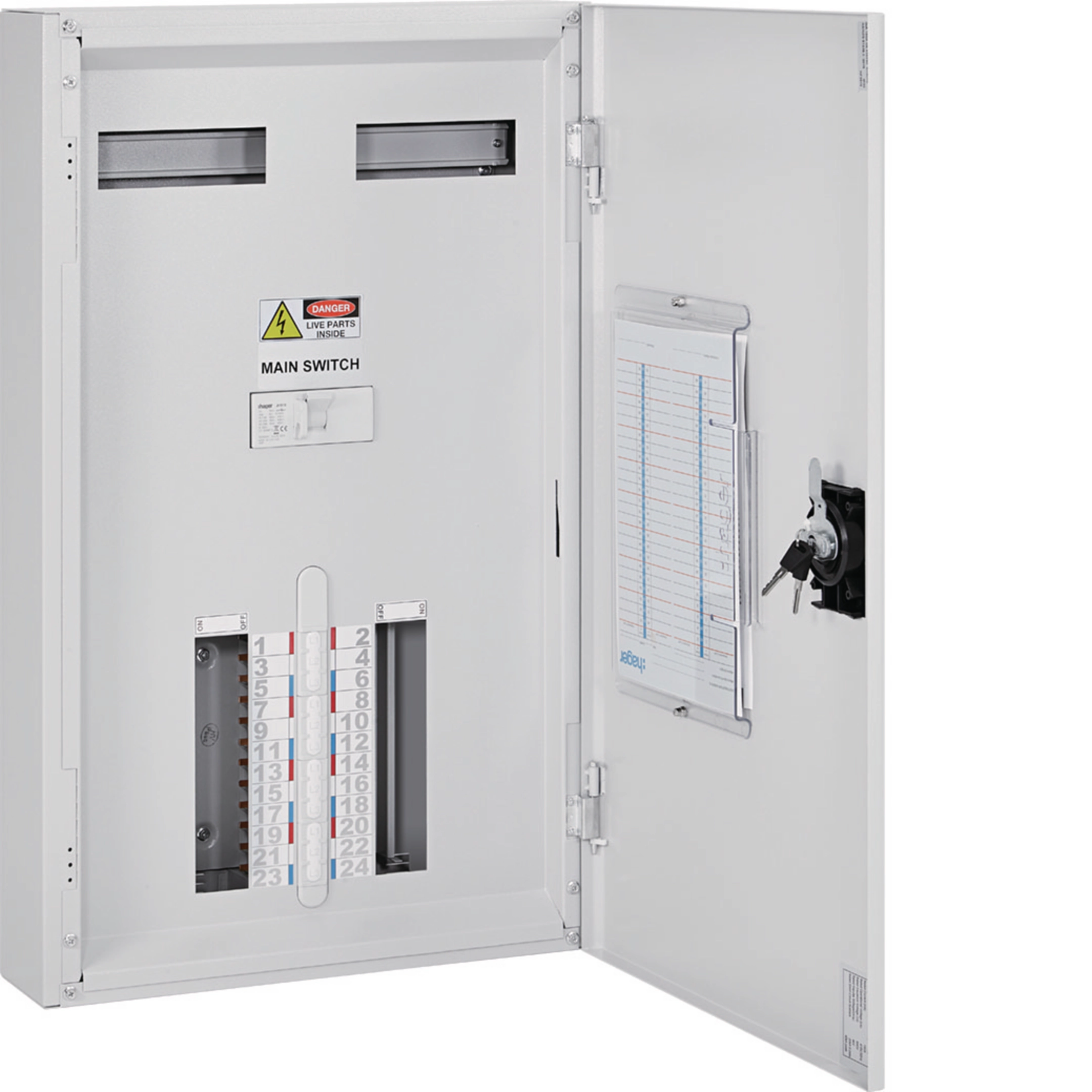

The Hager Invicta 160A TPN Board, 24P chassis ISO-STD-GR, delivers reliable distribution for commercial and light industrial use. Supplied with a main isolator (1 switch), it provides 24 poles/16 modules on a fixed-load chassis. Surface-mounted steel (RAL7035) with key lock, IP30, IK05, Class I insulation for safety. Compact 800×480×135 mm for tidy, secure panel layouts. Designed for reliable installation in residential and commercial switchboards,suitable for DIN rail mounting.
EAN
3250611002321
Packaging
1 Piece
Hager TPN Board Invicta 160A 24-way Isolator Surface Mount IP30 Steel JVC2400S16TW
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
RCBO BS electronic type A 6 kA (EN/IEC61009) 16 products available -
MCB multi-pole 63 A 6 kA (EN/IEC60898) 29 products available -
Accessories/spare parts for low-voltage switch technology 7 products available -
AOB electronic TPN type A 2 products available -
Emergency lighting kit 2 products available -
AOB electronic TPN type A 1 products available
Complete your system
-
ADC906T
RCBO 1M 1P+N 6kA C-6A 30mA A
-
ADC910TRCBO 1M 1P+N 6kA C-10A 30mA A
-
ADC913TRCBO 1M 1P+N 6kA C-13A 30mA A
-
ADC916TRCBO 1M 1P+N 6kA C-16A 30mA A
-
ADC920TRCBO 1M 1P+N 6kA C-20A 30mA A
-
ADC925TRCBO 1M 1P+N 6kA C-25A 30mA A
-
ACC910TRCBO 1M 1P+N 6kA C-10A 10mA A
-
ACC916TRCBO 1M 1P+N 6kA C-16A 10mA A
-
ACC920TRCBO 1M 1P+N 6kA C-20A 10mA A
-
ACC925TRCBO 1M 1P+N 6kA C-25A 10mA A
-
ACC932TRCBO 1M 1P+N 6kA C-32A 10mA A
-
ADD910TRCBO 1M 1P+N 6kA D-10A 30mA A
-
ADD916TRCBO 1M 1P+N 6kA D-16A 30mA A
-
ADD920TRCBO 1M 1P+N 6kA D-20A 30mA A
-
ADD925TRCBO 1M 1P+N 6kA D-25A 30mA A
-
ADC932TRCBO 1M 1P+N 6kA C-32A 30mA A
-
MSN306MCB 3P 6kA C-6A 3M
-
MSN316
MCB 3P 6kA C-16A 3M
-
MSN310
MCB 3P 6kA C-10A 3M
-
MSN216MCB 2P 6kA C-16A 2M
-
MSN210
MCB 2P 6kA C-10A 2M
-
MSN120MCB 1P 6kA C-20A 1M
-
MSN116MCB 1P 6kA C-16A 1M
-
MSN110MCB 1P 6kA C-10A 1M
-
MSN363RMCB 3P 6kA C-63A 3M
-
MSN363MCB 3P 6kA C-63A 3M
-
MSN350MCB 3P 6kA C-50A 3M
-
MSN340MCB 3P 6kA C-40A 3M
-
MSN332MCB 3P 6kA C-32A 3M
-
MSN325MCB 3P 6kA C-25A 3M
-
MSN320
MCB 3P 6kA C-20A 3M
-
MSN106
MCB 1P 6kA C-6A 1M
-
MSN263RMCB 2P 6kA C-63A 2M
-
MSN263MCB 2P 6kA C-63A 2M
-
MSN250MCB 2P 6kA C-50A 2M
-
MSN240MCB 2P 6kA C-40A 2M
Technical properties
Connection
-
Number of accessible phases24
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Rated current160 A
-
Breaking and opening capacity Idm0
Equipment
-
With lockYes
-
Has mounting plateNo
-
Equipped with switchIsolator
-
Number of switches1
-
Type of busbar chassisFixed load chassis
Capacity
-
Number of modules16
Dimensions
-
Height800 mm
-
Width480 mm
-
Depth135 mm
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP30
-
Locking typeKey lock, With lock
Architecture
-
Number of poles24
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

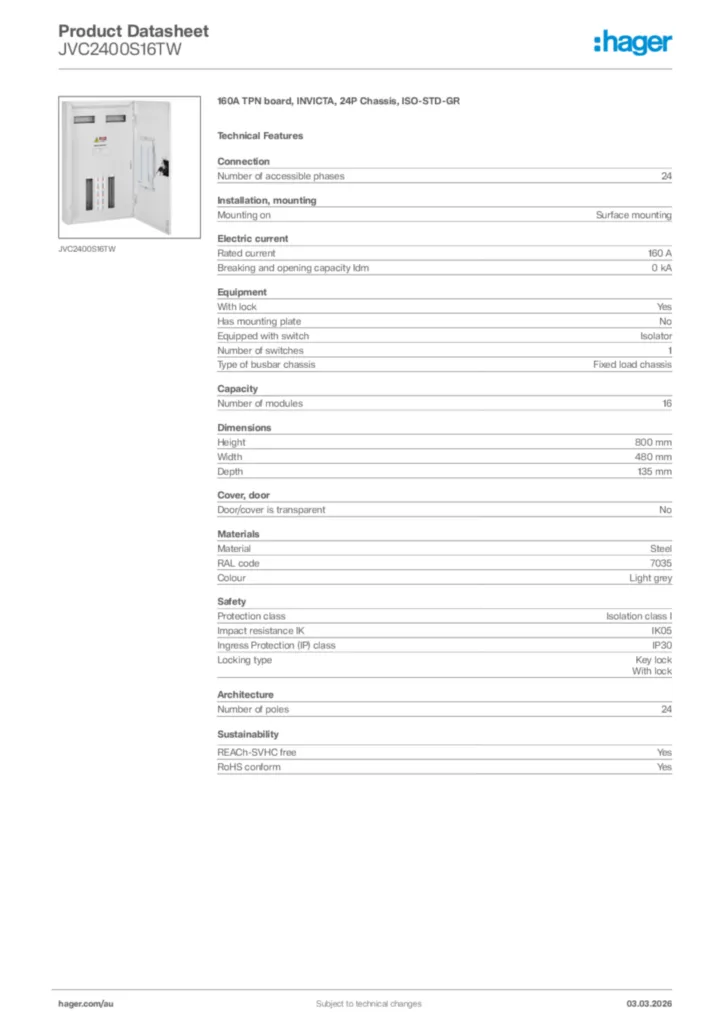

Hager Product data sheet JVC2400S16TW
