MCB 3P 6kA C-40A 3M MSN340
EAN
3250614323621
Packaging
4
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Rail terminal bar 1 products available -
AOB electronic TPN type A 1 products available -
AOB electronic TPN type A 2 products available
-
Mechanic accessories for low-voltage components 1 products available -
Auxiliaries contact block 2 products available -
See more 15 other products available
Complete your system
Technical properties
Electric current
-
Rated current40 A
-
Rated current -15°C48,4 A
-
Rated current -10°C47,5 A
-
Rated current -5°C46,6 A
-
Rated current at 0°C45,8 A
-
Rated current 5°C44,8 A
-
Rated current 10°C43,9 A
-
Rated current 15°C43 A
-
Rated current at 20°C42 A
-
Rated current 25°C41 A
-
Rated current 30°C40 A
-
Rated current 35°C38,8 A
-
Rated current at 40°C37,5 A
-
Rated current at 45°C36,2 A
-
Rated current at 50°C34,8 A
-
Rated current 55°C33,4 A
-
Rated current 60°C31,9 A
-
Rated current 65°C30,3 A
-
Rated current 70°C28,6 A
Architecture
-
Type of pole3P
-
CurveC
Capacity
-
Number of modules3
Installation, mounting
-
Nominal tightening torque top terminal2,80 - 2,80 Nm
-
Nominal tightening torque down terminal2,80 - 2,80 Nm
-
Nominal tightening torque2,80 - 2,80 Nm
-
Type of bottom connection for modular devicesbiconnect
-
Type of top connection for modular devicesScrew terminal
-
360° mounting position possibleYes
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-16 kA
Voltage
-
Rated operational voltage Ue415 - 415 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Frequency
-
Frequency50 - 60 Hz
Connection
-
Cross-section of input and output with screws, for massive conductors1 - 35 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for massive conductors1 - 35 mm²
-
Cross-section flexible conductor1 - 25 mm²
-
Cross-section rigid conductor1 - 35 mm²
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Class of energy limitation I²t3
-
Air humidity protectionFor all climates
-
Operating temperature-25 - 70 °C
Power
-
Total power loss under IN16,88 W
Connectivity
-
Type of connectionScrew terminal
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height83 mm
-
Width52,50 mm
-
Depth70 mm
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

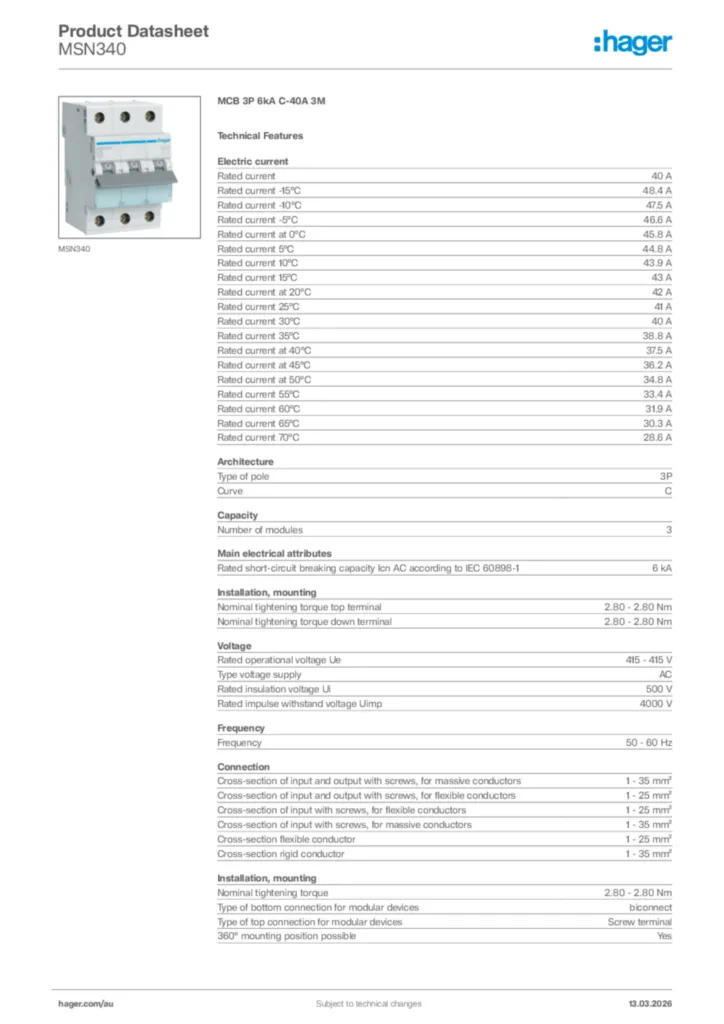

Product data sheet
