The Hager 3P 63A 30 mA A-class earth leakage add-on block delivers reliable residual current protection for three-phase circuits. Fitting as a 1-module accessory to compatible breakers, it detects AC and pulsating DC faults to prevent electric shock and fire risk. Rated 240-415 V, Ui 500 V, Uimp 4 kV, 50 Hz. Screw terminals for secure wiring, right-hand neutral. Ideal for residential and commercial panels. For installation in residential & commercial switchboards,suitable for DIN rail mounting.
EAN
3250611344872
Packaging
1 Piece
Hager Earth leakage add-on block 3P 63A 30mA Type A 1 module Screw terminal BD163T
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 21 products available
Suitable with
-
MSN340MCB 3P 6kA C-40A 3M
-
MSN332RMCB 3P 6kA C-32A 3M
-
MSN316MCB 3P 6kA C-16A 3M
-
MSN310
MCB 3P 6kA C-10A 3M
-
MSN363RMCB 3P 6kA C-63A 3M
-
MSN363MCB 3P 6kA C-63A 3M
-
MSN350MCB 3P 6kA C-50A 3M
-
MSN332MCB 3P 6kA C-32A 3M
-
MSN325MCB 3P 6kA C-25A 3M
-
MSN320
MCB 3P 6kA C-20A 3M
-
MSN306
MCB 3P 6kA C-6A 3M
-
JVC2400S16TW160A TPN board, INVICTA, 24P Chassis, ISO-STD-GR
-
JVC2400S25TW160A TPN board, INVICTA, 24P Chassis, ISO-STD-GR
-
JVC3600S16TW160A TPN board, INVICTA, 36P Chassis, ISO-STD-GR
-
JVC3600S25TW250A TPN board, INVICTA, 36P Chassis, ISO-STD-GR
-
JVC4800S16TW250A TPN board, INVICTA, 48P Chassis , ISO-STD-GR
-
JVC4800S25TW250A TPN board, INVICTA, 48P Chassis , ISO-STD-GR
-
JVC6000S16TW160A TPN board, INVICTA, 60P Chassis , ISO-STD-GR
-
JVC6000S25TW250A TPN board, INVICTA, 60P Chassis , ISO-STD-GR
-
JVC7200S16TW160A TPN board, INVICTA, 72P Chassis , ISO-STD-GR
Technical properties
Voltage
-
Rated operational voltage Ue240 - 415 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Rated residual operating current Idn30 mA
-
Rated current63 A
Architecture
-
Number of poles3
-
Neutral positionRight
Capacity
-
Number of modules1
Connectivity
-
Type of connectionScrew terminal
Dimensions
-
Height121 mm
-
Width70,80 mm
-
Depth69,10 mm
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

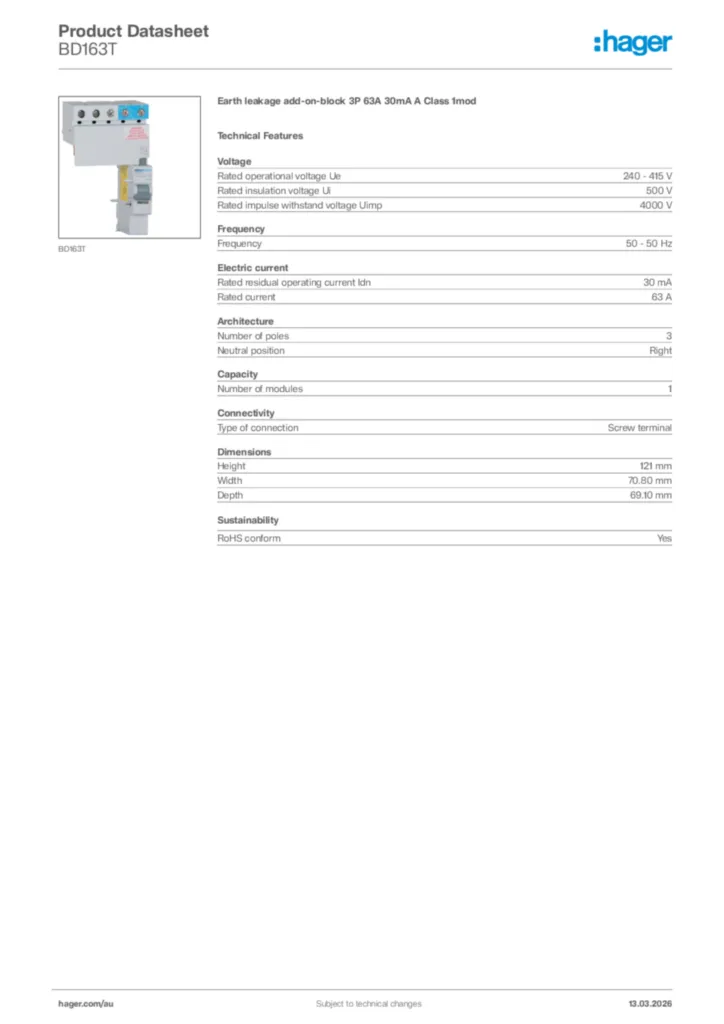

Product datasheet
Hager Product data sheet BD163T
Earth leakage add-on-block 3P 63A 30mA A Class 1mod
PDF -
Installation manual
Notice bloc diff Australie Up to 63 A
Installation manual en-GB 2020-01-01
PDF4,53 MB -
Product data sheet
Bx163T Product and Data Specification
Product data sheet en-GB 2017-04-03
PDF316,53 kB -

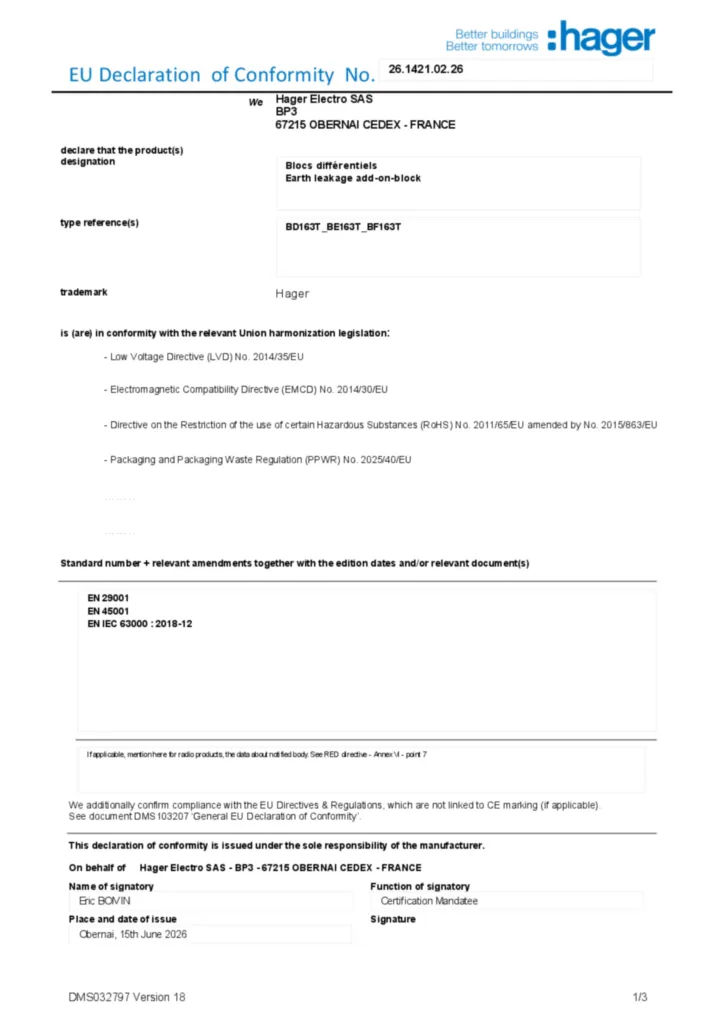

Declaration of conformity
Declaration
Declaration of conformity International 2019-01-10
PDF87,63 kB
