The Hager insulated 3-pole fork busbar, 80 A, 16 mm², 18 modules (210 mm), streamlines three-phase distribution across modular devices. Rated 415 V with 4 kV impulse withstand, it ensures safe, reliable power linking. Fork terminals enable fast, secure phase connection of MCBs/RCBOs, optimizing space and wiring neatness in residential and commercial distribution boards. Designed for reliable installation in residential and commercial switchboards,suitable for DIN rail mounting.
EAN
3250613730338
Packaging
10
Hager Insulated busbar 3P 80A Fork 16mm² 18M 415V Uimp 4kV KDN380G
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Protective cap/strip for phase busbar 1 products available -
Rail terminal bar 1 products available
Compatible products
-
Suitable with 44 products available
Suitable with
-
ADA570TRCBO 1P+N 10kA C-20A 30mA A Class
-
ADA566TRCBO 1P+N 10kA C-16A 30mA A Class
-
MSN310MCB 3P 6kA C-10A 3M
-
AEA932TRCBO 1P+N 6kA C-32A 100mA A
-
AEA920TRCBO 1P+N 6kA C-20A 100mA A
-
ADA560T
RCBO 1P+N 10kA C-10A 30mA A Class
-
ADA575T
RCBO 1P+N 10kA C-25A 30mA A Class
-
ADA582T
RCBO 1P+N 10kA C-32A 30mA A Class
-
MSN332RMCB 3P 6kA C-32A 3M
-
MSN340RMCB 3P 6kA C-40A 3M
-
ADA940TRCB0 1P+N 6kA C-40A 30mA A Class
-
ADA932T
RCBO 1P+N 6kA C-32A 30mA A Class
-
ADA925T
RCBO 1P+N 6kA C-25A 30mA A Class
-
ADA920T
RCBO 1P+N 6kA C-20A 30mA A Class
-
ADA916T
RCBO 1P+N 6kA C-16A 30mA A Class
-
ADA910T
RCBO 1P+N 6kA C-10A 30mA A Class
-
MSN316
MCB 3P 6kA C-16A 3M
-
MSN306
MCB 3P 6kA C-6A 3M
-
AEX440TRCBO 4P 10kA C-40A 100mA A
-
AEX432TRCBO 4P 10kA C-32A 100mA A
Technical properties
Electric current
-
Rated current80 A
Architecture
-
Number of poles3
-
Type of pole3P
Dimensions
-
Length210 mm
Voltage
-
Rated impulse withstand voltage Uimp4000 V
-
Rated operational voltage Ue415 - 415 V
Connection
-
Cross-section rigid conductor16 mm²
-
Connector/plug typePhase busbar with fork
Capacity
-
Number of modules18
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

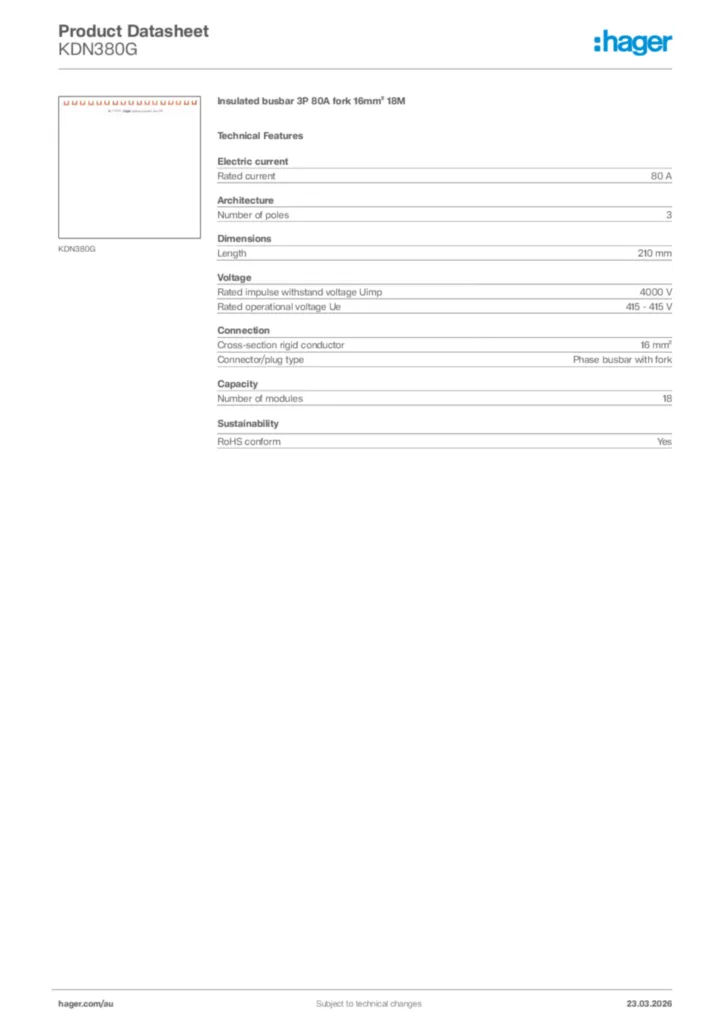

Product datasheet
Hager Product data sheet KDN380G
Insulated busbar 3P 80A fork 16mm² 18M
PDF -
Declaration of conformity
Declaration of conformity en-GB 2026-01-12
PDF364,15 kB
Declaration of conformity en-GB 2026-01-12
PDF386,96 kB
