RCBO 1P+N 6kA C-32A 100mA A AEA932T
EAN
3250611018742
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Locking interlocking functions 1 products available -
Modular phase busbar 7 products available -
Protective cap/strip for phase busbar 1 products available -
Cable terminal connection 3 products available
Complete your system
-
KB181A1
Insulated prong busbar 1P 80A 16mm² 6C for RCBO
-
KB181G1
Insulated prong busbar 1P 80A 16mm² 9C for RCBO
-
KDN180AInsulated busbar 1P 80A fork 16mm² 12M
-
KDN180GInsulated busbar 1P 80A fork 16mm² 18M
-
KDN280AInsulated busbar 2P 80A fork 16mm² 12M
-
KDN380AInsulated busbar 3P 80A fork 16mm² 12M
-
KDN380GInsulated busbar 3P 80A fork 16mm² 18M
Technical properties
Architecture
-
Type of pole1P+N
-
CurveC
Electric current
-
Rated current32 A
-
Rated residual operating current Idn100 mA
-
Rated current -25°C38,30 A
-
Rated current at -20°C37,80 A
-
Rated current -15°C37,20 A
-
Rated current -10°C36,70 A
-
Rated current -5°C36,10 A
-
Rated current at 0°C35,60 A
-
Rated current 5°C35 A
-
Rated current 10°C34,40 A
-
Rated current 15°C33,80 A
-
Rated current at 20°C33,20 A
-
Rated current 25°C32,60 A
-
Rated current 30°C32 A
-
Rated current 35°C31,50 A
-
Rated current at 40°C31 A
-
Rated current at 50°C30 A
-
Rated current 55°C29,50 A
-
Rated current 60°C29 A
-
Correction factor of rating current for 2 devices placed side by side1
-
Correction factor of rating current for 3 devices placed side by side0,95
-
Correction factor of rating current for 4 and 5 devices placed side by side0,90
-
Correction factor of rating current for 6 devices placed side by side0,85
-
Min./max. threshold value of the AC thermal operation1,13 - 1,45 A
Safety
-
Residual current typeA
-
Ingress Protection (IP) classIP20
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-16 kA
Connectivity
-
Type of connectionScrew terminal
Voltage
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
-
Max. operating voltage240 V
-
Rated operational voltage Ue230 - 240 V
-
Overvoltage category according to IEC 60947-13
Power
-
Total power loss under IN7,60 W
Frequency
-
Frequency50 - 50 Hz
Use conditions
-
Max. Altitude2000 m
-
Class of energy limitation I²t3
-
Operating temperature-25 - 40 °C
-
Storage/transport temperature-25 - 70 °C
Endurance
-
Electric endurance in number of cycles2000
-
Number of mechanical operations4000
Connection
-
Cross-section flexible conductor1 - 16 mm²
-
Cross-section rigid conductor1 - 25 mm²
-
Cross-section of input with screws, for flexible conductors1 - 16 mm²
-
Cross-section of input with screws, for massive conductors1 - 25 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 16 mm²
-
Cross-section of input and output with screws, for massive conductors1 - 25 mm²
Installation, mounting
-
Nominal tightening torque2,10 - 2,10 Nm
-
Type of top connection for modular devicesScrew terminal
-
Type of bottom connection for modular devicesbiconnect
Capacity
-
Number of modules2
Dimensions
-
Height83 mm
-
Width35 mm
-
Depth68 mm
Compatibility
-
Suitable for DIN RailYes
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Installation manual

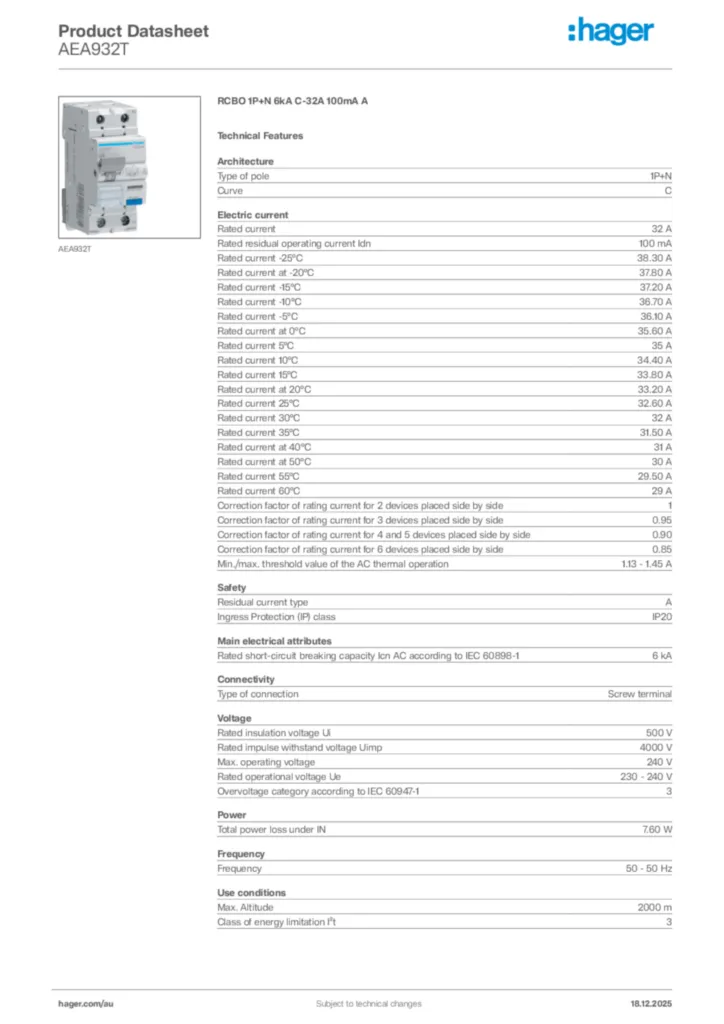

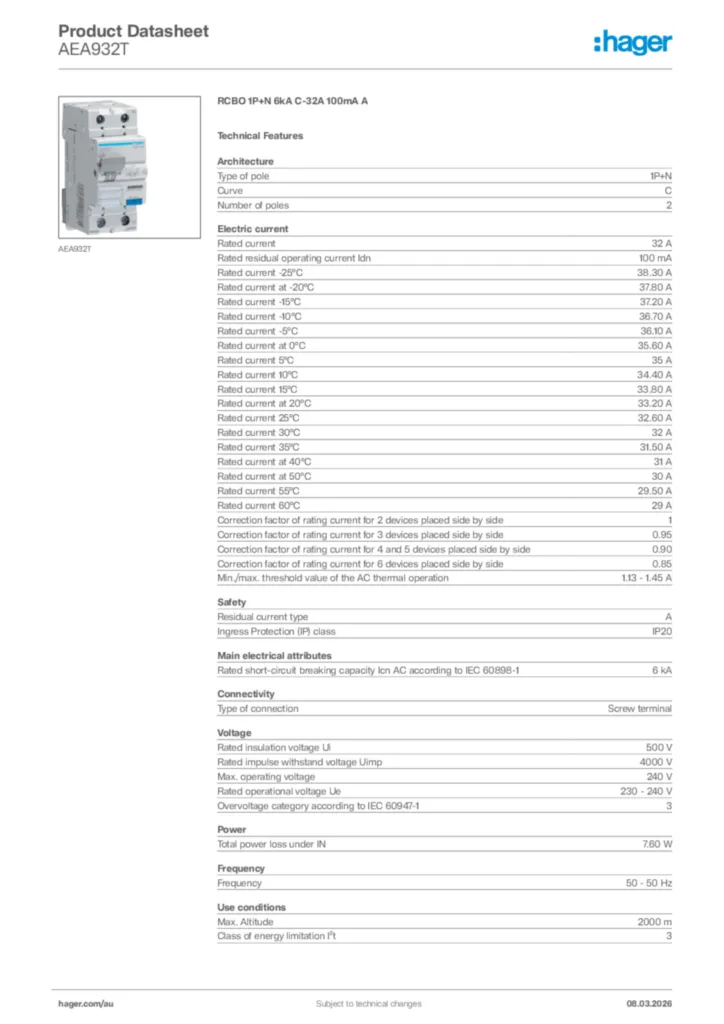

Notice RCBO 6kA bypass_GB
