The Hager insulated 1P fork busbar 80A, 16 mm², 12 modules distributes phase power efficiently across modular devices. Its insulated design and 4.5 kV impulse withstand boost safety, while 80 A and 415 V ratings suit residential and commercial boards. At 210 mm, the fork-type bar enables quick, secure, uniform connections to breakers, saving space and installation time. Designed for reliable installation in residential and commercial switchboards,suitable for DIN rail mounting.
EAN
3250613740986
Packaging
100
Hager Insulated Busbar 1P 80A Fork 16mm² 12 Modules KDN180A
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Protective cap/strip for phase busbar 2 products available
Compatible products
-
Suitable with 32 products available
Suitable with
-
ADA920TRCBO 1P+N 6kA C-20A 30mA A Class
-
ADA582TRCBO 1P+N 10kA C-32A 30mA A Class
-
ADA575T
RCBO 1P+N 10kA C-25A 30mA A Class
-
ADA570T
RCBO 1P+N 10kA C-20A 30mA A Class
-
ADA566TRCBO 1P+N 10kA C-16A 30mA A Class
-
ADA560T
RCBO 1P+N 10kA C-10A 30mA A Class
-
AEA932TRCBO 1P+N 6kA C-32A 100mA A
-
AEA920TRCBO 1P+N 6kA C-20A 100mA A
-
ADA940T
RCB0 1P+N 6kA C-40A 30mA A Class
-
ADA932T
RCBO 1P+N 6kA C-32A 30mA A Class
-
ADA925T
RCBO 1P+N 6kA C-25A 30mA A Class
-
ADM410TRCBO 4P 6kA C-10A 30mA A
-
ADA916T
RCBO 1P+N 6kA C-16A 30mA A Class
-
ADA910T
RCBO 1P+N 6kA C-10A 30mA A Class
-
ADX432TRCBO 4P 10kA C-32A 30mA A
-
ADM416TRCBO 4P 6kA C-16A 30mA A
-
ADM420TRCBO 4P 6kA C-20A 30mA A
-
ADM425TRCBO 4P 6kA C-25A 30mA A
-
ADM432TRCBO 4P 6kA C-32A 30mA A
-
ADM440TRCBO 4P 6kA C-40A 30mA A
Technical properties
Electric current
-
Rated current80 A
Architecture
-
Number of poles1
-
Type of pole1P
Dimensions
-
Length210 mm
Voltage
-
Rated impulse withstand voltage Uimp4500 V
-
Rated operational voltage Ue415 - 415 V
Connection
-
Cross-section rigid conductor16 mm²
-
Connector/plug typePhase busbar with fork
Capacity
-
Number of modules12
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

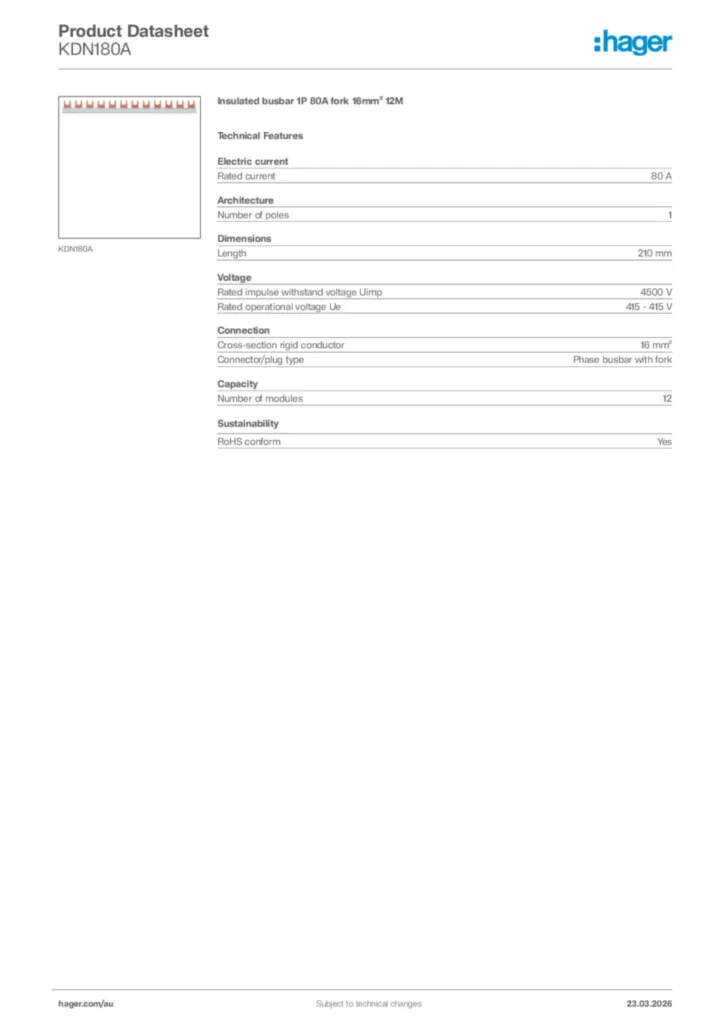

Hager Product data sheet KDN180A
