ADA920T - RCBO 1P+N 6kA C-20A 30mA A Class

DIN rail-mounted devices

RCBO 1P+N 6kA C-20A 30mA A Class ADA920T

EAN

3250611011613

Packaging

1 Piece

Accessories
Technical properties
Environmental value
Documentations
More products

Download the data sheet

Complete your system

Optional accessories

Locking interlocking functions 1 products available
Modular phase busbar 7 products available
Protective cap/strip for phase busbar 1 products available
Cable terminal connection 3 products available

Technical properties

Type of pole

1P+N
Curve

C

Rated current

20 A
Rated residual operating current Idn

30 mA
Rated current -25°C

22,70 A
Rated current at -20°C

22,50 A
Rated current -15°C

22,20 A
Rated current -10°C

22 A
Rated current -5°C

21,80 A
Rated current at 0°C

21,50 A
Rated current 5°C

21,30 A
Rated current 10°C

21 A
Rated current 15°C

20,80 A
Rated current at 20°C

20,50 A
Rated current 25°C

20,30 A
Rated current 30°C

20 A
Rated current 35°C

19,80 A
Rated current at 40°C

19,60 A
Rated current at 50°C

19,20 A
Rated current 55°C

19 A
Rated current 60°C

18,80 A
Correction factor of rating current for 2 devices placed side by side

1
Correction factor of rating current for 3 devices placed side by side

0,95
Correction factor of rating current for 4 and 5 devices placed side by side

0,90
Correction factor of rating current for 6 devices placed side by side

0,85
Min./max. threshold value of the AC thermal operation

1,13 - 1,45 A

Residual current type

A
Ingress Protection (IP) class

IP2X

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Type of connection

Screw terminal

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V
Max. operating voltage

240 V
Rated operational voltage Ue

230 - 240 V
Overvoltage category according to IEC 60947-1

3

Total power loss under IN

6,60 W

Frequency

50 - 50 Hz

Max. Altitude

2000 m
Class of energy limitation I²t

3
Operating temperature

-25 - 40 °C
Storage/transport temperature

-25 - 70 °C

Electric endurance in number of cycles

2000
Number of mechanical operations

2000

Cross-section flexible conductor

1 - 16 mm²
Cross-section rigid conductor

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for massive conductors

1 - 25 mm²
Cross-section of output with screws, for flexible conductors

1 - 16 mm²
Cross-section of output with screws, for massive conductors

1 - 25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²

Nominal tightening torque

2,10 - 2,10 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect, Bypass

Number of modules

2

Height

83 mm
Width

35 mm
Depth

68 mm

Suitable for DIN Rail

Yes

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

Certifications and documents

PEP document en-GB 2022-09-08

PDF

357,12 kB

REACH declaration ADA920T (english)

PDF

103,10 kB

RoHS declaration ADA920T (english)

PDF

103,84 kB

Downloads

Product image

Product Image ADA920T
Installation manual

Installation manual en-GB, fr-FR, de-DE, it-IT 2022-03-24

PDF

1,45 MB

Notice RCBO 6kA bypass_GB

Installation manual en-GB 2014-10-17

PDF

2,36 MB

Notice autocollante

Installation manual en-GB 2020-01-01

PDF

152,22 kB
Product data sheet

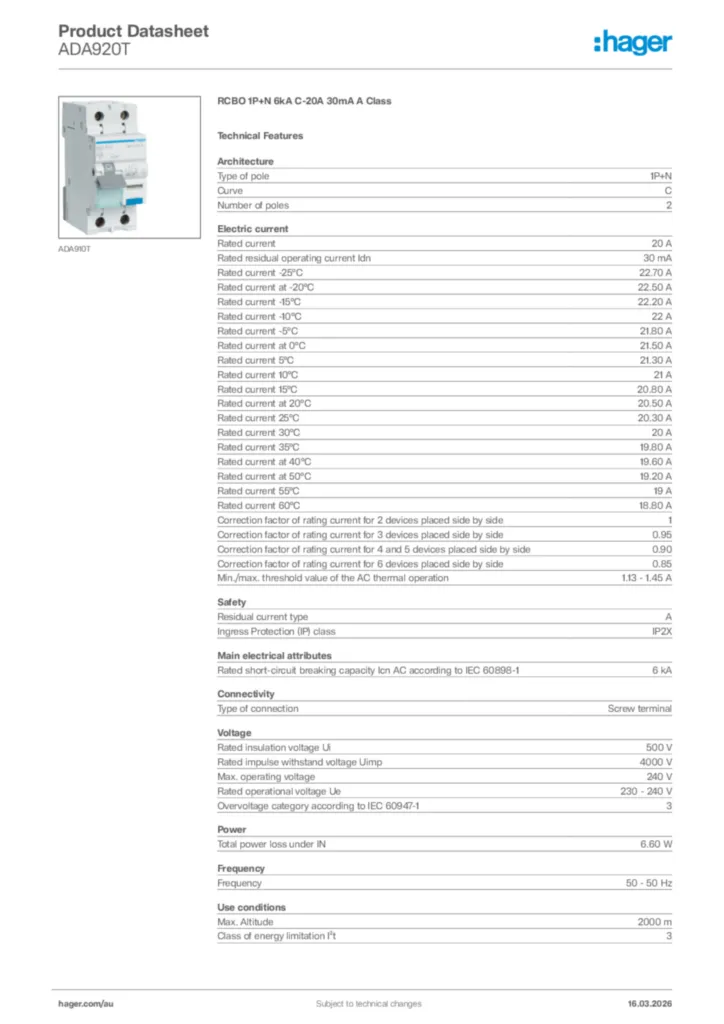

ACA9xxT ADA9xxT AEC9xxT Product Data and Technical Specification
