Hager The Hager insulated prong busbar 1P 80A 16mm² for RCBOs enables fast, safe phase distribution across single-pole devices. Rated 80A at 415 V with 4 kV impulse withstand, it delivers robust performance in single-phase boards. The 16 mm² rigid conductor and pin-type comb simplify installation, cut wiring errors, and speed assembly. Length 184 mm (about 11 modules) to feed multiple RCBOs.
EAN
3250613730307
Packaging
20
Insulated prong busbar 1P 80A 16mm² for RCBO, 11 modules, 415V KB181A1
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 32 products available
Suitable with
-
ADA920TRCBO 1P+N 6kA C-20A 30mA A Class
-
ADA582TRCBO 1P+N 10kA C-32A 30mA A Class
-
ADA575T
RCBO 1P+N 10kA C-25A 30mA A Class
-
ADA570T
RCBO 1P+N 10kA C-20A 30mA A Class
-
ADA566TRCBO 1P+N 10kA C-16A 30mA A Class
-
ADA560T
RCBO 1P+N 10kA C-10A 30mA A Class
-
AEA932TRCBO 1P+N 6kA C-32A 100mA A
-
AEA920TRCBO 1P+N 6kA C-20A 100mA A
-
ADA940T
RCB0 1P+N 6kA C-40A 30mA A Class
-
ADA932T
RCBO 1P+N 6kA C-32A 30mA A Class
-
ADA925T
RCBO 1P+N 6kA C-25A 30mA A Class
-
ADM410TRCBO 4P 6kA C-10A 30mA A
-
ADA916T
RCBO 1P+N 6kA C-16A 30mA A Class
-
ADA910T
RCBO 1P+N 6kA C-10A 30mA A Class
-
ADX432TRCBO 4P 10kA C-32A 30mA A
-
ADM416TRCBO 4P 6kA C-16A 30mA A
-
ADM420TRCBO 4P 6kA C-20A 30mA A
-
ADM425TRCBO 4P 6kA C-25A 30mA A
-
ADM432TRCBO 4P 6kA C-32A 30mA A
-
ADM440TRCBO 4P 6kA C-40A 30mA A
Technical properties
Electric current
-
Rated current80 A
Architecture
-
Number of poles1
-
Type of pole1P
Dimensions
-
Length184 mm
Voltage
-
Rated impulse withstand voltage Uimp4000 V
-
Rated operational voltage Ue415 - 415 V
Connection
-
Cross-section rigid conductor16 mm²
-
Connector/plug typePhase busbar with pin
Capacity
-
Number of modules11
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

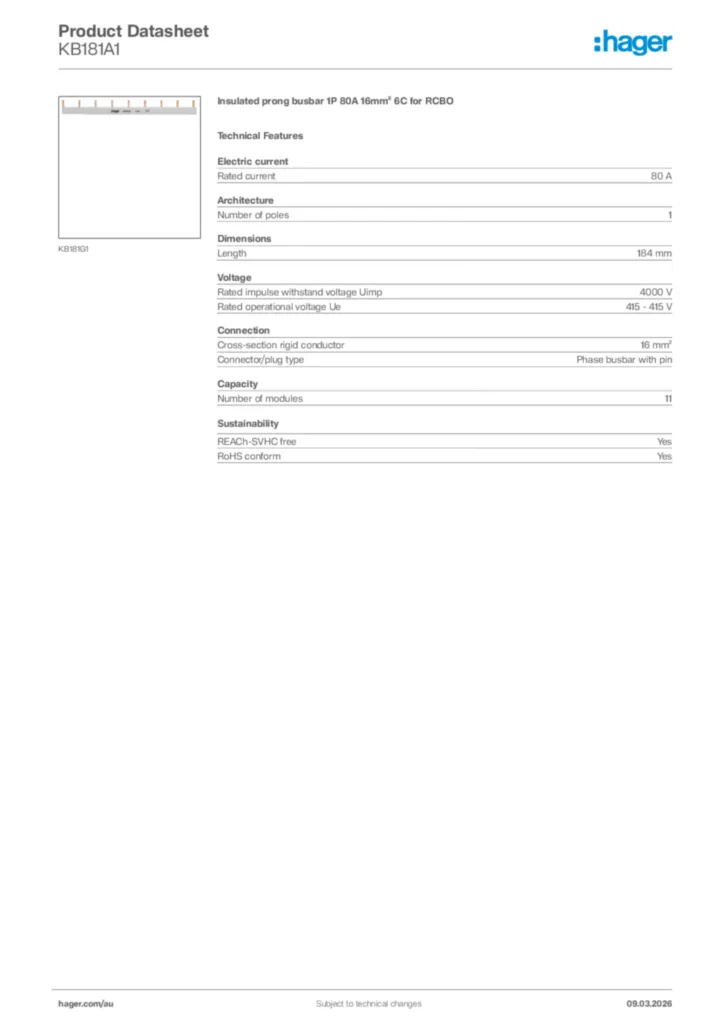

Product datasheet
Hager Product data sheet KB181A1
Insulated prong busbar 1P 80A 16mm² 6C for RCBO
PDF
