    Hager The Hager insulated 2P fork busbar, 80A, 16 mm², 12 modules (210 mm), streamlines safe power distribution across two-pole devices. Rated 230-400 V with 4.5 kV impulse withstand, it delivers reliable, low-loss connections. The fork comb design speeds installation on modular devices, while insulation enhances safety. Ideal for neat, consistent feeding of up to 12 modules in residential or commercial panels.
    EAN
    3250613740993
    Packaging
    50
    • Busbars and Connectors

    Insulated busbar 2P 80A fork 16mm² 12 modules 230-400V KDN280A

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Insulated busbar 2P 80A fork 16mm² 12 modules 230-400V

    KDN280A

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Protective cap/strip for phase busbar 1 products available

    Compatible products

    • Suitable with 41 products available

    Complete your system

    • Protective cap/strip for phase busbar
    • KZ059

      Protective cover fork KDN & KDS
      EUR 0.00  / *

    Suitable with

    • NDN210A

      MCB 2P 10kA/15kA D-10A 2M
      EUR 0.00  / *
    • ADA940T

      RCB0 1P+N 6kA C-40A 30mA A Class
      EUR 0.00  / *
    • AEA920T

      RCBO 1P+N 6kA C-20A 100mA A
      EUR 0.00  / *
    • AEA932T

      RCBO 1P+N 6kA C-32A 100mA A
      EUR 0.00  / *
    • ADA560T

      RCBO 1P+N 10kA C-10A 30mA A Class
      EUR 0.00  / *
    • ADA566T

      RCBO 1P+N 10kA C-16A 30mA A Class
      EUR 0.00  / *
    • ADA570T

      RCBO 1P+N 10kA C-20A 30mA A Class
      EUR 0.00  / *
    • ADA575T

      RCBO 1P+N 10kA C-25A 30mA A Class
      EUR 0.00  / *
    • ADA582T

      RCBO 1P+N 10kA C-32A 30mA A Class
      EUR 0.00  / *
    • ADM416T

      RCBO 4P 6kA C-16A 30mA A
      EUR 0.00  / *
    • NDN216A

      MCB 2P 10kA/15kA D-16A 2M
      EUR 0.00  / *
    • NDN250A

      MCB 2P 10kA/15kA D-50A 2M
      EUR 0.00  / *
    • NDN206A

      MCB 2P 10kA/15kA D-6A 2M
      EUR 0.00  / *
    • NDN263A

      MCB 2P 10kA/15kA D-63A 2M
      EUR 0.00  / *
    • NDN225A

      MCB 2P 10kA/15kA D-25A 2M
      EUR 0.00  / *
    • NDN240A

      MCB 2P 10kA/15kA D-40A 2M
      EUR 0.00  / *
    • NDN232A

      MCB 2P 10kA/15kA D-32A 2M
      EUR 0.00  / *
    • NDN220A

      MCB 2P 10kA/15kA D-20A 2M
      EUR 0.00  / *
    • AEX432T

      RCBO 4P 10kA C-32A 100mA A
      EUR 0.00  / *
    • ADM410T

      RCBO 4P 6kA C-10A 30mA A
      EUR 0.00  / *

    Technical properties

    Elec­tric current
    • Rated current
      80 A
    Archi­tec­ture
    • Number of poles
      2
    • Type of pole
      2P
    Dimen­sions
    • Length
      210 mm
    Voltage
    • Rated impulse with­stand voltage Uimp
      4500 V
    • Rated oper­a­tional voltage Ue
      230 - 400 V
    Connec­tion
    • Cross-sec­tion rigid conductor
      16 mm²
    • Connect­or/plug type
      Phase busbar with fork
    Capa­city
    • Number of modules
      12

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes

    Certifications and documents

    REACH declaration KDN280A
    PDF
    RoHS report KDN280A
    PDF

    Downloads

    • Product image

      Image KDN280A | Hager Australia

      Product Image KDN280A

    • Product datasheet

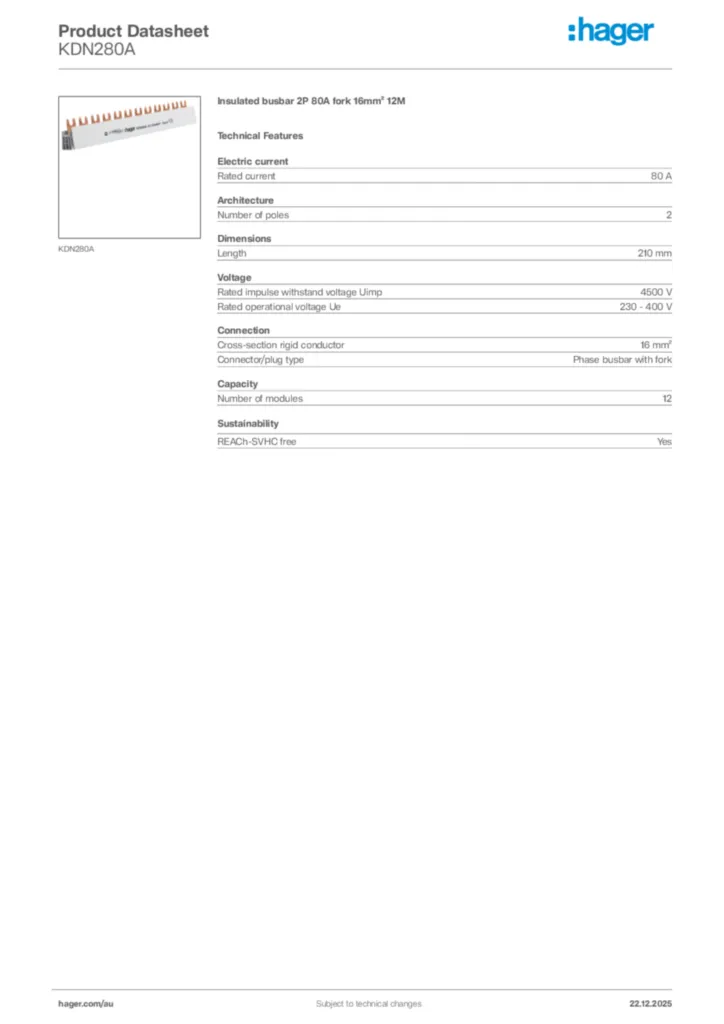

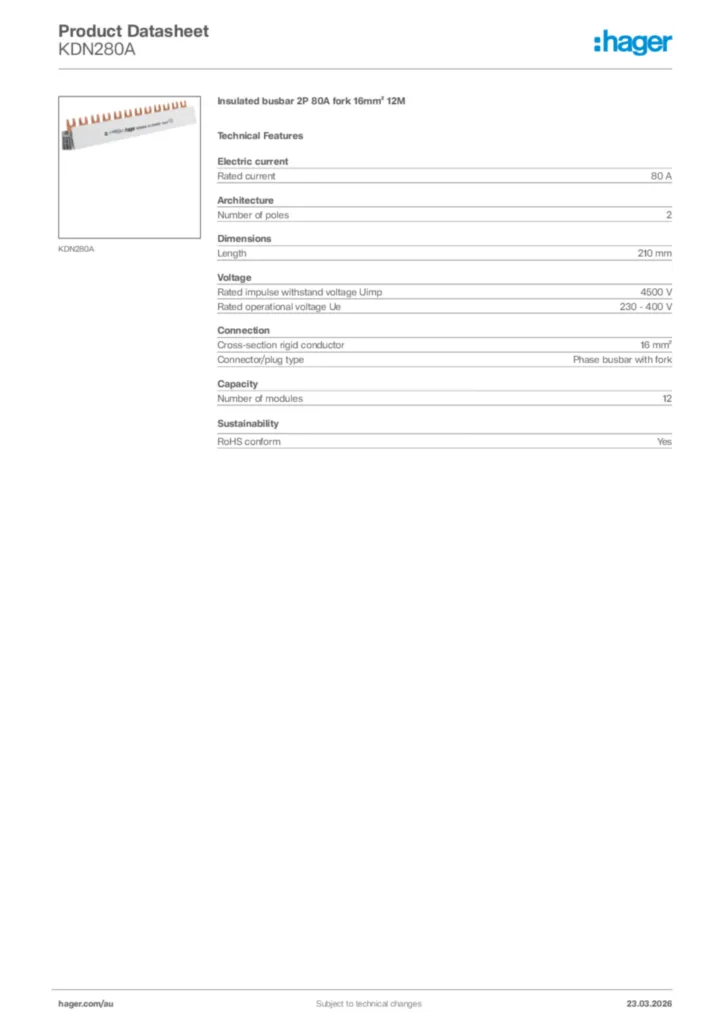

      Image Hager Product data sheet KDN280A | Hager Australia

      Hager Product data sheet KDN280A

      Insulated busbar 2P 80A fork 16mm² 12M

      PDF

    • Declaration of conformity

      Image Declaration of conformity en-GB 2026-01-12 | Hager Australia

      Declaration of conformity en-GB 2026-01-12

      PDF
      364,15 kB
      Image Declaration of conformity en-GB 2026-01-12 | Hager Australia

      Declaration of conformity en-GB 2026-01-12

      PDF
      386,96 kB
