The Hager RCB0 1P+N 40A C-curve 6kA 30mA Type A RCBO safeguards circuits against overloads, short circuits and earth leakage. Ideal for 230-240V residential and light commercial loads, including appliances with pulsating DC. Compact 2-module DIN-rail design; IP2X. Screw terminals and biconnect bottom ease wiring. Delivers 6kA breaking, 500V insulation, and 4kV impulse withstand. Designed for reliable installation in residential and commercial switchboards,suitable for DIN rail mounting.

EAN

3250611011644

Packaging

1 Piece

Residual Current Circuit Breakers with Overcurrent Protection - (RCBOs)

Hager RCBO 1P+N 40A 6kA Curve C 30mA Type A 2 Modules ADA940T

Accessories
Technical properties
Environmental value
Documentations
More products

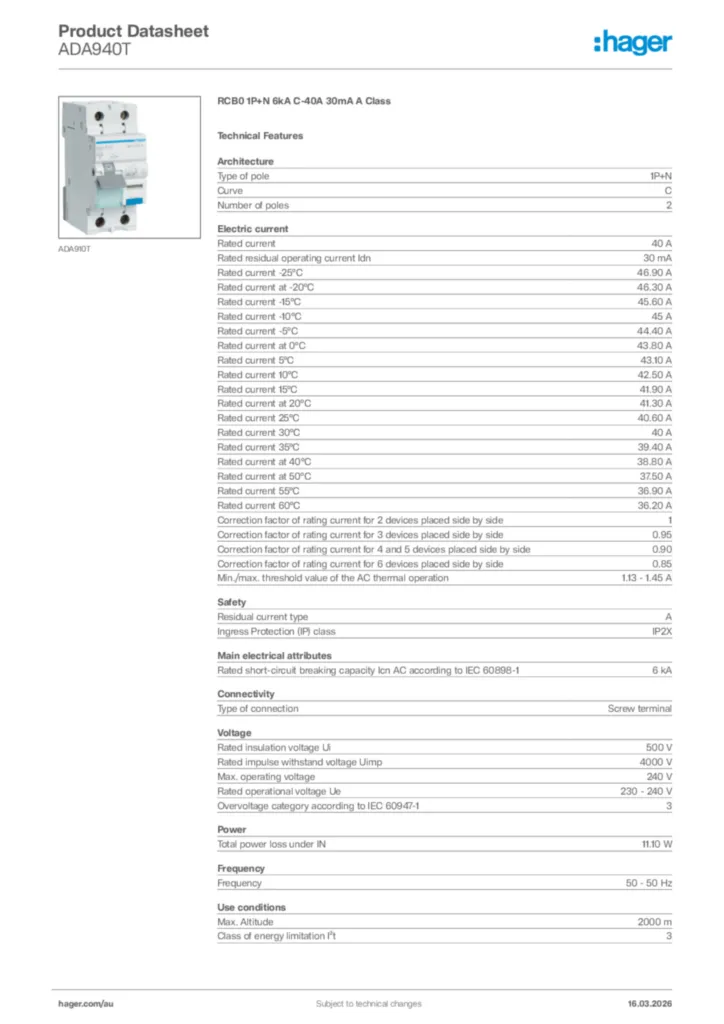

Download the data sheet

Complete your system

Locking interlocking functions 1 products available
Cable terminal connection 3 products available
Protective cap/strip for phase busbar 1 products available
Modular phase busbar 7 products available

Technical properties

Type of pole

1P+N
Curve

C
Number of poles

2

Rated current

40 A
Rated residual operating current Idn

30 mA
Rated current -25°C

46,90 A
Rated current at -20°C

46,30 A
Rated current -15°C

45,60 A
Rated current -10°C

45 A
Rated current -5°C

44,40 A
Rated current at 0°C

43,80 A
Rated current 5°C

43,10 A
Rated current 10°C

42,50 A
Rated current 15°C

41,90 A
Rated current at 20°C

41,30 A
Rated current 25°C

40,60 A
Rated current 30°C

40 A
Rated current 35°C

39,40 A
Rated current at 40°C

38,80 A
Rated current at 50°C

37,50 A
Rated current 55°C

36,90 A
Rated current 60°C

36,20 A
Correction factor of rating current for 2 devices placed side by side

1
Correction factor of rating current for 3 devices placed side by side

0,95
Correction factor of rating current for 4 and 5 devices placed side by side

0,90
Correction factor of rating current for 6 devices placed side by side

0,85
Min./max. threshold value of the AC thermal operation

1,13 - 1,45 A

Residual current type

A
Ingress Protection (IP) class

IP2X

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Type of connection

Screw terminal

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V
Max. operating voltage

240 V
Rated operational voltage Ue

230 - 240 V
Overvoltage category according to IEC 60947-1

3

Total power loss under IN

11,10 W

Frequency

50 - 50 Hz

Max. Altitude

2000 m
Class of energy limitation I²t

3
Operating temperature

-25 - 40 °C
Storage/transport temperature

-25 - 70 °C

Electric endurance in number of cycles

2000
Number of mechanical operations

1000

Cross-section flexible conductor

1 - 16 mm²
Cross-section rigid conductor

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for massive conductors

1 - 25 mm²
Cross-section of output with screws, for flexible conductors

1 - 16 mm²
Cross-section of output with screws, for massive conductors

1 - 25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²
