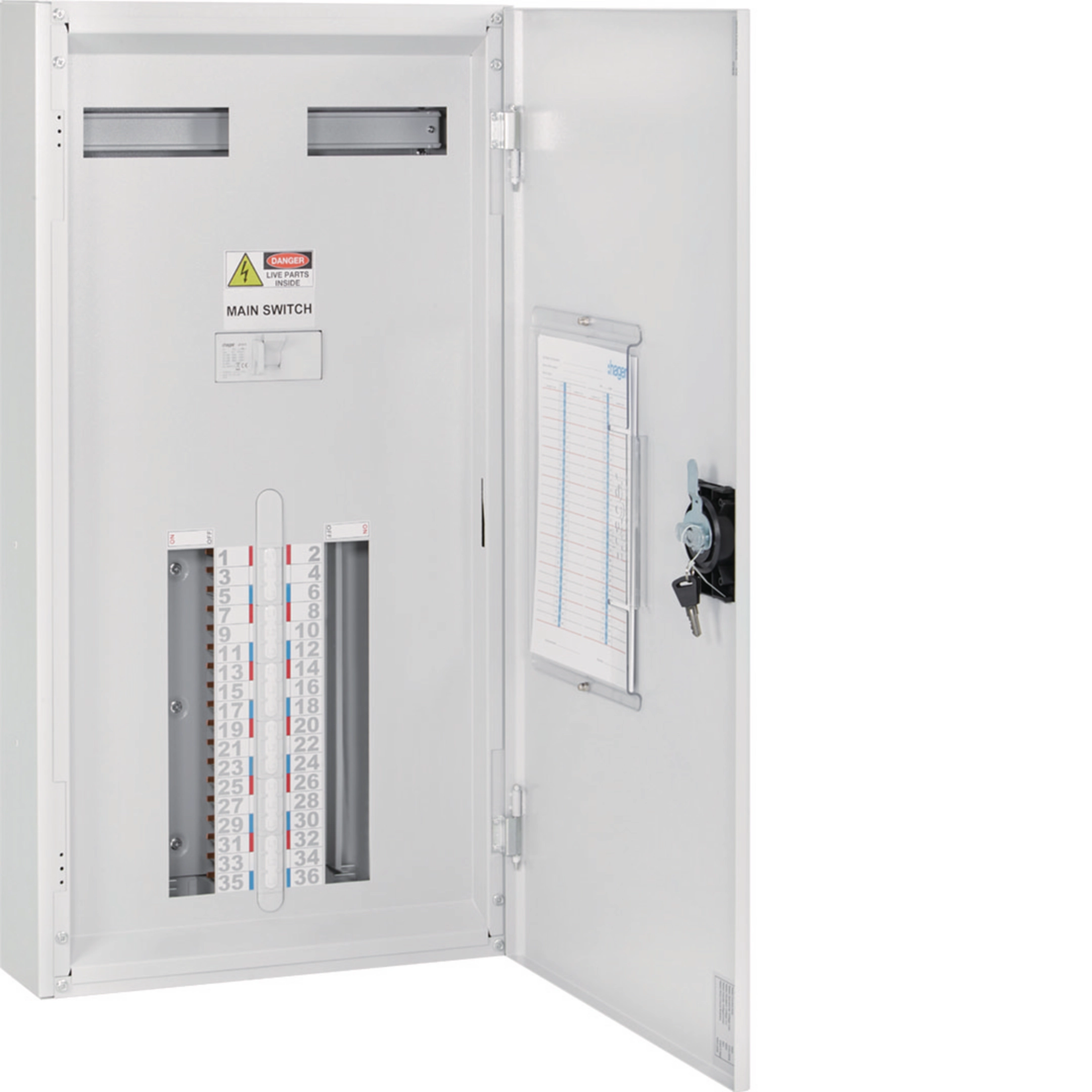

250A TPN board, INVICTA, 36P Chassis, ISO-STD-GR JVC3600S25TW
EAN
3250611002352
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
MCB multi-pole 63 A 6 kA (EN/IEC60898) 61 products available -
RCBO BS electronic type A 6 kA (EN/IEC61009) 19 products available -
Emergency lighting kit 2 products available -
AOB electronic TPN type A 1 products available -
AOB electronic TPN type A 2 products available
-
See more 8 other products available
Complete your system
-
MDN106P
MCB 1P 6kA D-6A 1M
-
MDN110PMCB 1P 6kA D-10A 1M
-
MDN116PMCB 1P 6kA D-16A 1M
-
MDN120PMCB 1P 6kA D-20A 1M
-
MDN125PMCB 1P 6kA D-25A 1M
-
MDN132PMCB 1P 6kA D-32A 1M
-
MDN140PMCB 1P 6kA D-40A 1M
-
MDN150PMCB 1P 6kA D-50A 1M
-
MDN163PMCB 1P 6kA D-63A 1M
-
MDN163RMCB 1P 6kA D-63A 1M
-
MDN206PMCB 2P 6kA D-6A 2M
-
MDN210PMCB 2P 6kA D-10A 2M
-
MDN216PMCB 2P 6kA D-16A 2M
-
MDN220PMCB 2P 6kA D-20A 2M
-
MDN225PMCB 2P 6kA D-25A 2M
-
MDN232PMCB 2P 6kA D-32A 2M
-
MDN240PMCB 2P 6kA D-40A 2M
-
MDN250PMCB 2P 6kA D-50A 2M
-
MDN263PMCB 2P 6kA D-63A 2M
-
MDN263RMCB 2P 6kA D-63A 2M
-
ACC906T
RCBO 1M 1P+N 6kA C-6A 10mA A
-
ACC910TRCBO 1M 1P+N 6kA C-10A 10mA A
-
ACC913TRCBO 1M 1P+N 6kA C-13A 10mA A
-
ACC916TRCBO 1M 1P+N 6kA C-16A 10mA A
-
ACC920TRCBO 1M 1P+N 6kA C-20A 10mA A
-
ACC925TRCBO 1M 1P+N 6kA C-25A 10mA A
-
ACC932TRCBO 1M 1P+N 6kA C-32A 10mA A
-
ADC906TRCBO 1M 1P+N 6kA C-6A 30mA A
-
ADC910TRCBO 1M 1P+N 6kA C-10A 30mA A
-
ADC913TRCBO 1M 1P+N 6kA C-13A 30mA A
-
ADC916TRCBO 1M 1P+N 6kA C-16A 30mA A
-
ADC920TRCBO 1M 1P+N 6kA C-20A 30mA A
-
ADC925TRCBO 1M 1P+N 6kA C-25A 30mA A
-
ADC932TRCBO 1M 1P+N 6kA C-32A 30mA A
-
ADD906TRCBO 1M 1P+N 6kA D-6A 30mA A
-
ADD910TRCBO 1M 1P+N 6kA D-10A 30mA A
-
ADD916TRCBO 1M 1P+N 6kA D-16A 30mA A
-
ADD920TRCBO 1M 1P+N 6kA D-20A 30mA A
-
ADD925TRCBO 1M 1P+N 6kA D-25A 30mA A
Technical properties
Connection
-
Number of accessible phases36
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Rated current250 A
Equipment
-
With lockYes
-
Has mounting plateNo
Capacity
-
Number of modules16
Dimensions
-
Height900 mm
-
Width480 mm
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP30
-
Locking typeKey lock, With lock
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

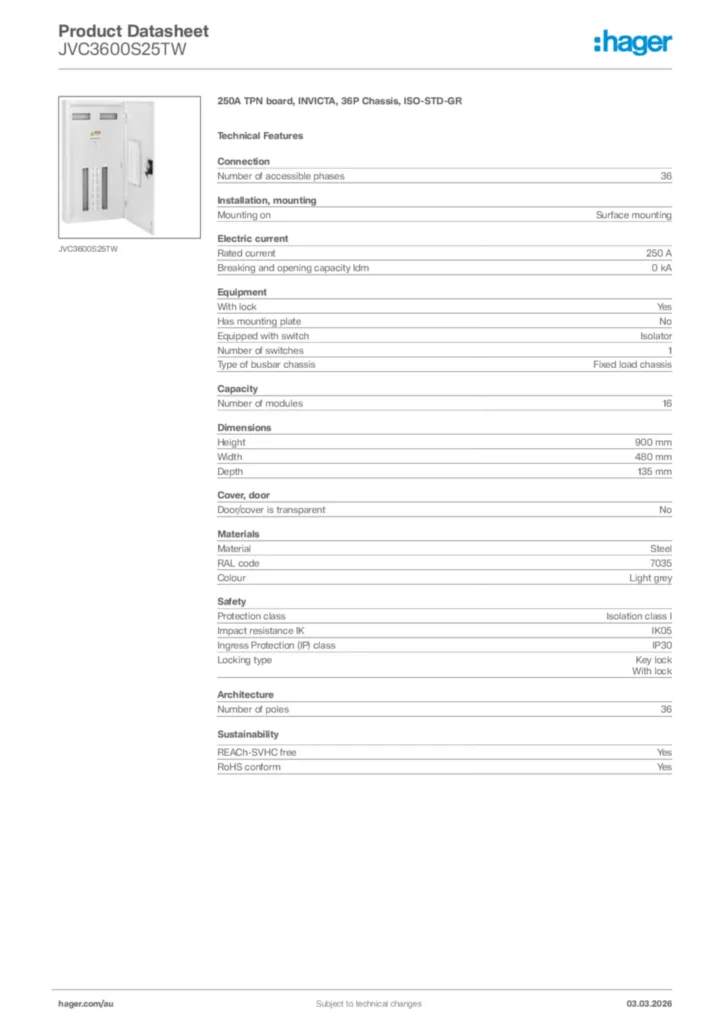

Certifications and documents
