The Hager RCBO 4P 20A C-curve 6kA, 30 mA Type A combines overload, short-circuit and earth-leakage protection for 3-phase or single-phase systems (230-415 V AC). Four modules wide with right neutral, IP2X. Robust performance: Ui 500 V, Uimp 4 kV, I²t class 3. 360° mounting; screw/biconnect terminals for 1-16/25 mm² simplify wiring. Suitable for residential and commercial distribution boards and switchboards. DIN rail mounting for compliant electrical distribution applications.

EAN

3250611033325

Packaging

1 Piece

Residual Current Circuit Breakers with Overcurrent Protection - (RCBOs)

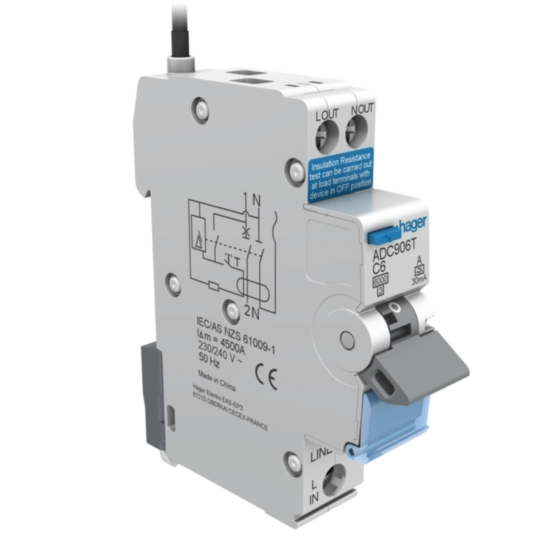

Hager RCBO 1P+N 6A Curve C 6kA 30mA Type A 1 Module ADC906T

Accessories
Technical properties
Environmental value
Documentations
More products

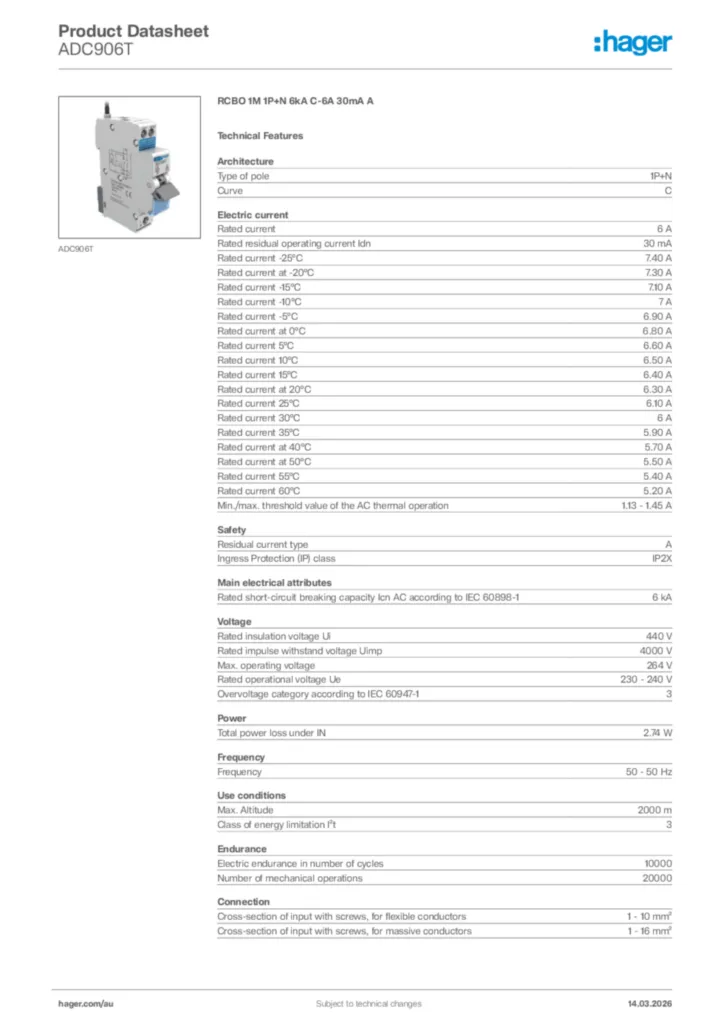

Download the data sheet

Complete your system

Locking interlocking functions 1 products available

Suitable with 10 products available

Technical properties

Type of pole

1P+N
Curve

C

Rated current

6 A
Rated residual operating current Idn

30 mA
Rated current -25°C

7,40 A
Rated current at -20°C

7,30 A
Rated current -15°C

7,10 A
Rated current -10°C

7 A
Rated current -5°C

6,90 A
Rated current at 0°C

6,80 A
Rated current 5°C

6,60 A
Rated current 10°C

6,50 A
Rated current 15°C

6,40 A
Rated current at 20°C

6,30 A
Rated current 25°C

6,10 A
Rated current 30°C

6 A
Rated current 35°C

5,90 A
Rated current at 40°C

5,70 A
Rated current at 50°C

5,50 A
Rated current 55°C

5,40 A
Rated current 60°C

5,20 A
Min./max. threshold value of the AC thermal operation

1,13 - 1,45 A

Residual current type

A
Ingress Protection (IP) class

IP2X

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Rated insulation voltage Ui

440 V
Rated impulse withstand voltage Uimp

4000 V
Max. operating voltage

264 V
Rated operational voltage Ue

230 - 240 V
Overvoltage category according to IEC 60947-1

3

Total power loss under IN

2,74 W

Frequency

50 - 50 Hz

Max. altitude

2000 m
Class of energy limitation I²t

3
Operating temperature

-25 - 70 °C
Storage/transport temperature

-25 - 80 °C

Electric endurance in number of cycles

10000
Number of mechanical operations

20000

Cross-section of input with screws, for flexible conductors

1 - 10 mm²
Cross-section of input with screws, for massive conductors

1 - 16 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 10 mm²
Cross-section of input and output with screws, for massive conductors

1 - 16 mm²
