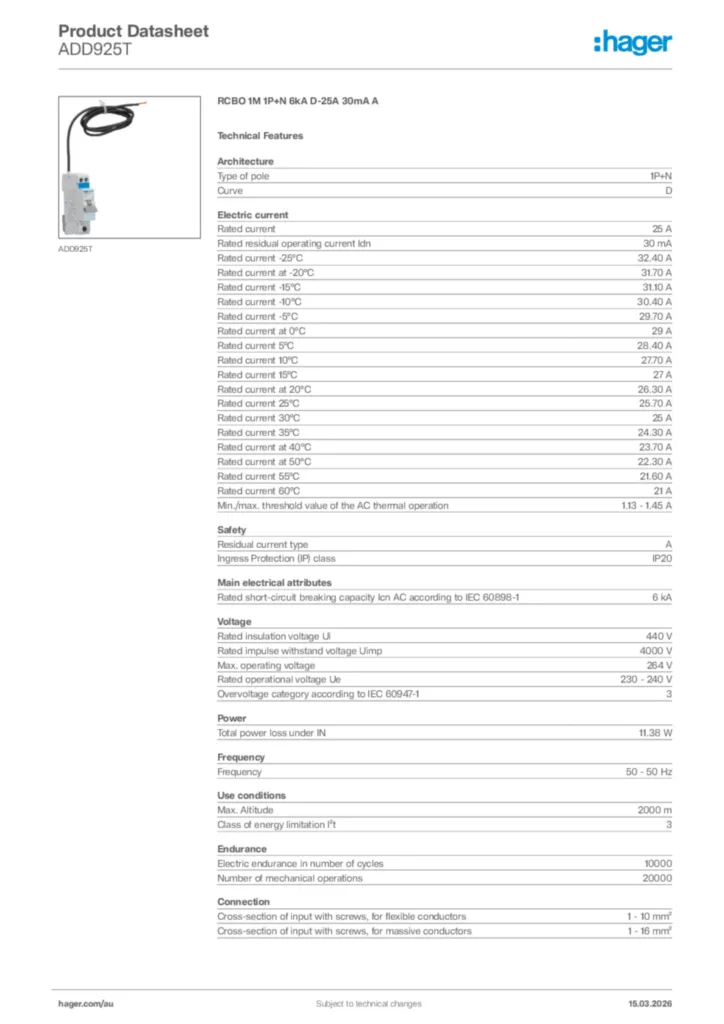

RCBO 1M 1P+N 6kA D-25A 30mA A ADD925T
EAN
3250611033448
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Locking interlocking functions 1 products available
Technical properties
Architecture
-
Type of pole1P+N
-
CurveD
Electric current
-
Rated current25 A
-
Rated residual operating current Idn30 mA
-
Rated current -25°C32,40 A
-
Rated current at -20°C31,70 A
-
Rated current -15°C31,10 A
-
Rated current -10°C30,40 A
-
Rated current -5°C29,70 A
-
Rated current at 0°C29 A
-
Rated current 5°C28,40 A
-
Rated current 10°C27,70 A
-
Rated current 15°C27 A
-
Rated current at 20°C26,30 A
-
Rated current 25°C25,70 A
-
Rated current 30°C25 A
-
Rated current 35°C24,30 A
-
Rated current at 40°C23,70 A
-
Rated current at 50°C22,30 A
-
Rated current 55°C21,60 A
-
Rated current 60°C21 A
-
Min./max. threshold value of the AC thermal operation1,13 - 1,45 A
Safety
-
Residual current typeA
-
Ingress Protection (IP) classIP20
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-16 kA
Voltage
-
Rated insulation voltage Ui440 V
-
Rated impulse withstand voltage Uimp4000 V
-
Max. operating voltage264 V
-
Rated operational voltage Ue230 - 240 V
-
Overvoltage category according to IEC 60947-13
Power
-
Total power loss under IN11,38 W
Frequency
-
Frequency50 - 50 Hz
Use conditions
-
Altitude2000 m
-
Class of energy limitation I²t3
-
Operating temperature-25 - 70 °C
-
Storage/transport temperature-25 - 80 °C
Endurance
-
Electric endurance in number of cycles10000
-
Number of mechanical operations20000
Connection
-
Cross-section of input with screws, for flexible conductors1 - 10 mm²
-
Cross-section of input with screws, for massive conductors1 - 16 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 10 mm²
-
Cross-section of input and output with screws, for massive conductors1 - 16 mm²
Installation, mounting
-
Type of top connection for modular devicesScrew terminal
-
Type of bottom connection for modular devicesbiconnect
Capacity
-
Number of modules1
Dimensions
-
Height85 mm
-
Width17,70 mm
-
Depth70 mm
Compatibility
-
Suitable for DIN RailYes
Environmental value
