Hager RCBO 1M 1P+N C-25A 6kA Type A 10 mA combines MCB and RCD to protect against overloads, short circuits and highly sensitive earth leakage. 25 A, 230-240 V, 50 Hz, Icn 6 kA, Ui 440 V, Uimp 4 kV. Compact 1-module, DIN-rail, IP20, biconnect bottom/screw top terminals. Ideal for residential and light commercial circuits with higher shock risk (bathrooms, outdoor); C-curve suits mixed loads.

EAN

3250611033301

Packaging

1 Piece

Residual Current Circuit Breakers with Overcurrent Protection - (RCBOs)

RCBO 1P+N 25A C-curve 6kA Type A 10mA 1 Module ACC925T

Accessories
Technical properties
Environmental value
Documentations
More products

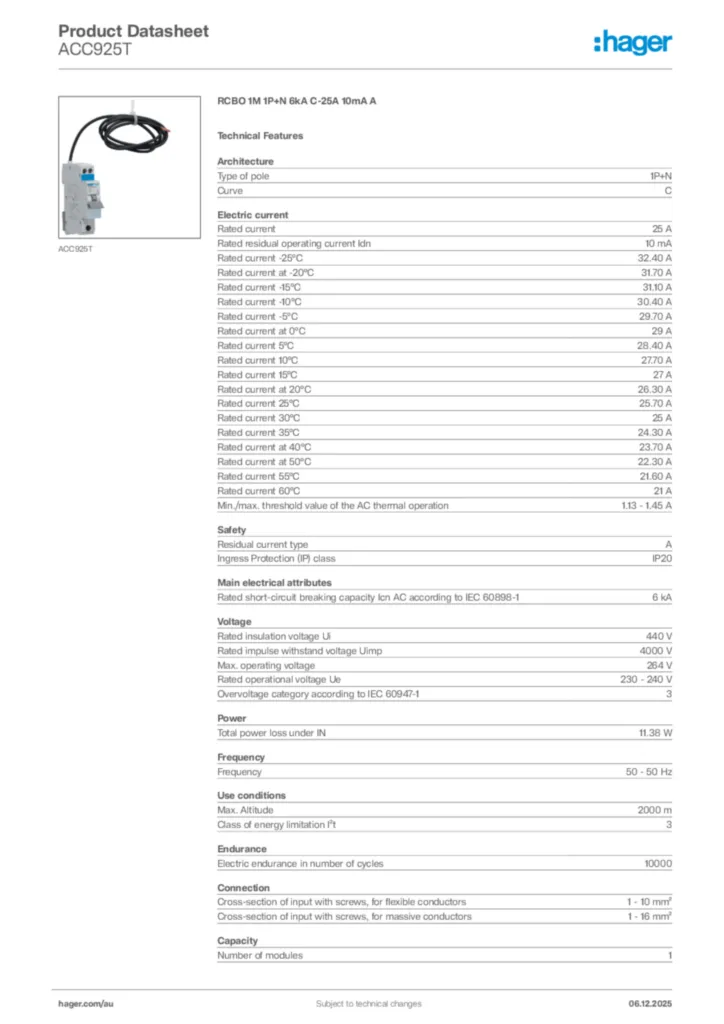

Download the data sheet

Complete your system

Locking interlocking functions 1 products available

Suitable with 10 products available

Technical properties

Type of pole

1P+N
Curve

C

Rated current

25 A
Rated residual operating current Idn

10 mA
Rated current -25°C

32,40 A
Rated current at -20°C

31,70 A
Rated current -15°C

31,10 A
Rated current -10°C

30,40 A
Rated current -5°C

29,70 A
Rated current at 0°C

29 A
Rated current 5°C

28,40 A
Rated current 10°C

27,70 A
Rated current 15°C

27 A
Rated current at 20°C

26,30 A
Rated current 25°C

25,70 A
Rated current 30°C

25 A
Rated current 35°C

24,30 A
Rated current at 40°C

23,70 A
Rated current at 50°C

22,30 A
Rated current 55°C

21,60 A
Rated current 60°C

21 A
Min./max. threshold value of the AC thermal operation

1,13 - 1,45 A

Residual current type

A
Ingress Protection (IP) class

IP20

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Rated insulation voltage Ui

440 V
Rated impulse withstand voltage Uimp

4000 V
Max. operating voltage

264 V
Rated operational voltage Ue

230 - 240 V
Overvoltage category according to IEC 60947-1

3

Total power loss under IN

11,38 W

Frequency

50 - 50 Hz

Max. altitude

2000 m
Class of energy limitation I²t

3
Operating temperature

-25 - 70 °C
Storage/transport temperature

-25 - 80 °C

Electric endurance in number of cycles

10000

Cross-section of input with screws, for flexible conductors

1 - 10 mm²
Cross-section of input with screws, for massive conductors

1 - 16 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 10 mm²
Cross-section of input and output with screws, for massive conductors

1 - 16 mm²
